部件名	TM5SAO2L

功能描述	Analog output module, Modicon TM5, 2O, /-10 V/0 to 20mA, 12bits

PDF	7 Pages

Scroll/Zoom	100%

制造商	SCHNEIDER [Schneider Electric]

网页	https://www.se.com/us/en/

标志

1 / 7 page

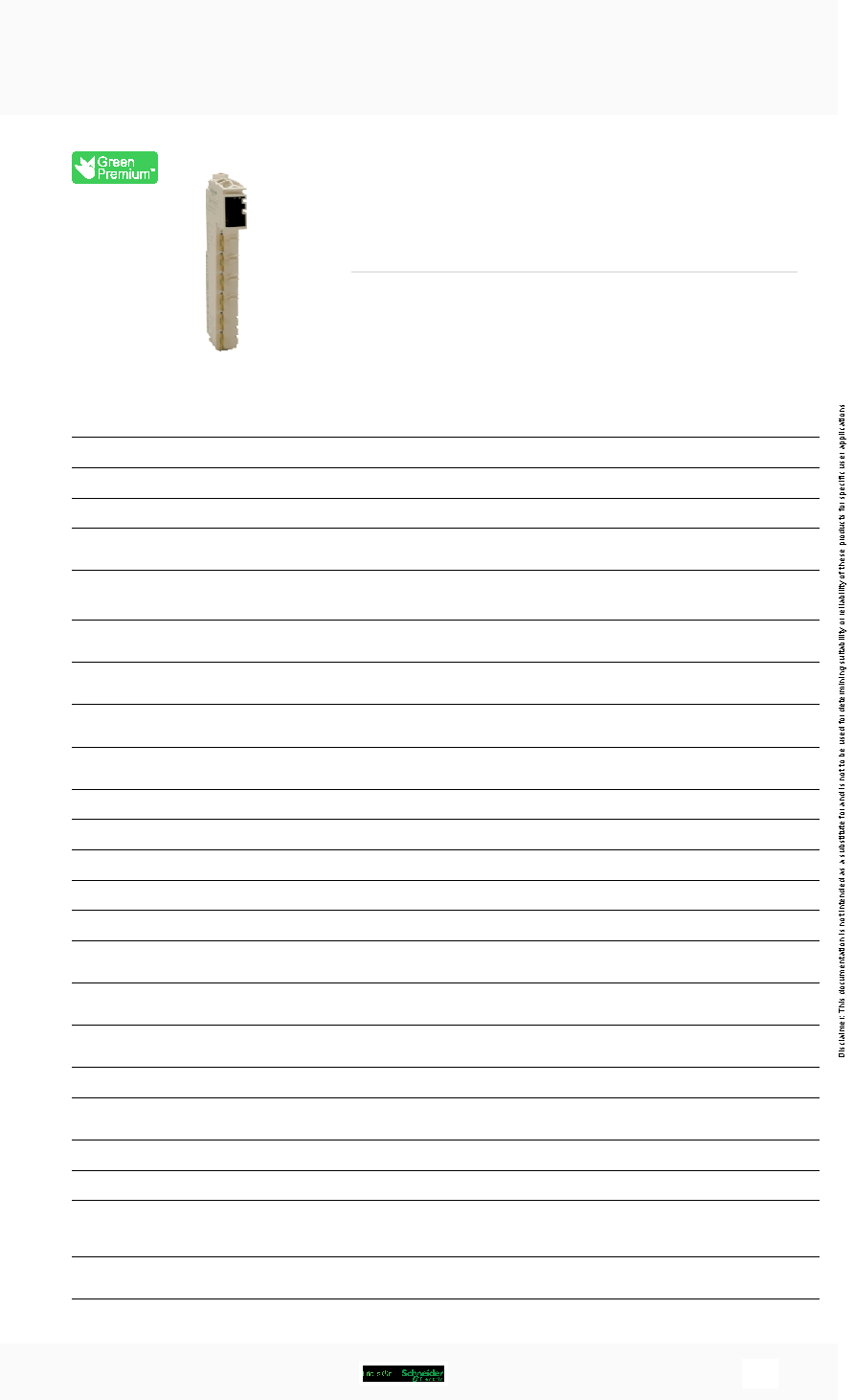

Product data sheet

Specifications

Analog output module, Modicon

TM5, 2O, +/-10 V/0 to 20mA, 12bits

TM5SAO2L

Main

Range of product

Modicon TM5

Product or component type

Analog output module

Analogue output number

2

Analogue output resolution

12 bits + sign, +/- 10 V

12 bits, 0...20 mA

Complementary

Range compatibility

Modicon LMC058

Modicon M258

Product compatibility

Motion controller

Logic controller

Analogue output type

Current 0...20 mA

Voltage +/- 10 V

Measurement resolution

4.882 mV, +/- 10 V

9.766 µA, 0...20 mA

Colour

White

Response time

<= 1 ms

Minimum output impedance

1 Ohm

Load impedance ohmic

<= 500 Ohm (current)

Sampling duration

200 µs

Measurement error

< 0.15 % of full scale +/- 10 V at 25 °C

< 0.15 % of full scale 0...20 mA at 25 °C

Temperature coeﬃcient

0.02 %FS/°C, analogue output type: current

0.02 %FS/°C, analogue output type: voltage

Non-linearity

< 0.007 %FS, analogue output type: current

< 0.007 %FS, analogue output type: voltage

Type of cable

Shielded cable

Isolation

500 Vrms AC insulation between channel and bus

No insulation between channels

Supply

Internal

[Us] rated supply voltage

24 V DC -15...20 %

Local signalling

1 LED green for power supply

1 LED red for power supply

2 LEDs yellow for output status

Current consumption

2 mA at 5 V DC bus

46 mA at 24 V DC input/output

Apr 6, 2022

1
