Product data sheet

Specifications

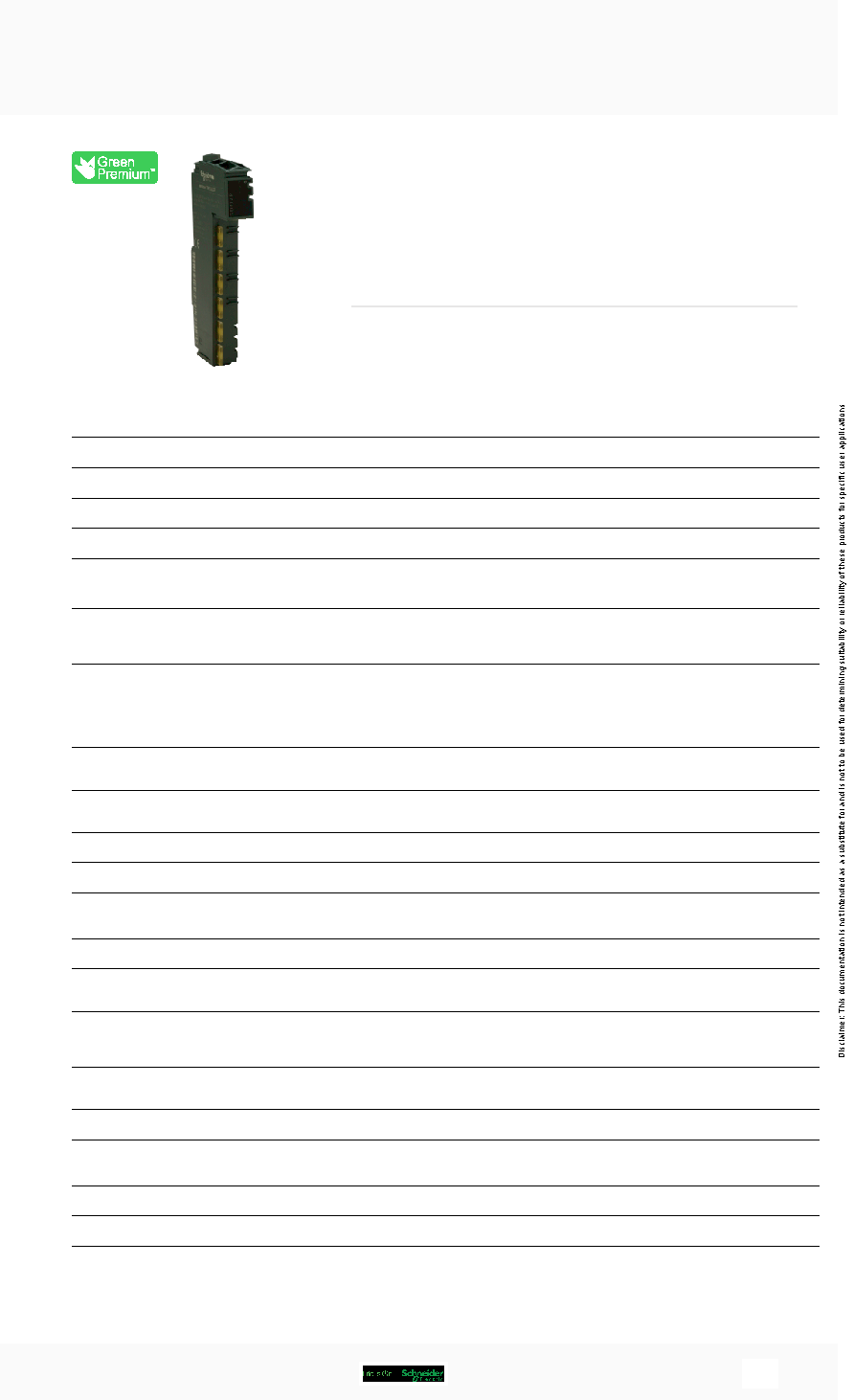

Discrete output module, Modicon

TM5, digital 2O, 30 V DC/230 V AC,

5 A, relay, 2 C/O

TM5SDO2R

Main

Range of product

Modicon TM5

Product or component type

Discrete output module

Discrete output number

2

Discrete output type

Relay

Complementary

Range compatibility

PacDrive LMC motion controller

Modicon LMC058

Modicon M258

Product compatibility

Logic controller

PacDrive LMC Pro

Motion controller

PacDrive LMC Pro 2

PacDrive LMC Eco

Output voltage

230 V AC

30 V DC

Output voltage limits

184...276 V AC

24...36 V DC

Discrete output function

2 C/O

Current per channel

5 A

Maximum current per output

common

10 A

Colour

Black

Response time

<= 10 ms from state 0 to state 1 for output

<= 10 ms from state 1 to state 0 for output

Protection type

Reverse polarity protection

Without overload protection

Without short-circuit protection

Isolation

No insulation between channels

500 Vrms AC insulation between channel and bus

Current consumption

90 mA at 5 V DC bus

Maximum power dissipation in

W

2.45 W

Marking

CE

Net weight

0.025 kg

Apr 6, 2022
