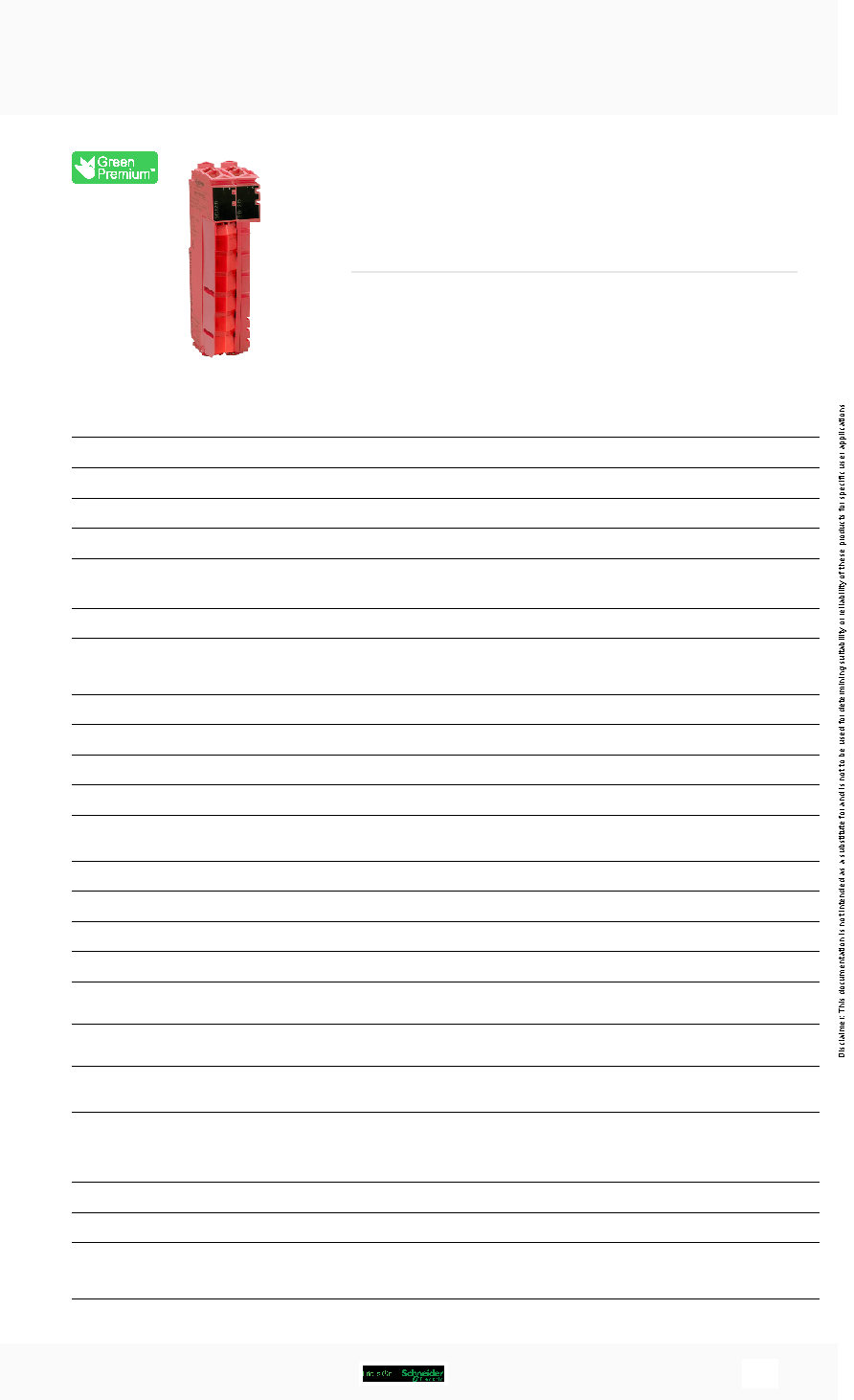

Product data sheet

Specifications

Safety dc discrete output module,

Modicon TM5, digital 2O, 24V 2 A

TM5SDO2TAFS

Main

Range of product

Modicon TM5

Product or component type

Safety dc discrete output module

Discrete output number

2

Discrete output type

Solid state

Complementary

Range compatibility

PacDrive LMC motion controller

Product compatibility

PacDrive LMC Pro 2

PacDrive LMC Pro

PacDrive LMC Eco

Output voltage

24 V DC

Output voltage limits

20.4...28.8 V

Discrete output logic

Source

Current per channel

2 A

Maximum current per output

common

4 A

Colour

Red

Peak output current

12 A

Switching frequency

<= 500 Hz resistive load

Maximum leakage current

10 µA when switched off

Protection type

Overload protection

Short-circuit protection

Isolation

500 Vrms AC insulation between channel and bus

No insulation between channels

Maximum power consumption in

W

0.25 W for bus

0.98 W for internal

Local signalling

1 LED green for power supply

1 LED red for power supply

2 LEDs red for safety status

2 LEDs red/orange for output status

Electrical connection

2 wires

Marking

CE

Safety level

SIL 3 conforming to IEC 61508

SIL 3 conforming to IEC 62061

PL = e conforming to EN 13849-1

Apr 8, 2022

1
