AV2001

TO-92 Plastic-Encapsulate Transistors

AV2001

TRANSISTOR（NPN ）

FEATURES

Power dissipation

PCM :

0.6

W

（Tamb=25℃）

Collector current

ICM

:

0.7

A

Collector-base voltage

V(BR)CBO : 30

V

Operating and storage junction temperature range

TJ，Tstg: -55℃ to +150℃

ELECTRICAL

CHARACTERISTICS（Tamb=25℃

unless

otherwise

specified）

Parameter

Symbol

Test

conditions

MIN

MAX

UNIT

Collector-base breakdown voltage

V(BR)CBO

Ic=1００µA ， IE=0

30

V

Collector-emitter breakdown voltage

V(BR)CEO

IC=10mA ,

IB=0

25

V

Emitter-base breakdown voltage

V(BR)EBO

IE=100µA， IC=0

5

　　V

Collector cut-off current

ICBO

VCB=30 V ,

IE=0

0.1

µA

Collector cut-off current

ICEO

VCE=20 V ,

IB=0

0.1

µA

Emitter cut-off current

IEBO

VEB=5 V ,

IC=0

0.1

µA

DC current gain

hFE

VCE=1V,

IC=100m A

90

400

Collector-emitter saturation voltage

VCE(sat)

IC=700mA, IB= 70m A

0.6

V

Base-emitter saturation voltage

VBE(sat)

IC= 700mA, IB=70mA

1.2

V

Transition frequency

f T

VCE=6V, IC= 10mA

f = 30MHz

50

MHz

CLASSIFICATION OF hFE

Rank

M

L

K

Range

90-180

135-270

200-400

1 2 3

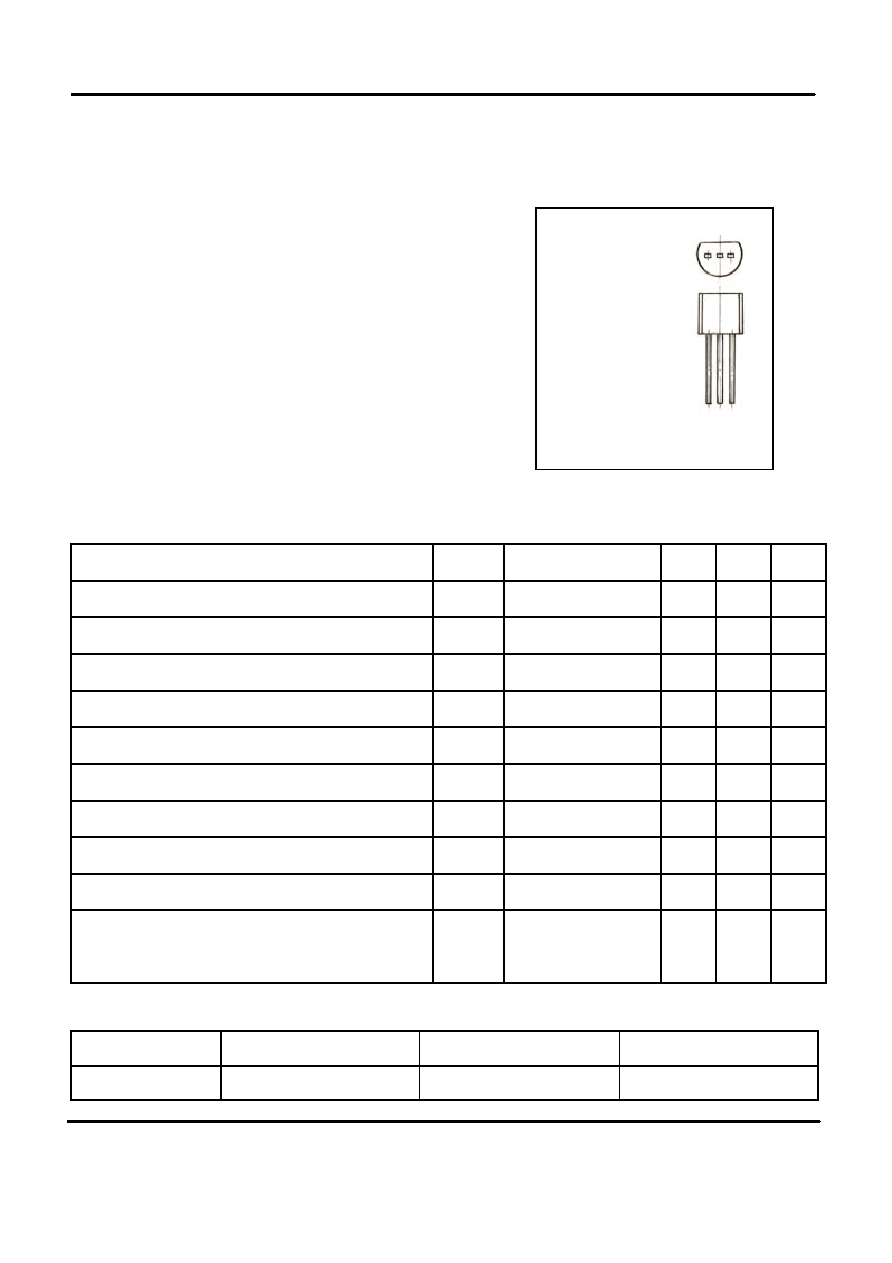

TO—92

1. EMITTER

2. COLLECTOR

3. BASE
