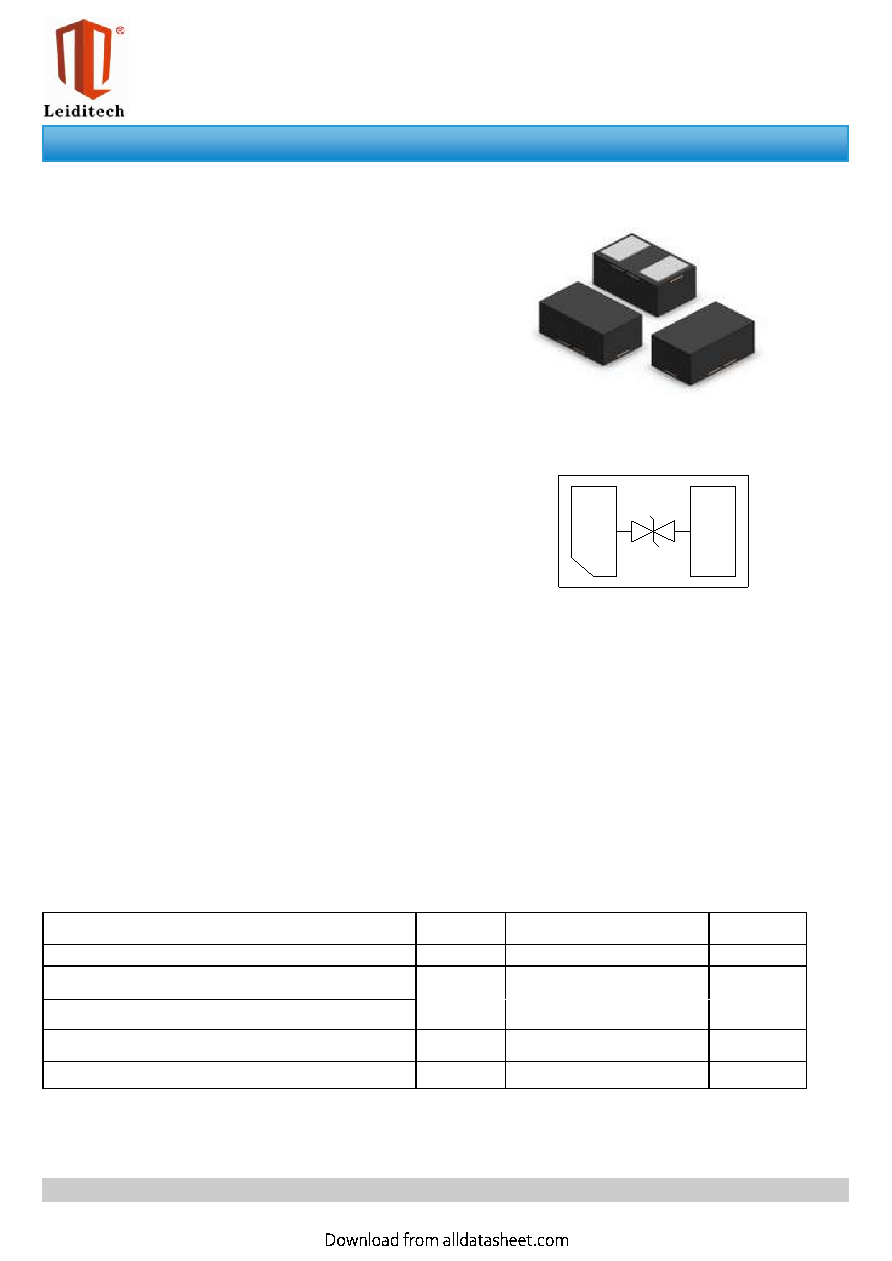

ULC1811CDN

Features

Applications

Dimensions DFN1006

Mechanical Characteristics

Absolute Maximum Ratings(Tamb=25°C unless otherwise specified)

Parameter

Symbol

Value

Unit

Peak Pulse Power (8/20µs)

Ppp

80

W

ESD per IEC 61000−4−2 (Air)

VESD

± 25

Kv

ESD per IEC 61000−4−2 (Contact)

± 15

Operating Temperature Range

TJ

-55 to +125

℃

Storage Temperature Range

TSTJ

-55 to +150

℃

Rev 2.0 :

www.leiditech.com

12.01.2019

1/4

1-Line Ultra Low Capacitance Bi-directional TVS Diode

Pin Configuration

 Ultra small package: 1.0x0.6x0.5mm

 Ultra low capacitance: 0.3pF typical

 Ultra low leakage: nA level

 Operating voltage: 18V

 Low clamping voltage

 2-pin leadless package

 Complies with following standards:

IEC 61000-4-2 (ESD) immunity test

Air discharge: ±25kV

Contact discharge: ±15kV

 RoHS Compliant

 Antenna

 Cellular Handsets and Accessories

 Display Ports

 Digital Visual Interface (DVI)

 PCI Express and Serial SATA Ports

 Digital Camera

 Package: DFN1006-2 (1.0×0.6×0.5mm)

 Lead Finish: NiPdAu

 Case Material: “Green” Molding Compound.

 Moisture Sensitivity: Level 3 per J-STD-020

 Quantity Per Reel : 10,000pcs

 Reel Size: 7 inch

 Device Marking: R18

1

2
