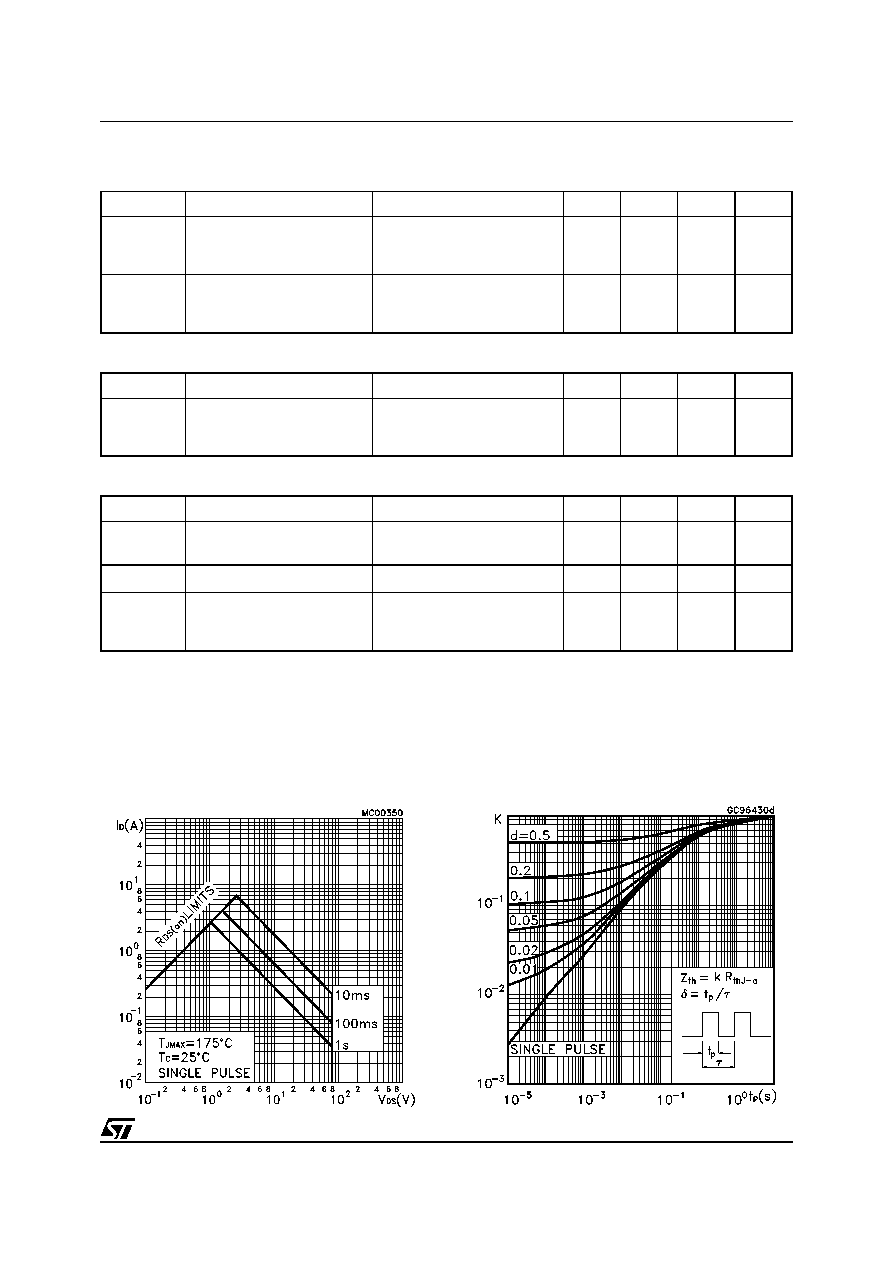

background image
3/9
STS2DPF80
TAB.5 SWITCHING ON
TAB.6 SWITCHING OFF
TAB.7 SOURCE DRAIN DIODE
(*)Pulsed: Pulse duration = 300 µs, duty cycle 1.5 %.
(
•)Pulse width limited by safe operating area.
Symbol
Parameter
Test Conditions
Min.
Typ.
Max.
Unit
td(on)
tr
Turn-on Delay Time
Rise Time
VDD = 40 V
ID = 1 A
RG =4.7
Ω
VGS = 10 V
(Resistive Load, Figure 1)
13.5
18
ns
ns
Qg
Qgs
Qgd
Total Gate Charge
Gate-Source Charge
Gate-Drain Charge
VDD= 64V ID= 2A VGS=10V
(See test circuit, Figure 2)
20
2.5
4.9
nC
nC
nC
Symbol
Parameter
Test Conditions
Min.
Typ.
Max.
Unit
td(off)
tf
Turn-off Delay Time
Fall Time
VDD = 40 V
ID = 1 A
RG =4.7
Ω,
VGS = 10 V
(Resistive Load, Figure 1)
32
13
ns
ns
Symbol
Parameter
Test Conditions
Min.
Typ.
Max.
Unit
ISD
ISDM (
•)
Source-drain Current
Source-drain Current (pulsed)
2.3
9.2
A
A
VSD (*)
Forward On Voltage
ISD = 1 A
VGS = 0
1.2
V
trr
Qrr
IRRM
Reverse Recovery Time
Reverse Recovery Charge
Reverse Recovery Current
ISD = 2 A
di/dt = 100A/µs
VDD = 40 V
Tj = 150°C
(See test circuit, Figure 3)
47
87
3.7
ns
nC
A
ELECTRICAL CHARACTERISTICS (continued)
Safe Operating Area
Thermal Impedance
