H

H–24

Dimensions are shown: Inch (mm)

Specifications and dimensions subject to change

www.ckswitches.com

Specifications

SWITCH FUNCTION: 1 thru 10 and 12 position available.

CONTACT RATING: 100 mA max. @ 5 V DC or 25 mA max.

@ 24 V DC.

MECHANICAL AND ELECTRICAL LIFE: 1,000 cycles min.

@ 5 V DC 10mA.

CONTACT RESISTANCE: 50 milliohms initial max.

INSULATION RESISTANCE: 100 V DC 100 megohms min.

DIELECTRIC WITHSTAND VOLTAGE: 300 V AC for 1 minute.

STORAGE TEMPERATURE: -40°C to 85°C.

OPERATING TEMPERATURE: -20°C to 85°C.

OPERATING FORCE: 800 grams max.

SOLDERABILITY: Flow solderable and washable

(soldering: 260°C for 10 sec. max.)

PACKAGING: Switches supplied in rigid dispensing tubes in full-

tube quantities only, this may affect order quantity. Numbers

of switches per tube varies with model. Tape and reel

packaging available for SMT options.

Materials

HOUSING: PPS, color black (UL94V-0).

COVER: PPS, color black (UL94V-0).

ACTUATOR: PA-6T (UL94V-0).

CONTACTS: Beryllium Copper with Gold over Nickel plate.

TERMINALS: Brass, Gold over Nickel plate.

Note: Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

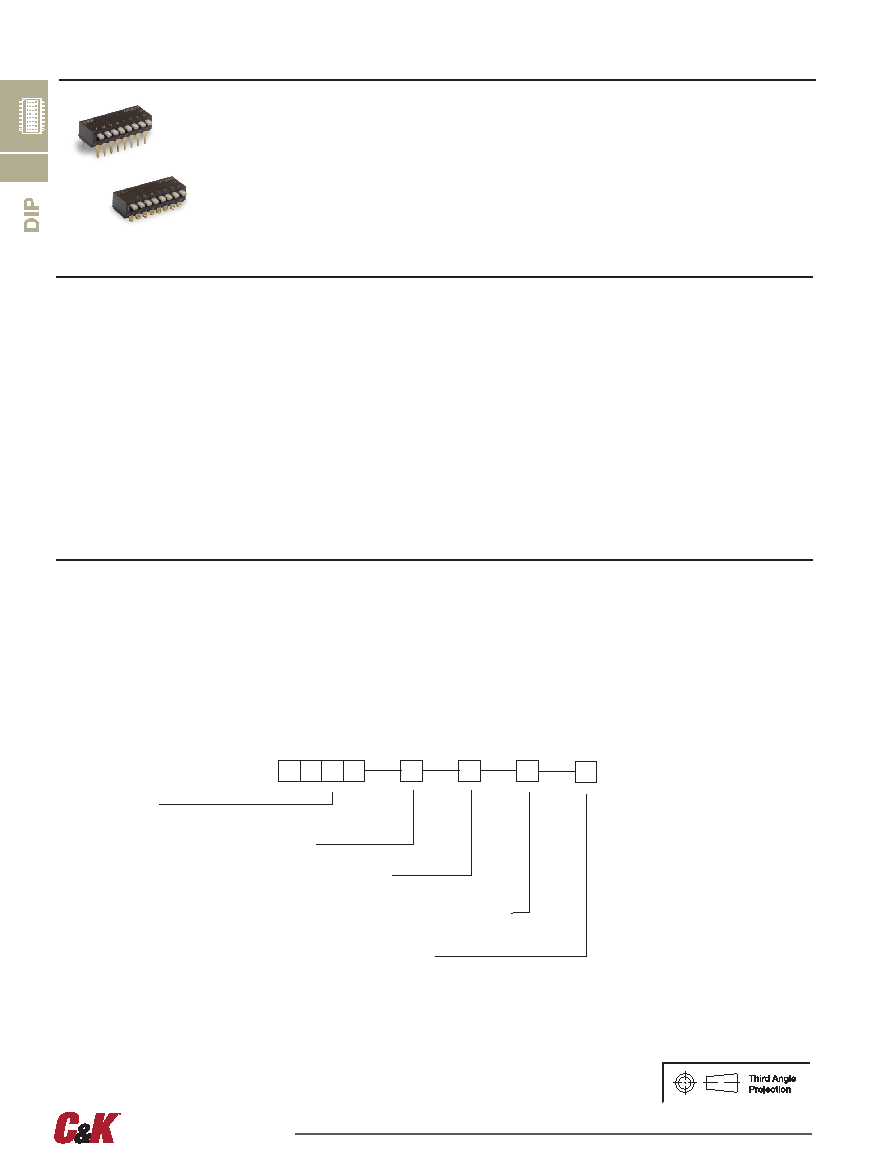

BPA Series

Side Actuated DIP Switches

Features/Benefits

• Side actuated contacts

• Available in thru-hole or

SMT models

• High pressure contact system does

not require tape seal for washing

• RoHS compliant & compatible

Typical Applications

• Address switch for industrial controls

• Logic switching for computers and

peripherals

• Function controlling for numerous

applications

Model

BPA01 1 position

BPA02 2 positions

BPA03 3 positions

BPA04 4 positions

BPA05 5 positions

BPA06 6 positions

BPA07 7 positions

BPA08 8 positions

BPA09 9 positions

BPA10 10 positions

BPA12 12 positions

On Position

NONE Down

R

Up

Terminations

NONE PC

S Gull wing

Packaging

NONE Tube

R Tape and Reel (Surface Mount only)

BP A

B

Contact material

B BeCu, Gold over nickel plate

How To Order

The Build-A Switch concept allows you to mix and match options to create the switch you need. Below is a complete

listing of options shown in catalog. To order, simply select desired option from each category and place in the appropriate

box.

All switches supplied in “OFF” position.

13 feb 19
