J

J–10

Dimensions are shown: mm

Specifications and dimensions subject to change

www.ckswitches.com

27 Jan 22

ZMT Series

Mini Size Sealed Snap-acting Switches

Features/Benefits

• IP67 rating / Dust tight protection

• From 0.1A to 5A max. (ultra-low

current available)

• Excellent sealed solution for

modules mechanisms in Automotive

and Medical applications

• UL / ENEC

Typical Applications

• Automotive: door latch,

seat position detection, EV

charging

• Handheld devices

(medical)

• Industrial equipment

• Consumer electronics

Specifications

CONTACT RATING: 0.1A 125/250VAC 3A 24VDC

3A 125/250VAC 3A 24VDC

5A 125/250 VAC 3A 24VDC

ELECTRICAL LIFE: 10,000 cycles

ELECTRICAL OPERATING FREQUENCY: 10-30 operations per

minute

MECHANICAL LIFE: 1,000,000 operations

MECHANICAL OPERATING FREQUENCY: 120 operations per

minute

INSULATION RESISTANCE: Min. 100 MΩ ( 500 VDC/minute )

between Live-parts and dead metal parts

DIELECTRIC STRENGTH:

500VAC (50-60HZ)/minute between contacts

1500VAC (50-60HZ)/minute between Live-parts and dead

metal parts

OPERATING TEMPERATURE: –40ºC to 85ºC (with no icing)

OPERATING FORCE: 200 grams

Materials

CASE: PBT

COVER: PBT

BUTTON: PBT

MOVABLE CONTACTS: AG alloy

TERMINALS: AG alloy

LEVER: Stainless steel

WIRE: PVC+CU

LOWE CASE: Nylon

RUBBER SEAL: Silicon

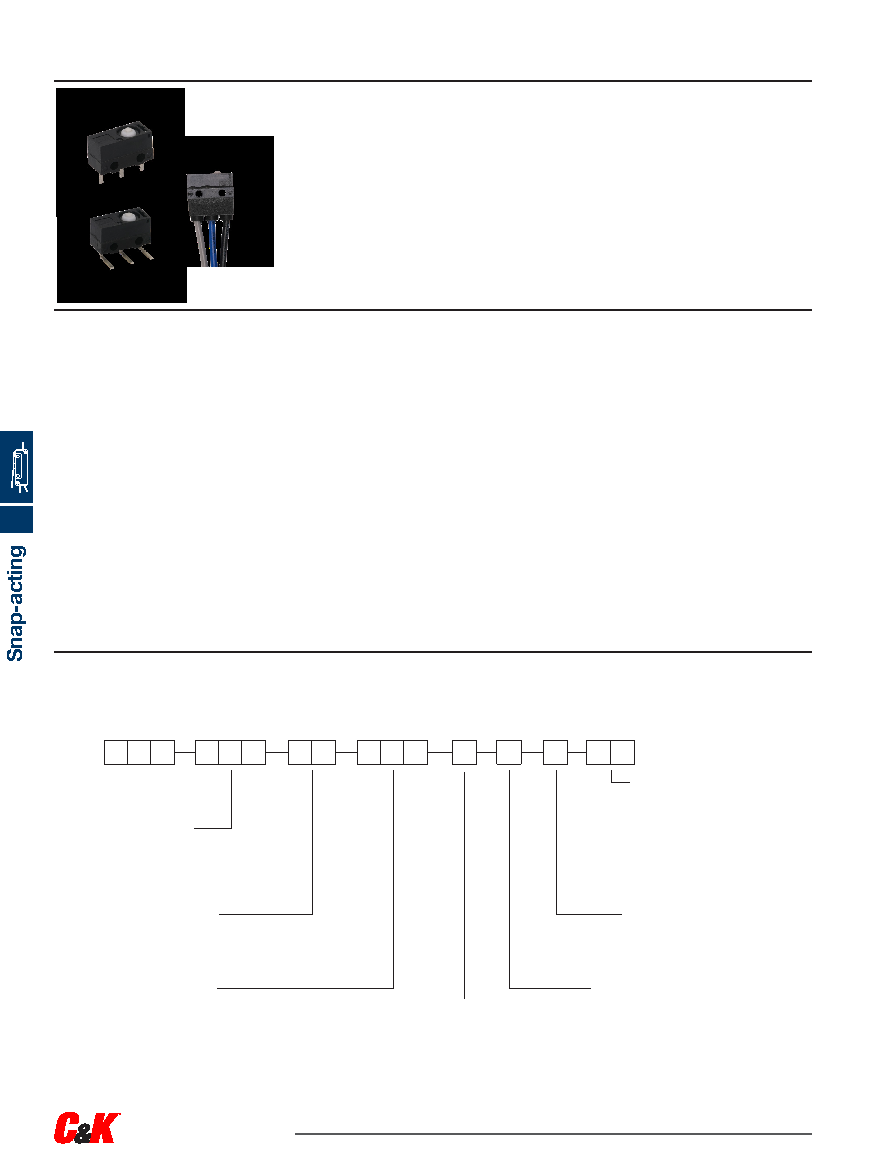

Build-A-Switch

Our easy build-a-switch concept allows you to mix and mtach options to create the switch you need. To order, select desired

option from each category and place it in the appropriate box.

Circuitry

C

SPDT

W

SPST N.C.

Y

SPST N.O.

Electrical Rating

01A 0.1A 125/250VAC (Contact silver plated)

03A 3A 125/250VAC (Contact silver plated)

05A 5A 125/250VAC (Contact silver plated)

G03 3A 125/250VAC (Contact gold plated)

Actuator Type

P00 Pin plunger

L03 Leaf lever 3.2 mm

F01 Leaf lever (fold) 1.1 mm

S02 Simulated leaf roller 1.9 mm

S05 Simulated leaf roller 5.0 mm

S06 Simulated leaf roller 5.8 mm

A01 Roller 0.2 mm

H03 Hinged lever 3.2 mm

R05 Hinged simulated leaf roller 5.0 mm

Terminations

P PC thru-hole

S Solder

L Left-footed, PC thru-hole

R Right-footed, PC thru-hole

J Wire leads out bottom

K Wire leads out right side

W Wire leads out left side

Z M

Cover & Case Type

E E type

T

E

NEW

Operating Force

CF Refer to force table (P00 = 100 gf)

CJ

Refer to force table (P00 = 170 gf)

Wire Type for J, K, W

Terminations

NONE AVSS 0.3 mm2

(No UL, No ENEC)

20 UL1007 20 AWG

22 UL1007 22 AWG

24 UL1007 24 AWG
