INFRASTRUCTURE ANTENNAS

PCTEL, Inc. WEB: www.antenna.com

RoHS

COMPLIANT

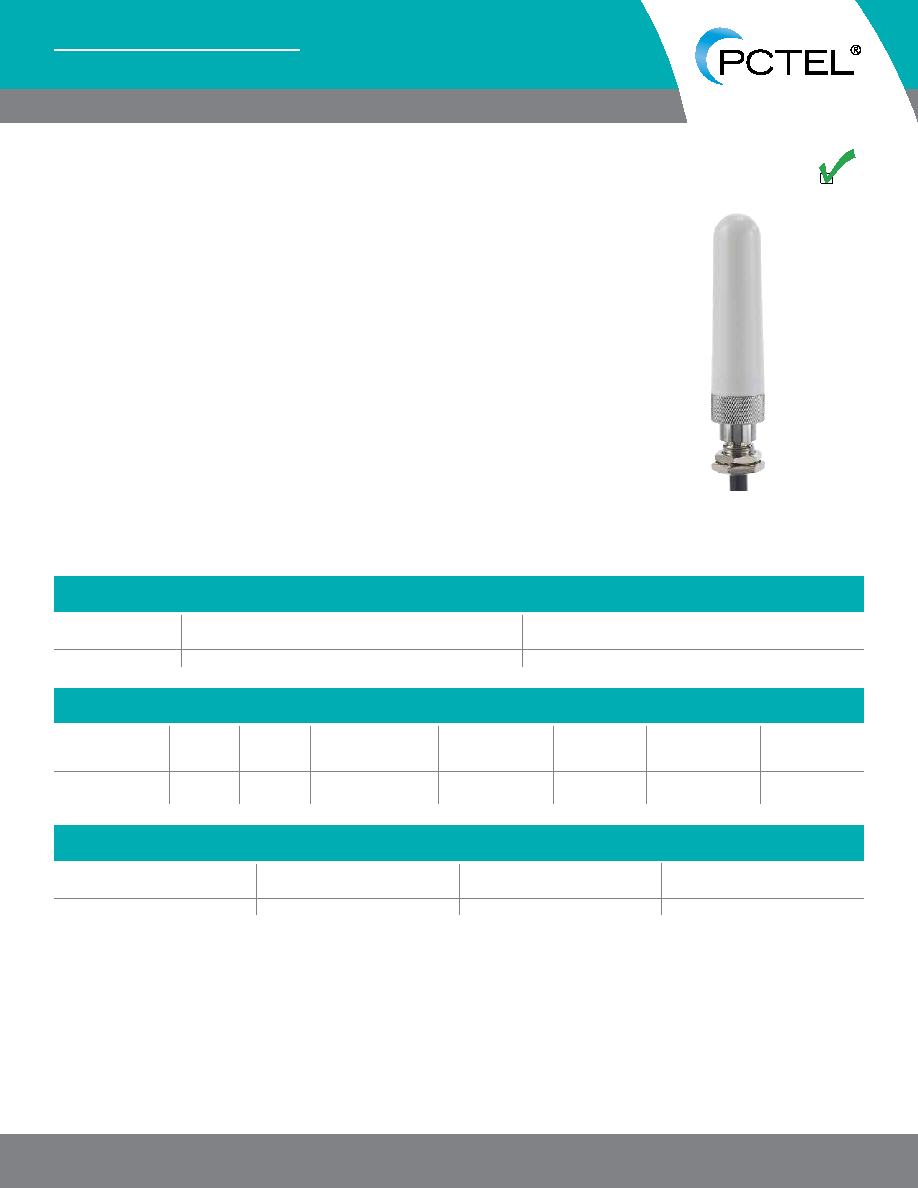

The PCTMI2458-RPC is a low-profile antenna that is optimized for operation with

reverse polarity TNC compatible broadband wireless MIMO (802.11ac) access points

operating at 2.4 GHz and 5 GHz frequencies. The rugged, UV-resistant housing

makes it suitable for use in a wide variety of IIoT applications, including office LAN

environments, factory floors, and outdoor Wi-Fi networks.

Features

•

Omnidirectional antenna for indoor or outdoor operation

•

Outstanding performance in a very low-profile housing

•

White UL94 V0 plastic housing

•

Built directly on an RPTNC plug connector

•

No more than 3.26 inches long including the connector

Low-Profile Access Point Antenna for

Broadband Wireless

PCTMI2458-RPC

Access Point Low-Profile Antenna, Dual-Band 802.11ac

ELECTRICAL SPECIFICATIONS - RF ANTENNA

Frequency Range

Gain

VSWR

3 dB Azimuth Half

Power Beamwidth

3 dB Elevation

Half Power

Beamwidth

Average

Power

Nominal

Impedance

Polarization

2.4-2.5 GHz

5.15-5.92 GHz

3 dBi

5 dBi

< 2.0:1

@ 2.4 GHz: 360°

@ 5 GHz: 360°

@ 2.4 GHz: 62°

@ 5 GHz: 35°

5 watts

50 ohms

Vertical, linear

STANDARD CONFIGURATION

Model

Connector

Mount

PCTMI2458-RPC

Reverse Polarity TNC

Direct Access Point Mount

PCTMI2458-RPC

MECHANICAL & ENVIRONMENTAL SPECIFICATIONS

Dimensions

Housing Material

Temperature Range

Ingress Protection

3.26 L x 0.77 OD in (8.28 x 1.95 cm)

PC, White UL94 V0 Plastic

-30°C to +70°C

IPX7
