ARK-3405

Packing List

Part Number

Description

-

1 x China RoHS for ARK-3405

-

1 x User Manual (Simplified Chinese)

2190000902

1 x CARDBOARD-WARRANTY

1652003234

1 x 4-pin PLUG-IN BLOCK

1990021361N000

2 x HDD Thermal-Pad

1960069484N000

2 x LAN Clip Bracket

1960073853N001

2 x Mounting Bracket

1990027474N000

1 x CPU Thermal-Pad

9680015173

1 x L type Wrench for top cover

Option Item Information

Part Number

Description

AMO-R019E

2x PCIex1 riser card

AMO-R020E

1x PCI + 1x PCIex1 riser card

96PSA-A84W12P4

AC to DC Adaptor, DC12V/7A, 84W, 0 ~ 40° C

1702002600

Power Cord, 3-Pin 183cm, USA type

1702002605

Power Cord, 3-Pin 183cm, EU type

1702031801

Power Cord, 3-Pin 183cm, UK type

1700000237

Power Cord, 3-Pin 183cm, PSE type

Embedded OS

Part Number

Description

2070014220

WES7E 64bit ENG/CHT/CHS/JPN

2070014248

WES8.1E 64bit ENG/CHT/CHS/JPN

2070014270

Win 10 Enterprise 64bit with EN/JP/TC/SC

Optional MOS modules for

iDoor Expansion

Part Number

Description

MOS-1120Y-0201E

Isolated RS-232, 2-Ch, DB9, PCIe I/F

MOS-1121Y-0201E

Isolated RS-422/485, 2-Ch, DB9, PCIe I/F

MOS-1120Y-1401E

Non-Isolated RS-232, 4-Ch, DB9, PCIe I/F

MOS-1121Y-1401E

Non-Isolated RS-422/485, 4-Ch, DB9, PCIe I/F

MOS-2120-Z1101E

Giga LAN Ethernet module, 1-Ch, PCIe I/F

MOS-2220-Z1101E

High Speed Serial COM module, 1-Ch, USB I/F

MOS-2220-X1101E

Parallel LPT module, 1-Ch, USB I/F

MOS-2230-Z1201E

CANBus module, 2-Ch, USB I/F

MOS-1130Y-0201E

Isolated CANBus, 2-Ch, DB9, PCIe I/F

MOS-1110Y-0101E

Isolated 16 DI/8 DO, 1-Ch, DB37, PCIe I/F

MOS-2110Z-1201E

USB module, 2-Ch, PCIe I/F

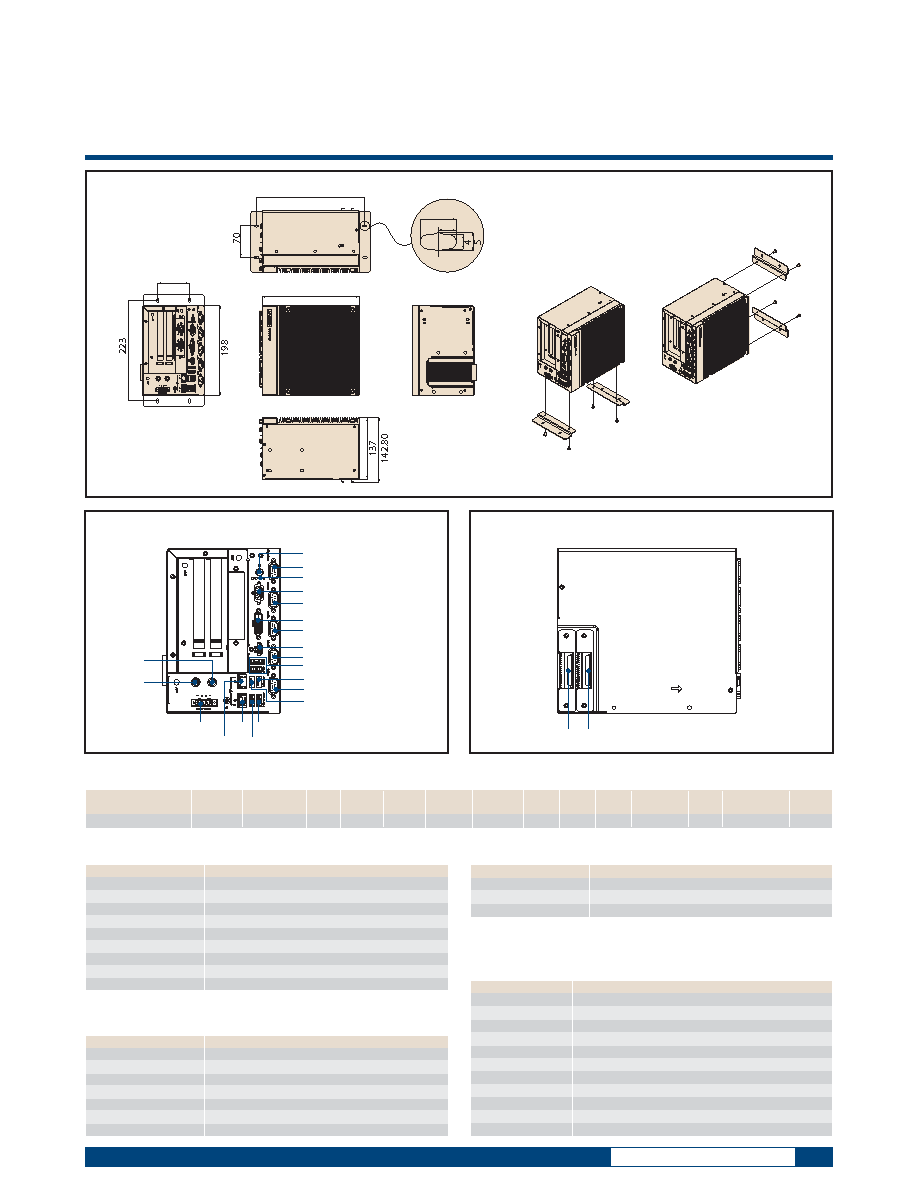

Front Panel External I/O Mechanical Layout/Drawing

Side Panel External I/O Mechanical Layout/Drawing

Dimensions

Unit: mm

Ordering Information

Part No.

CPU

DDR3L

VGA

DVI-D

HDMI

RS-232

RS-232/

422/485

DIO

USB

3.0

USB

2.0

MiniPCIe

SIM

Expansion

iDoor

ARK-3405R-S6A1E

N3160

up to 8GB

1

1

1

2

2

8-bit

3

3

2

1

2 x PCI

1

COM1

COM2

COM3

COM4

Digital IO

Power

HDD LED & THERMAL LED

VGA

DVI-D

HDMI

LAN2

LAN1

DC IN 9-36V

Mic In

Line Out

USB4

USB6/USB5

USB1

USB2

USB3

HDD1 HDD2

COM1

COM2

COM3

COM4

Digital IO

Power

HDD LED & THERMAL LED

VGA

DVI-D

HDMI

LAN2

LAN1

DC IN 9-36V

Mic In

Line Out

USB4

USB6/USB5

USB1

USB2

USB3

HDD1 HDD2

70

215

240

10

5

A

Detail A

Scale 4 : 1
