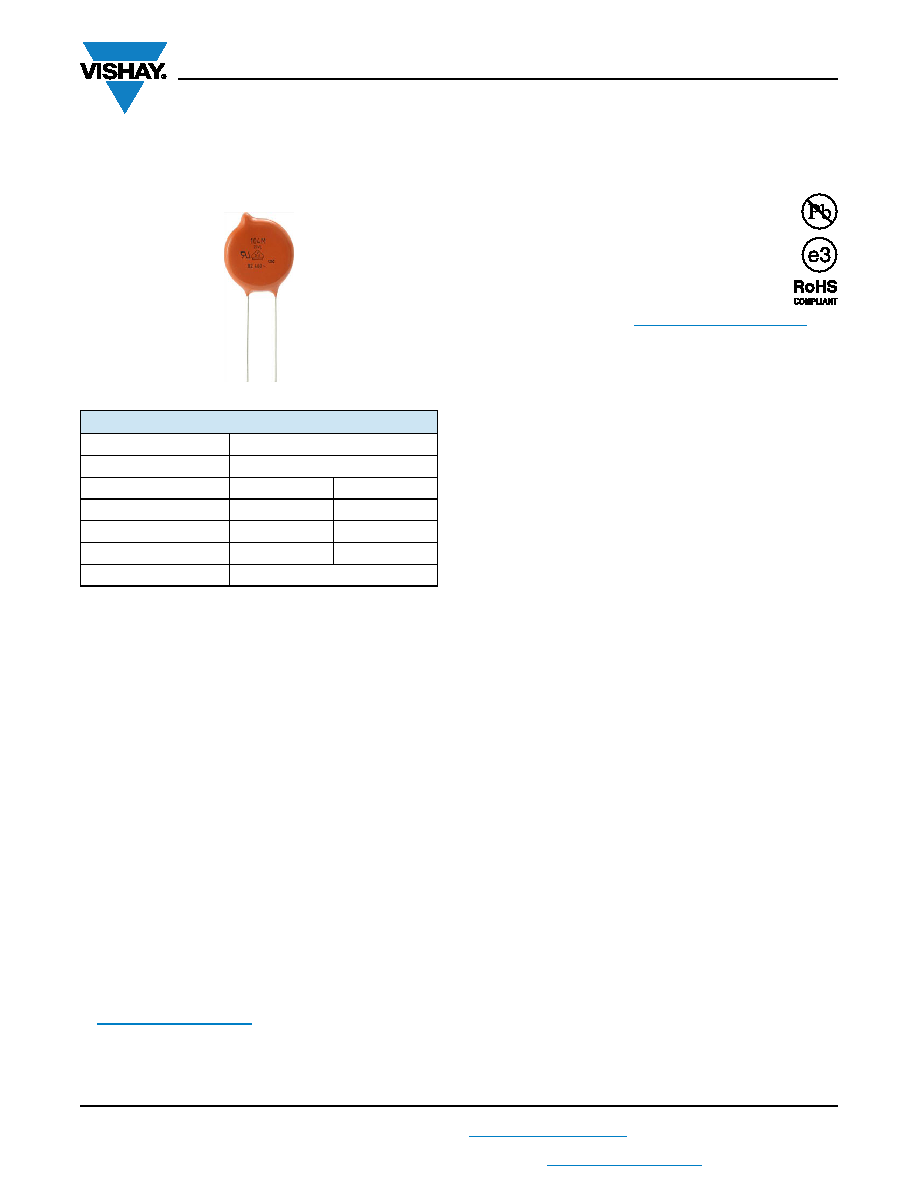

20VL Series

www.vishay.com

Vishay Cera-Mite

Revision: 23-Jul-2021

1

Document Number: 23107

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

EMI Suppression Capacitor, Ceramic Disc,

INSULATION RESISTANCE

Min. 1000

F

TOLERANCE ON CAPACITANCE

± 20 %

DISSIPATION FACTOR

2.0 % max. at 1 kHz; 1 V

CERAMIC DIELECTRIC

Y5V, Z5U

CATEGORY TEMPERATURE RANGE

-25 °C to +125 °C

CLIMATIC CATEGORY ACC. TO EN 60068-1

25 / 125 / 21

OPERATING TEMPERATURE RANGE

Note

range and temperature characteristic of capacitance, please see

www.vishay.com/doc?48299

FEATURES

• Complying with IEC 60384-14

• High reliability

• Radial leads

• Singlelayer AC disc safety capacitors

• Material

categorization:

for

definitions

of

APPLICATIONS

• X2 according to IEC 60384-14

• Line-to-line filtering (Class X)

• EMI / RFI suppression and filtering

DESIGN

The capacitors consist of a ceramic disc of which both sides

are silver-plated. Connection leads are made of tinned

copper having a diameter of 0.025" (0.64 mm). The

capacitors may be supplied with radial kinked or straight

leads having a lead spacing of 0.375" (9.5 mm) or 0.250"

(6.4 mm). The standard tolerance is ± 20 %. Coating is

made of flame retardant epoxy resin in accordance

with “UL 94 V-0.”

CAPACITANCE RANGE

9 nF to 0.1 μF

RATED VOLTAGE

IEC 60384-14:

DIELECTRIC STRENGTH BETWEEN LEADS

Component test, 100 % test at production line:

As repeated test at customer side admissible only once with:

Random sampling test (destructive test):

DIELECTRIC STRENGTH OF BODY INSULATION

QUICK REFERENCE DATA

DESCRIPTION

VALUE

Ceramic Class

2

Ceramic Dielectric

Y5V

Z5U

400

400

Min. Capacitance (pF)

9000

10 000

Max. Capacitance (pF)

100 000

10 000

Mounting

Radial
