rev 06.14.05

Technical Support: (888) 41ASTEC or (407) 241-2752

Americas: (760) 930-4600

Europe (UK) 44 (1384) 842-211

Asia (HK) 852-2437-9662

190

Special Features

60 Watts

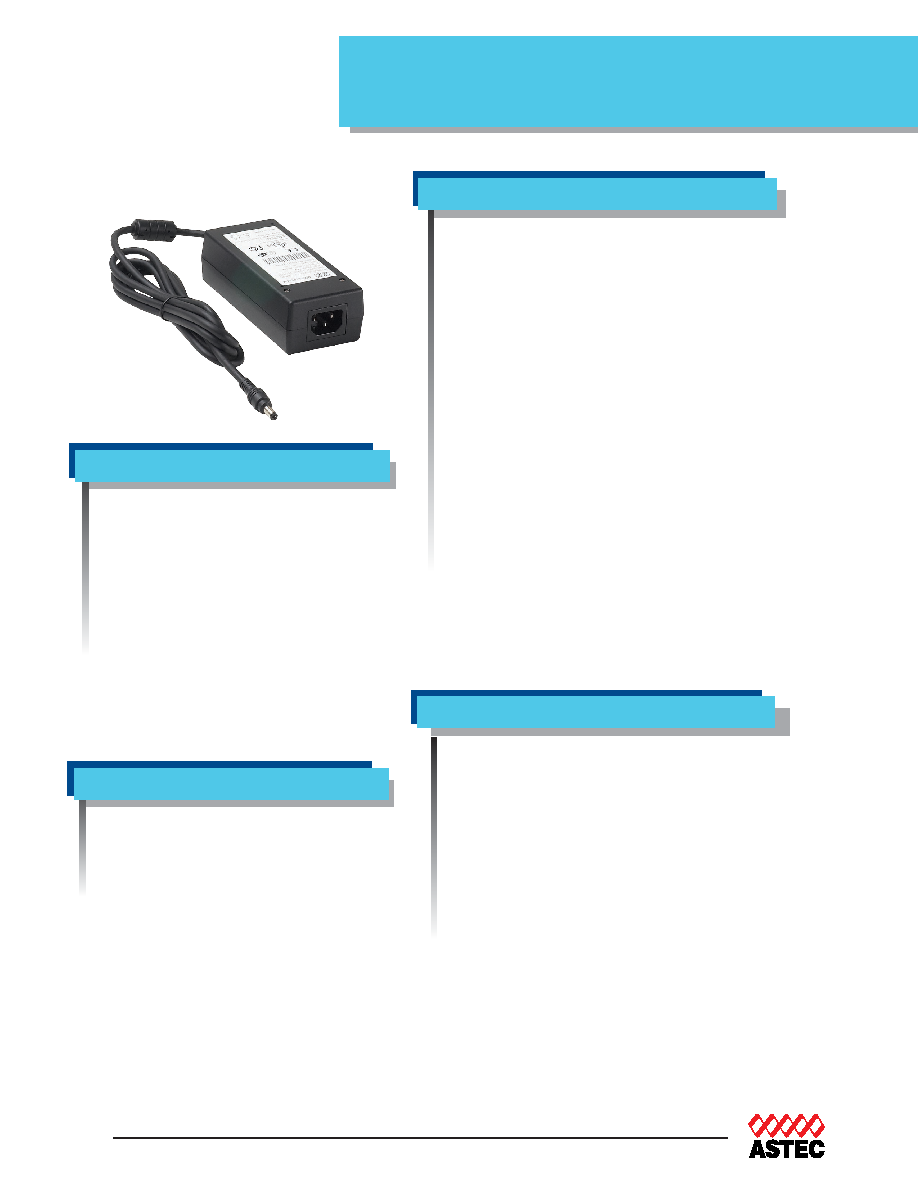

DPS50 Series

Electrical Specs

• CE Mark EMC & LVD

• Universal AC input

• Fully regulated output

• Overload and short circuit protection

•Internal remote sense

• Constant voltage

• High efficiency

• High MTBF

• IEC320 AC receptacle, 3 pin (type C14)

• Built in EMI filter (CISPR 22 Class B)

• LED power good indicator

• Input power <74 watts

• Complies with EN61000-3-2

Input

Input range

90 - 264 VAC (wide range),

127 - 300 VDC

Frequency

47 - 440 Hz

Inrush current

<50A @ 230 VAC, cold start @ 25C

Input current

<2.0A rms @ 115 VAC; <1A @ 230 VAC

Efficiency

>80% @ full load typical, @115VAC

EMI/RFI

FCC Part 15, Subpart B Class B &

EN55022 (CISPR 22) Class B

Safety ground

leakage current

<0.5mA @ 50/60 Hz, 264 VAC input

Output

Maximum Power (Po)

60W (DPS52, 30W)

Hold-up time

10 ms. typical at full load @ 115VAC

Overvoltage protection 20% - 45% above nominal output

maximum.

Latching type, recycle AC to reset.

Overload protection

Output short circuit protection

auto recover. Overload protected

@ 120 - 150% above maximum rating.

Cable/connector

DC cable with 2.5 mm center plug

barrel type

DC plug center +v

DC plug outer -v

Operating temperature: 0°C to +40°C

ambient. Derate each output as 2.5% per

degree from 40° to 60°C. -20°C start up.

Storage temperature: -40°C to +85°C

Electromagnetic susceptability

designed to meet EN61000-4;

-2, -3, -4, -5, -6, -8, -11, level 3

Humidity: Operating; non-condensing; 10%

to 95% RH

Vibration: Three orthogonal axes, 3 sweeps

per axe at 1 oct/min. 2G peak 8 Hz to 500 Hz,

operational

MTBF demonstrated: >550,000 hours at full

load and 25°C ambient conditions

U

ULL

UL 60950-1

C

CS

SA

A

CSA-C22.2 No. 60950-1

N

NE

EM

MK

KO

O

IEC/EN60950-1

V

VD

DE

E

EN60950-1

C

CE

E

EMC & LVD

C

CB

B

Certificate and report

C

CC

CC

C

GB4943

Environmental

Safety

Total Power:

30 - 60 Watts

Input Voltage: 127 - 300 VDC, 90 - 264 VAC

# of Outputs:

Single
