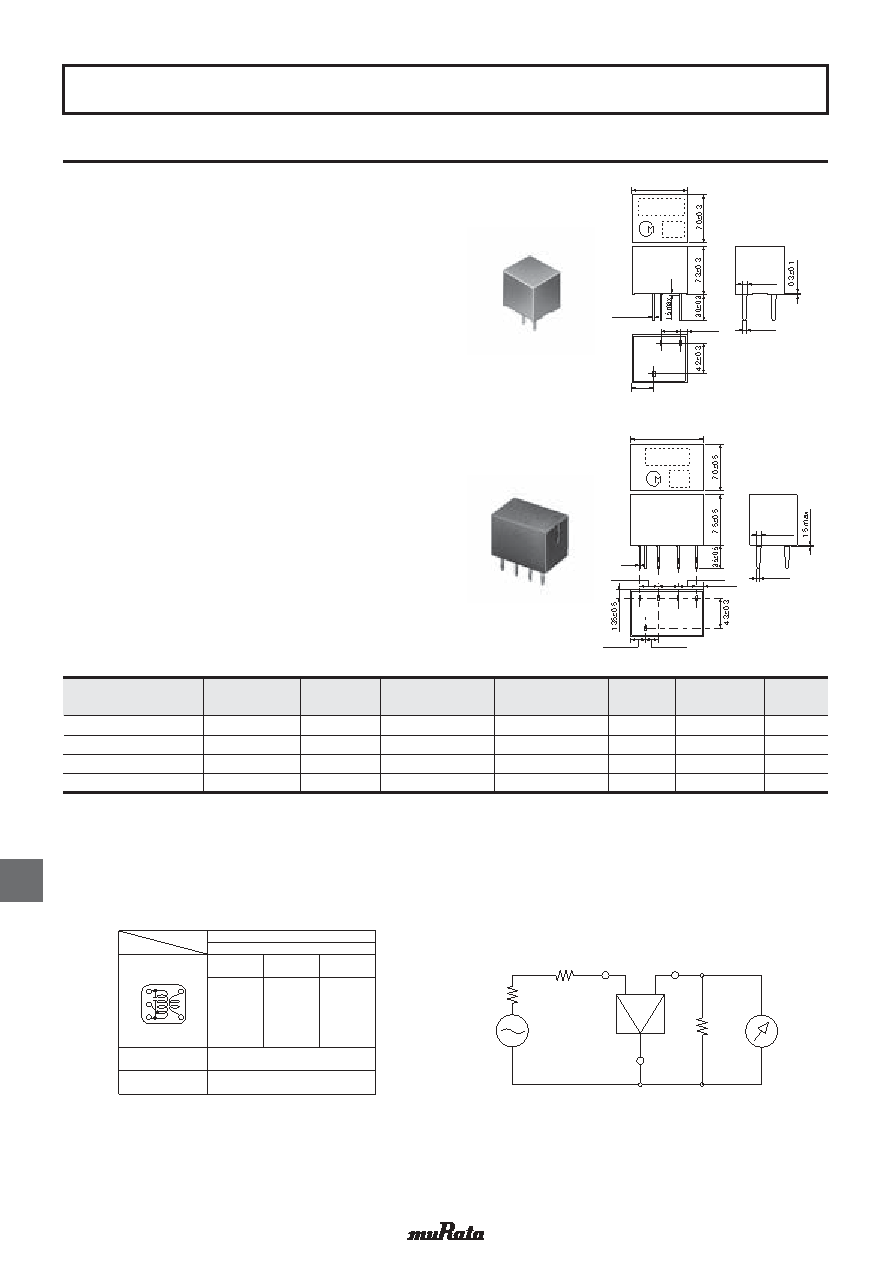

Lead Type SFPLA/CFWLA Series

SFPLA/CFWLA series for AM use is one of the most

suitable intermediate ﬁlters, having such

distinctive features as high selectivity, high

stability, high attenuation, and adjustment-free

operation. Additionally, its easy matching with IC

helps create an easy circuit design.

This is the most suitable for car stereo and

all band radio with high attenuation.

0.8±0.1

0.6±0.1

1.2±0.5

8.0±0.3

MARKING

EIAJ

CODE

3.3±0.5

2.7±0.3

(1)

(2)

(3)

0.15±0.05

Connection

(1) : Input

(2) : Ground

(3) : Output

(in mm)

SFPLA Series

0.15

2.3±0.5

2.0±0.3

2.9±0.3

11.0±0.5

MARKING

EIAJ

CODE

1.2±0.5

(1)

(2)

(4) (3)

(5)

0.6±0.1

0.8±0.1

2.6±0.3

Connection

(1): Input

(2)(3)(4): Ground

(5): Output

(in mm)

2.9—0.3

2.9±0.3

CFWLA Series

Part Number

Center

Frequency (fo)

(kHz)

6dB

Bandwidth

(kHz)

Selectivity (-)

(dB)

Selectivity (+)

(dB)

Insertion

Loss

(dB)

Input/Output

Impedance

(ohm)

Element

SFPLA450KJ1A-B0

450.0 ±1.0kHz

fn±2.0 min.

40 min.[fn-7.5kHz]

40 min.[fn+7.5kHz]

6.0 max.

2000

SFPLA450KH1A-B0

450.0 ±1.0kHz

fn±3.0 min.

40 min.[fn-9kHz]

40 min.[fn+9kHz]

6.0 max.

2000

CFWLA450KJFA-B0

450.0 (fn)

fn±2.0 min.

50 min.[fn-7.5kHz]

50 min.[fn+7.5kHz]

7.0 max.

2000

CFWLA450KHFA-B0

450.0 (fn)

fn±3.0 min.

50 min.[fn-9kHz]

50 min.[fn+9kHz]

6.0 max.

2000

Area of Insertion Loss: at minimum loss point

Center frequency (fo) is deﬁned by the center of 6dB bandwidth.

(fn) means nominal center frequency (450kHz).

For safety purposes, connect the output of ﬁlters to the IF ampliﬁer through a D.C. blocking capacitor. Avoid applying a direct current to the output of ceramic ﬁlters.

The order quantity should be an integral multiple of the "Minimum Quantity" shown in the package page.

(1)

(2)

S(3)

(4)S

(6)

Type

Item

Winding Specification

No load Qu

Tuning Capacitance

180pF

SFPLA/CFWLA

7x7mm IFT

(1)—(2)

(2)—(3)

(4)—(6)

60T

125T

28T

(Bottom view)

c Recommended IFT

Input

Output

SSG

Ground

Voltmeter

Rg+R1 =R2 : Input/Output Impedance

c Test Circuit

!Note • Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

CERAFIL

r (CERAFILr 455kHz) for Audio/Visual Equipment
