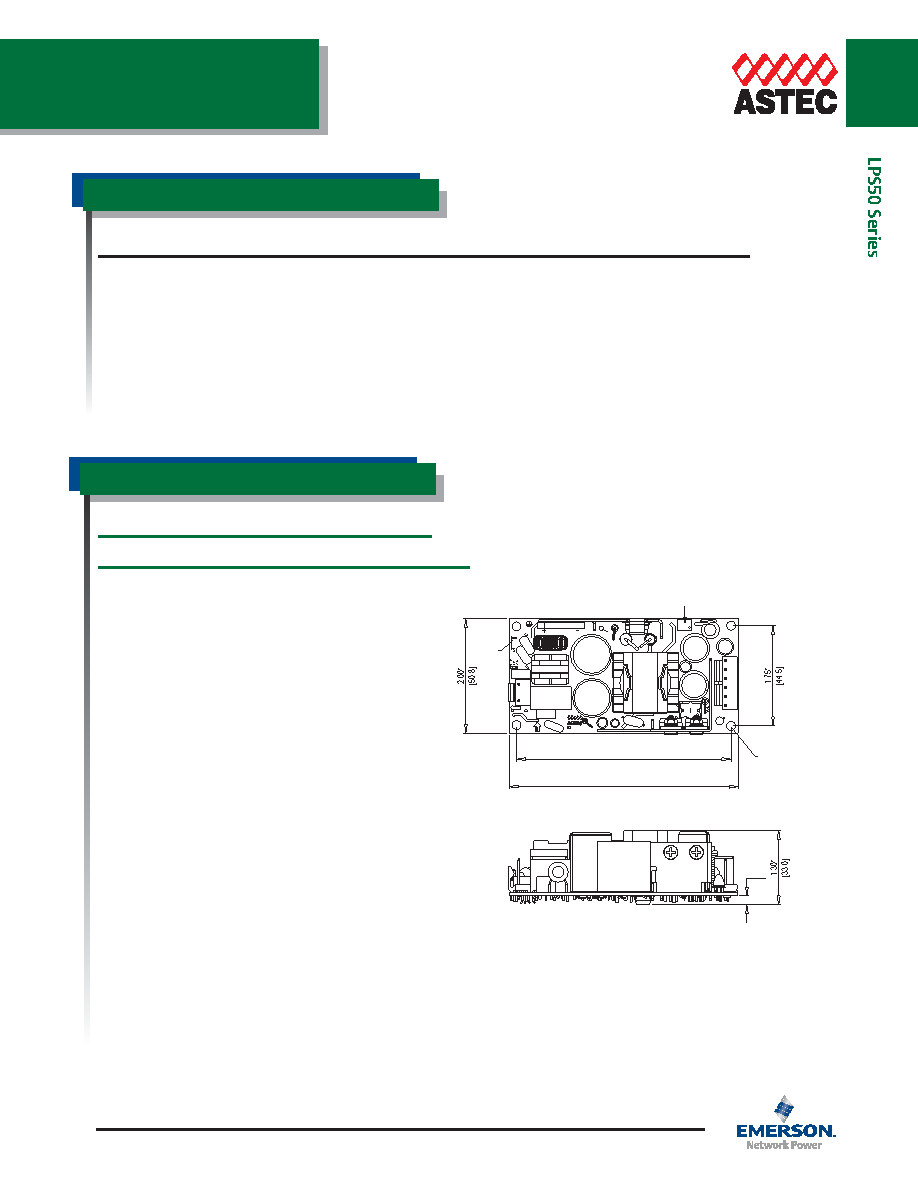

3.75"

[95.3]

4.00"

[101.6]

0.16"

[4.0]

R2

2

SK1

TH1

C1

F2

L1

F1

C5

L3

DB1

C32

C24

C30

C17

C9

C18

Q6

T1

D4

R1

LED1

D2

T2

C22

SK2

C27

R3A

R3

Q5

L2

VR1

T3.15A 2.5A

250VAC

2005

+

GRN/

YEL

~

~

B

A

HTSK_SEC

C4

1

TP1

J

I

J3

F

H

J2

E

G

J1

D

TP2

J4

Mounting Hole

Ø0.16"[4.0] 4 Places

GND

3

1

M1

6

1

M2

VR1

(Output Voltage

Adjustment Pot)

EUROPE

Astec House, Waterfront Business Park

Merry Hill, Dudley

West Midlands, DY5 1LX, UK

Telephone: 44 (1384) 842-211

Facsimile: 44(1384) 843-355

AMERICAS

5810 Van Allen Way

Carlsbad, CA 92008

Telephone: 760-930-4600

Facsimile: 760-930-0698

75

www.astecpower.com

Ordering Information

ASIA

Units 2111-2116, Level 21

Tower1, Metroplaza

223, Hing Fong Road

Kwai Fong, New Territories

Hong Kong

Telephone: 852-2437-9662

Facsimile: 852-2402-4426

Model

Output

Minimum

Maximum Load with

Peak

Regulation2

Ripple

Number

Voltage

Load

Convection Cooling

Load1

P/P (PARD)3

LPS52

5 V

0 A

11 A

12 A

±2%

50 mV

LPS53

12 V

0 A

5 A

5.4 A

±2%

120 mV

LPS54

15 V

0 A

4 A

4.4 A

±2%

150 mV

LPS55

24 V

0 A

2.5 A

2.75 A

±2%

240 mV

LPS58

48 V

0 A

1.25 A

1.35 A

±2%

480 mV

1. Peak current lasting <15 seconds with a maximum 10% duty cycle.

2. At 25°C including initial tolerance, line voltage, load currents and output voltages adjusted to factory settings.

3. Peak-to-peak with 20 MHz bandwidth and 10 µF (tantalum capacitor) in parallel with a 0.1 µF capacitor at rated line voltage and load ranges.

Connector LPS52

LPS53

LPS54

LPS55

LPS58

SK1-1

Line

Line

Line

Line

Line

SK1-3

Neutral

Neutral

Neutral

Neutral

Neutral

SK2-1

+5 V

+12 V

+15V

+24V

+48

SK2-2

+5 V

+12 V

+15V

+24V

+48

SK2-3

Common

Common

Common

Common

Common

SK2-4

Common

Common

Common

Common

Common

SK2-5

-Sense

-Sense

-Sense

-Sense

-Sense

SK2-6+Sense

+Sense

+Sense

+Sense

+Sense

Mating Connectors

AC Input:

Molex 09-50-8031 (USA)

09-91-0300 (UK)

PINS: 08-58-0111

DC Outputs:

Molex 09-50-8061 (USA)

09-91-0600 (UK)

PINS: 08-58-0111

Astec Connector Kit #70-841-006, includes all of the above

Notes:

1. Specifications subject to change without notice.

2. All dimensions in inches (mm), tolerance is ±.02" (±0.5mm)

3. Mounting holes M1 and M2 should be grounded for EMI purposes.

4. Mounting hole M1 is safety ground connection.

5. Specifications are for convection rating at factory settings at 115 VAC

input, 25°C unless otherwise stated.

6. Warranty: 1 year

7. Weight: .41lbs/.18kg

Pin Assignments
