Technical Data 10953

Effective December 2020

FP1012V

High frequency, high current power inductors

www.eaton.com/electronics

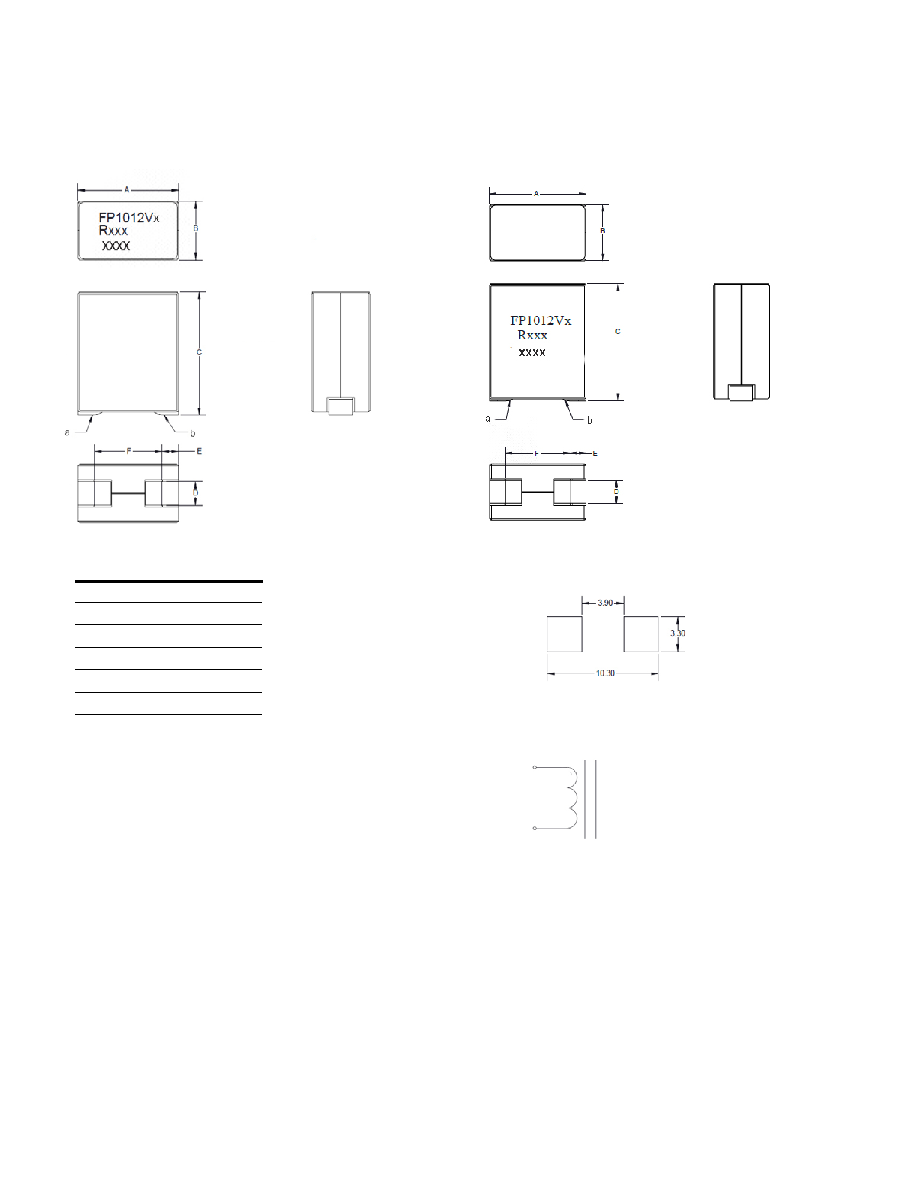

Dimensions-mm

FP1012V2

FP1012V3

Part marking: FP1012=Product code and size, Vx=Version indicator, Rxxx= inductance value in uH, R=decimal point, xxxx= lot code

Tolerances are ±0.15 millimeters unless stated otherwise

All soldering surfaces to be coplanar within 0.1 millimeters

Pad layout tolerances are ±0.1 millimeters unless stated otherwise

DCR is measured from point “a” to point “b”

Traces or vias underneath the inductor is not recommended

Dimension

FP1012V2/V3

A

10 maximum

B

6.0 maximum

C

12 maximum

D

2.3 nominal

E

1.6 reference

F

6.5 reference

Recommended pad layout FP1012V2/V3

Schematic FP1012V2/V3
