CSSK Series

Kelvin Termination Metal Alloy Current Sensing Resistor

Stackpole Electronics, Inc.

Resistive Product Solutions

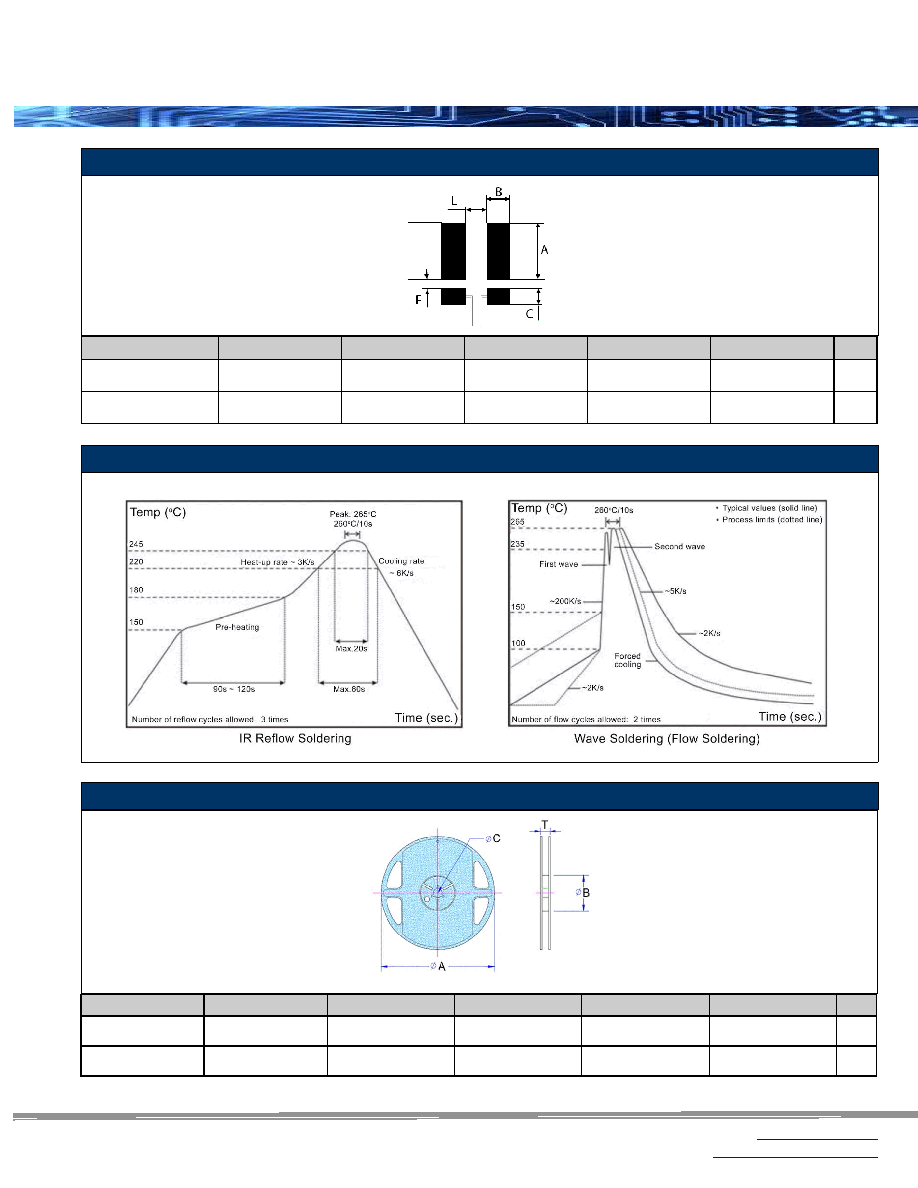

Recommended Pad Layouts

Type/Code

Reel Type

Unit

7.008 ± 0.079

2.362 ± 0.039

0.512 ± 0.039

0.453 ± 0.039

inches

178.00 ± 2.00

60.00 ± 1.00

13.00 ± 1.00

11.50 ± 1.00

mm

7.008 ± 0.079

2.362 ± 0.039

0.531 ± 0.020

0.685 ± 0.039

inches

178.00 ± 2.00

60.00 ± 1.00

13.50 ± 0.50

17.40 ± 1.00

mm

CSSK3637

Embossed Plastic

Paper Tape

T

CSSK0612

ΦA

ΦB

ΦC

Reel Specifications

Recommended IR

– Reflow Profile

Type/Code

A

B

C

L

F

Unit

0.091

0.039

0.031

0.028

0.016

inches

2.30

1.00

0.80

0.70

0.40

mm

0.312

0.130

0.078

0.157

0.024

inches

7.92

3.30

1.98

4.00

0.60

mm

CSSK0612

CSSK3637
