Page 1 of 2

SUPER FLUX LED

BTF-37WHCS-XX-X

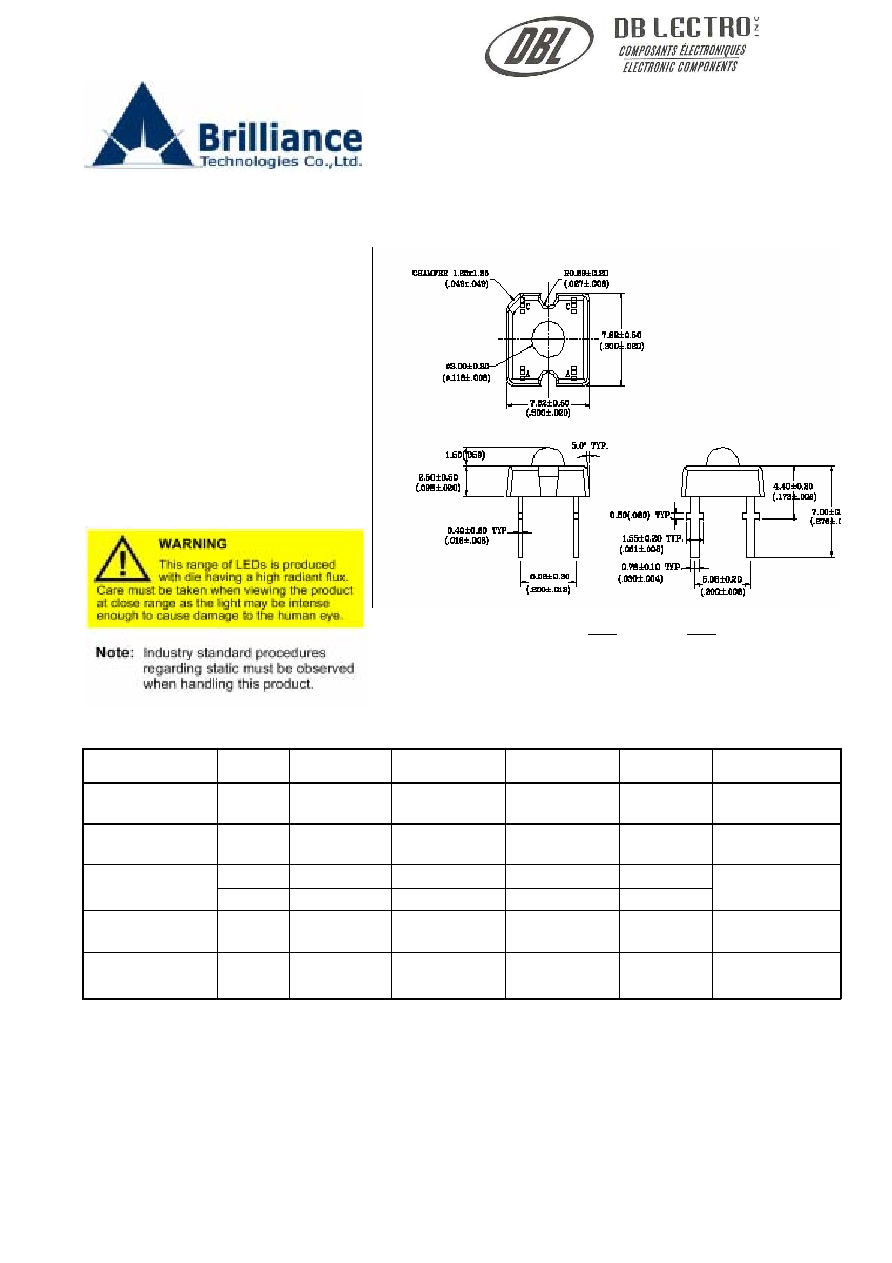

Package Dimension

Product Features

Ultra Bright White Color

High Light Output

3mm Super Flux Package

Water Clear Lens

Highly Reliable

IC Compatible

Leads with Stand Off

Applications

Outdoor Sign Board

Automotive

Front Panel Indicator

Special Lighting

General Purpose LEDs

Tolerance:

±

Unit:

±

Optical and Electrical Characteristics at Ta=25℃

Parameter

Symbol

Minimum

Typical

Maximum

Units

Conditions

Luminous

Intensity

Iv

1800

2500

－

mcd

IF = 20mA

(Note 1)

Viewing Angle

2θ1/2

－

90

－

degree

IF = 20mA

X

－

0.28

－

n/a

Color

Coordinates

Y

－

0.29

－

n/a

IF = 20mA

(Note 2)

DC Forward

Voltage

VF

－

3.3

4.0

V

IF = 20mA

DC Reverse

Current

IR

0

－

10

µA

VR=5V

Notes:

1. Light intensity measures the light sensing response standard using chromatic meter.

Refer to the CIE

eye-response curve set by International Lighting committee.

Tolerance of minimum and maximum

intensity = ± 15%

2. Color coordinates range can be selected from the bin selection table. The parameters used fulfilled

the 1932 2 standard

3.

These products are sensitive to static electricity and care must be fully taken when handling products

0.01

0.25

inch

mm

DB LECTRO Inc. 3600 boul. Matte suite i Brossard Qc J4Y-2Z2 tel:(450)-444-1424 fax:(450)-444-4714 www.dblectro.com
