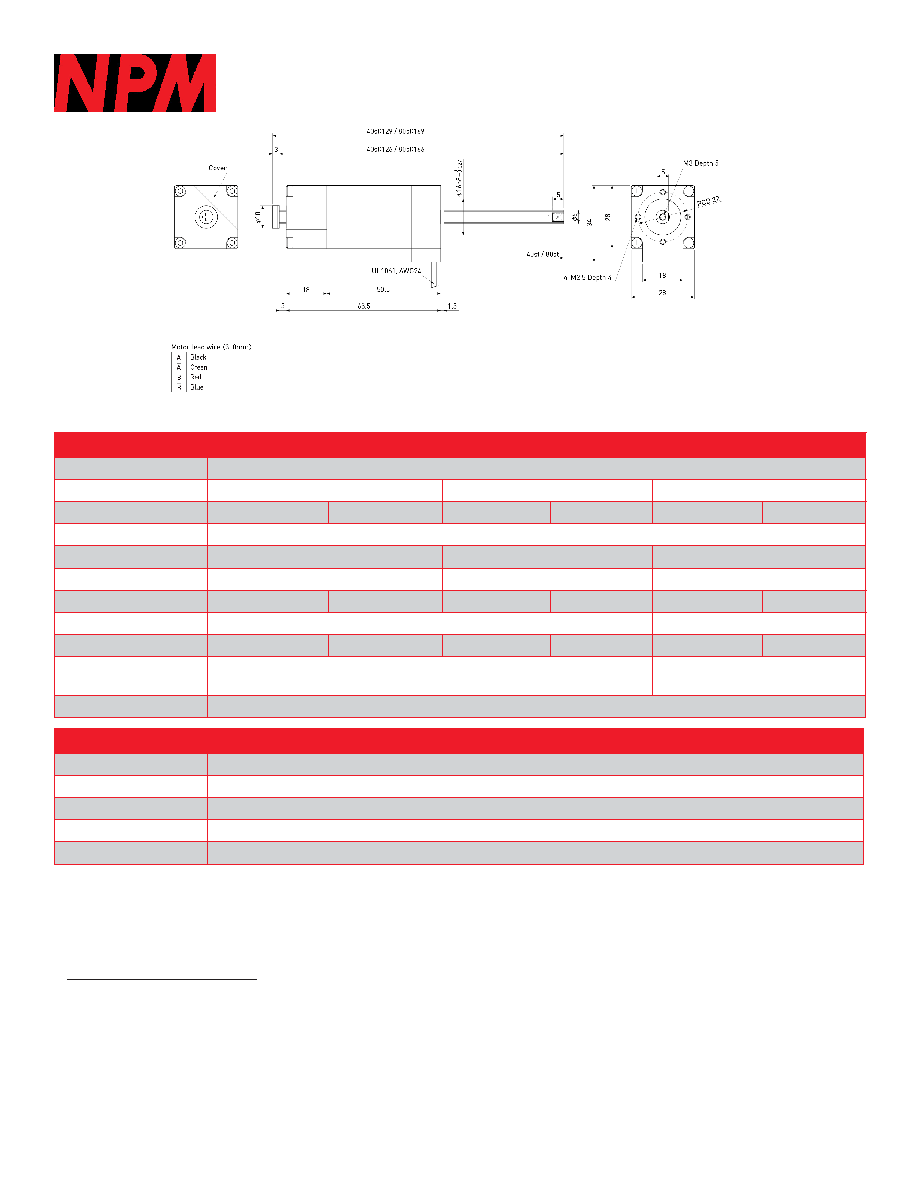

PBACL28

Non-Captive Linear Actuator

nipponpulse.com • info@nipponpulse.com • 540-633-1677

Nippon Pulse

Your Partner in Motion Control

Specification

PBACL28-G01

PBACL28-G02

PBACL28-R01

PBACL28-R02

PBACL28-Re02

PBACL28-Re06

Motor Frame Size (mm)

28 (NEMA 11)

Drive Screw Type

Precision Ball Screw

Rolled Ball Screw

Resin Lead Screw

Screw Lead

1mm

2mm

1mm

2mm

2mm

6mm

Travel

40mm/80mm

Repeatability

±0.005mm

±0.010mm

±0.030mm

Lost Motion

0.010mm

0.020mm

0.060mm

Maximum Speed

20mm/sec

40mm/sec

20mm/sec

40mm/sec

20mm/sec

60mm/sec

Accel/Decel Time

Min. 0.2 sec

Min. 0.4 sec

Thrust Force

50N

25N

50N

25N

10N

2.5N

Mass

Travel 40mm : 230g

Travel 80mm : 240g

Travel 40mm : 210g

Travel 80mm : 220g

Operating Temperature

0 ~ 40°C (no condensation)

Motor Specification

PBACL28-G01

PBACL28-G02

PBACL28-R01

PBACL28-R02

PBACL28-Re02

PBACL28-Re06

Driving Method

2-phase bi-polar

Rated Voltage

3.8V (DC)

Rated Current

0.67A/phase

Winding Resistance

5.6Ω

Insulation Class

Class B (130°C)

Specifications

Precautions:

- CL type (non-captive type) does not have an anti-rotating device. External anti-rotating device should be set up during use.

- Specifications above are reference value measured in vertical position at virgin condition.

- Sensor is not built in this standard design

PBA

CL 28 G 01 040

1

2

3 4

5

6

1: Series Designation (PBA)

2: Cylinder type

CL: Non-Captive Type

AR: Captive Type

3: Motor frame size (mm)

4: Drive screw type

G: Precision Ball Screw

R: Rolled Ball Screw

Re: Resin Lead Screw

5: Screw Lead

01: 1mm

02: 2mm

06: 6mm

6: Travel, mm

040: 40mm

080: 80mm

Part Numbering
