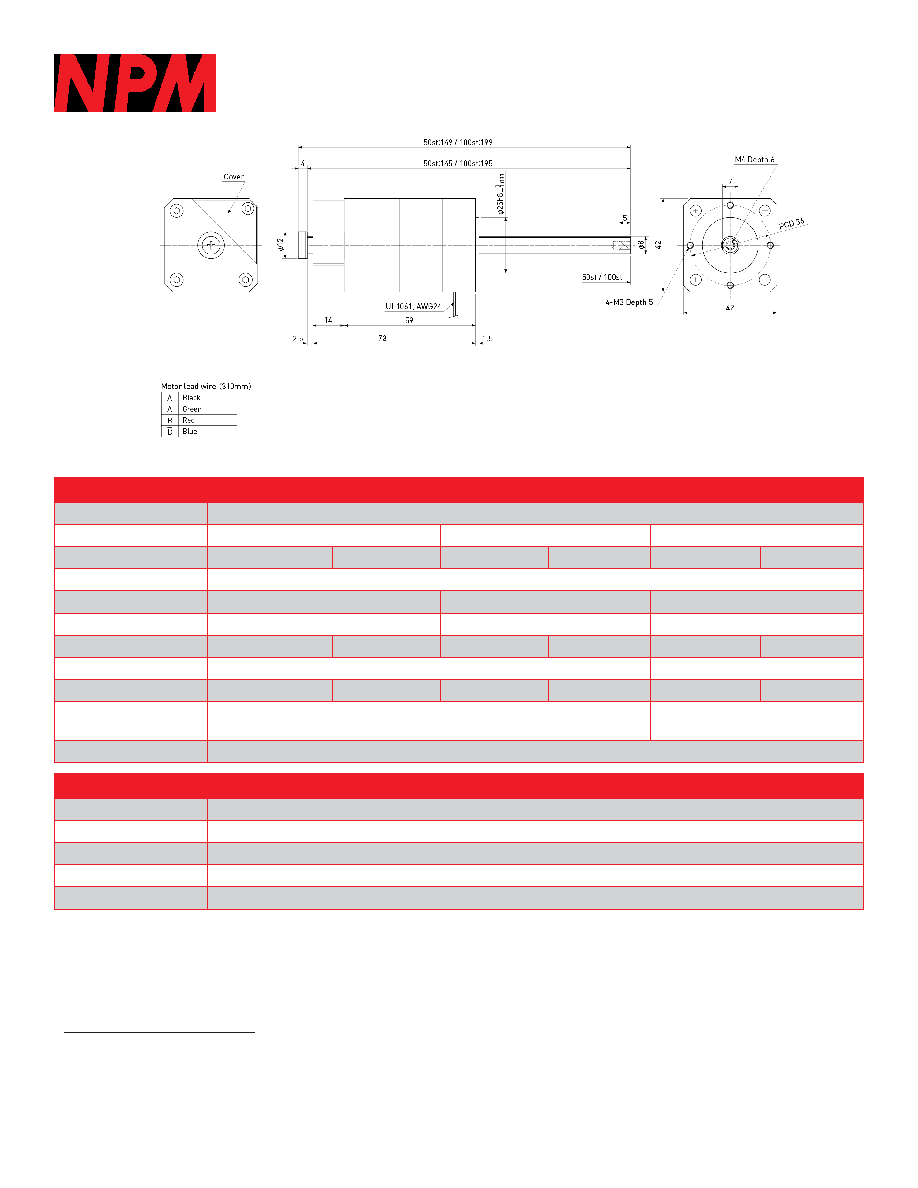

PBACL42

Non-Captive Linear Actuator

nipponpulse.com • info@nipponpulse.com • 540-633-1677

Nippon Pulse

Your Partner in Motion Control

Specification

PBACL42-G02

PBACL42-G05

PBACL42-R02

PBACL42-R05

PBACL42-Re02

PBACL42-Re05

Motor Frame Size (mm)

42 (NEMA 17)

Drive Screw Type

Precision Ball Screw

Rolled Ball Screw

Resin Lead Screw

Screw Lead

2mm

5mm

2mm

5mm

2mm

5mm

Travel

50mm/100mm

Repeatability

±0.005mm

±0.010mm

±0.030mm

Lost Motion

0.010mm

0.020mm

0.060mm

Maximum Speed

40mm/sec

100mm/sec

40mm/sec

100mm/sec

20mm/sec

50mm/sec

Accel/Decel Time

Min. 0.2 sec

Min. 0.4 sec

Thrust Force

80N

30N

80N

30N

20N

10N

Mass

Travel 50mm : 530g

Travel 100mm : 550g

Travel 50mm : 490g

Travel 100mm : 510g

Operating Temperature

0 ~ 40°C (no condensation)

Motor Specification

PBACL42-G02

PBACL42-G05

PBACL42-R02

PBACL42-R05

PBACL42-Re02

PBACL42-Re05

Driving Method

2-phase bi-polar

Rated Voltage

2.5V (DC)

Rated Current

1.2A/phase

Winding Resistance

2.1Ω

Insulation Class

Class B (130°C)

Specifications

Precautions:

- CL type (non-captive type) does not have an anti-rotating device. External anti-rotating device should be set up during use.

- Specifications above are reference value measured in vertical position at virgin condition.

- Sensor is not built in this standard design

PBA

CL 42 G 02 040

1

2

3 4

5

6

1: Series Designation (PBA)

2: Cylinder type

CL: Non-Captive Type

AR: Captive Type

3: Motor frame size (mm)

4: Drive screw type

G: Precision Ball Screw

R: Rolled Ball Screw

Re: Resin Lead Screw

5: Screw Lead

02: 2mm

05: 5mm

6: Travel, mm

050: 50mm

100: 100mm

Part Numbering
