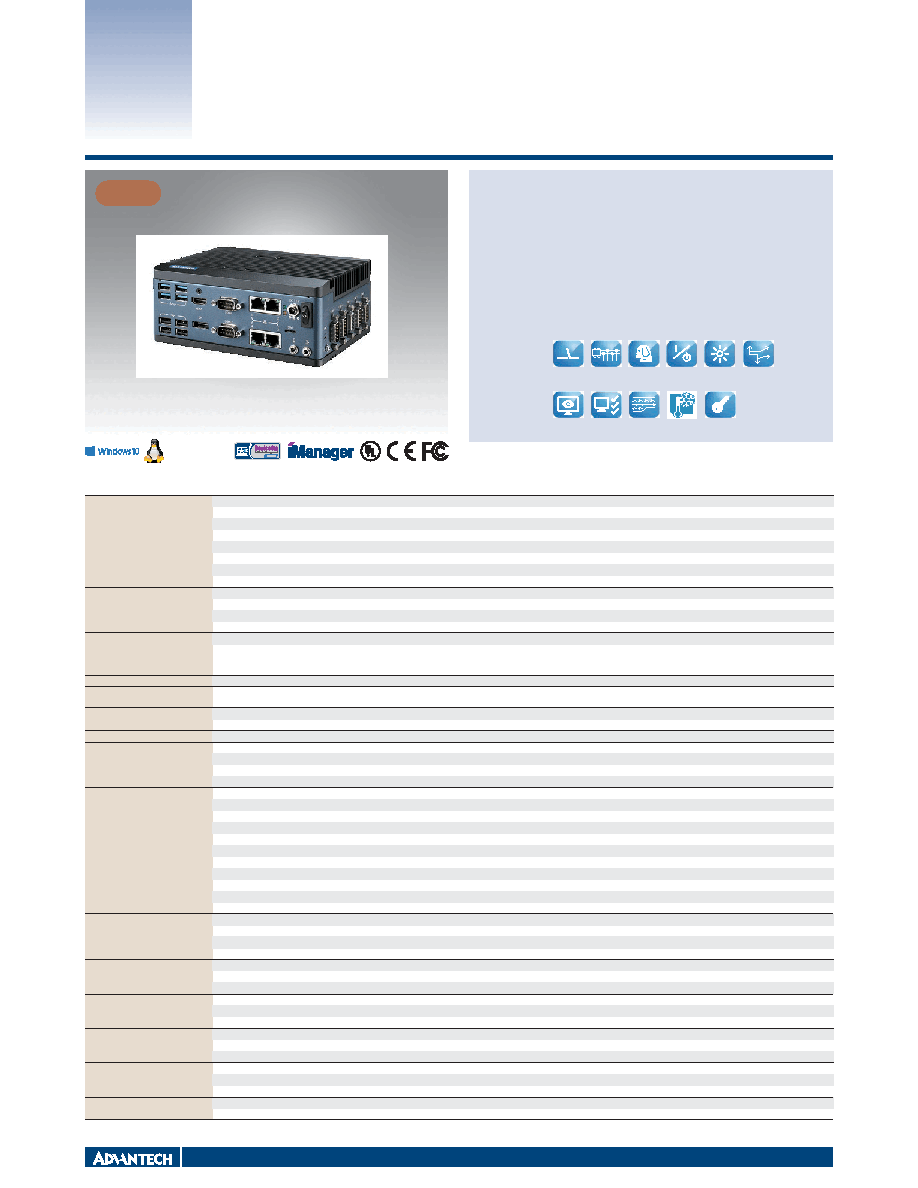

EPC-C301

8th Gen. Intel® Core Processor SoC

Multiple I/Os Fanless Embedded System

ƒ

8th Gen. Intel Core i7-8665UE/i5-8365UE Quad Core

ƒ

Dual Display HDMI + DP, up to 4K2K

ƒ

4 x GbE, 8 x USB3.0/2.0, 4 x UART, 2 x CANBus

ƒ

4 Expansion: M.2 E-Key 2230, M-Key 2280, B-Key 3042, F/S mPCIe

ƒ

DC-in 12V, Wall Mount & DIN Rail

ƒ

iManager3.0 & SW APIs, WISE-PaaS/DeviceOn

Specifications

Platform

Processor

i7-8665UE

i5-8365UE

Base Frequency

1.70 GHz

1.60 GHz

Max. Frequency

4.40 GHz

4.10 GHz

Core/Tread

4/8

4/8

LLC

8MB

6MB

CPU TDP

15W

15W

Chipset

Intel® WHL-U SoC integrated

BIOS

AMI UEFI 256Mbit

Memory

Technology

DDR4-2400MT/s

Max. Capacity

32GB

Channel/Socket

Dual Channels / 2 Sockets

ECC Support

N/A

Graphics

Controller

Integrated Intel® UHD Graphics 620

3D/HW Acceleration

DX12, OGL4.4

HW Encode: H.264, MPEG2

HW Decode: H.264, MPEG2

Storage

SSD

M.2 2280 SATA SSD or NVMe SSD (default bundled with SQF-SM8M4-128G-SBE)

Display I/O

HDMI/DP

HDMI1.4 up to 4096x2160@30/24Hz

DP1.2 up to 4096x2306@60Hz (Note: not support Audio stream & Hot-plug & HDCP)

Ethernet

Controller

LAN1: Intel i219, LAN2: Intel i210, LAN3: Intel i210, LAN 4: Intel i210

Speed

10/100/1000 Mbps

Audio

Audio Codec

Realtek ALC888, High Definition Audio, Line-out, Mic-in

Internal expansion Slot

M.2 3042 B-Key

1

M.2 2230 E-Key

1

M.2 2280 M-Key

1 (Default bundled with 128G SATA SSD)

Full Size MiniPCIe

1 (*Intel EVK SKU will default bundled with VEGA-330, Intel® Movidius™ Accelerator Card)

Front Panel

HDMI

1

DP

1

Gigal LAN

4

USB 3.0

4

USB 2.0

4

MIC-In

1

LINE-Out

1

COM

2 x Full RS-232/422/485

DC Jack

1

SIM card

1 (Nano SIM)

Power Button

1

Side Panel

Antenna

4

COM

2 (1 x Full RS-232/422/485, 1 x RS-232)

CANBUS

2 Support CAN 2.0B at 1Mb/s

DIO

1

Miscellaneous

LED Indicators

2 (Power LED , HDD LED)

Switch

-

Circular Cutouts

-

Power Requirement

Power Voltage

Vin: DC 12V ± 10%; RTC Battery: Lithium 3V/210mAH

Power input Type

DC-Jack (only ATX mode)

Consumption

Idle: 6.683W; Max.: 65.591W

Mechanical

Construction

Aluminum housing

Mounting

Din-Rail mounting/ Wall-mounting

Dimension

170 x 118 x 70 mm

Environment

Operating temperature

With extended temperature peripherals: -20 ~ 60 °C (-4 ~ 140 °F) with 0.7m/s air flow without VEGA 330/ -20 ~ 50 °C with VEGA 330

Storage Temperature

-40 ~ 85 °C ( -40 ~ 185 °F)

Relative Humidity

95% @ 40 °C (non-condensing)

Regulation

EMC

CE/FCC Class B, CCC, BSMI (*No RED certification)

Safety

CB, UL

*Note: Support by request

GPIO

SMBus/I2C Watch Dog

Timer

Backlight

On/Off

Brightness

CAN bus

Hardware

Monitor

System

Thro�ling

Thermal

Protec�on

Data

Security

System Info

NEW

All product specifications are subject to change without notice.

Last updated: 15-Sep-2021
