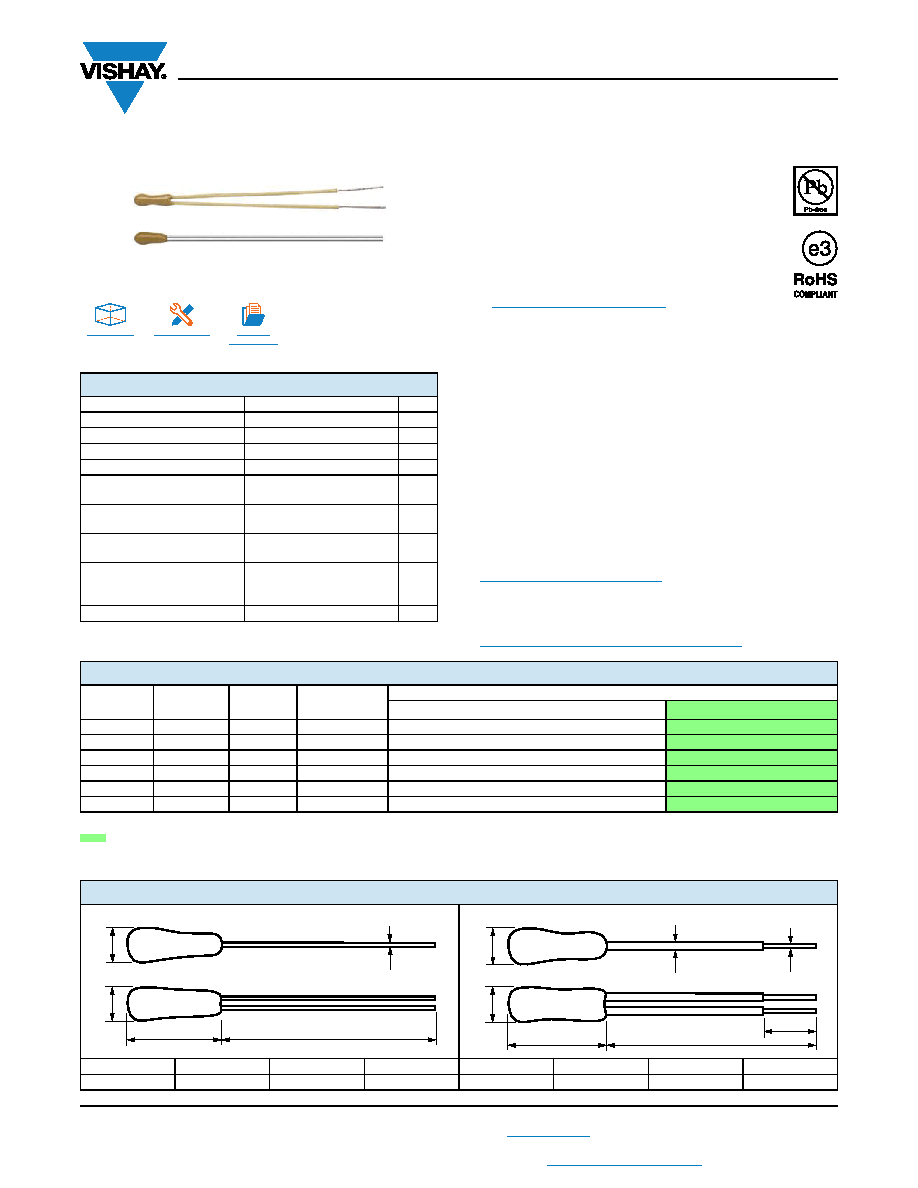

NTCLE201E3...SB, NTCLE300E3...SB

www.vishay.com

Vishay BCcomponents

Revision: 18-Sep-2020

1

Document Number: 29051

For technical questions, contact: nlr@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

NTC Thermistors, 2-Point Mini Chip Sensor, Flexible Leads

LINKS TO ADDITIONAL RESOURCES

FEATURES

• Accuracy of 0.5 °C between 0 °C and 50 °C

• Small 2.4 mm diameter

• High stability over a long life

• Long and flexible leads for special mounting or

assembly requirements

• AEC-Q200 qualified

• Material categorization:



for

definitions

of

compliance

please

see

www.vishay.com/doc?99912

APPLICATIONS

• Temperature measurement, sensing and control in

automotive,

industrial

and

consumer

electronic

equipment

DESCRIPTION

These negative temperature coefficient thermistors consist

of a mini-chip soldered between two AWG#30 ETFE

insulated (LE300) or non-insulated (LE201) 0.3 mm nickel

leads and coated with a solid ocher color epoxy lacquer

PACKAGING

The thermistors are packed in cardboard boxes; the

smallest packing quantity is 1000 units

MARKING

The coated body has no markings

MOUNTING

Important mounting and handling instructions: see

www.vishay.com/doc?29222

By soldering in any position.

DESIGN-IN SUPPORT

For complete curve computation, please visit:



www.vishay.com/thermistors/ntc-curve-list/

Notes

Preferred versions for new designs

(1) RoHS exemption 7(c)-I: electrical and electronic components containing lead in a glass or ceramic other than dielectric ceramic in

capacitors, e.g. piezo-electronic devices, or in a glass or ceramic matrix compound

QUICK REFERENCE DATA

PARAMETER

VALUE

UNIT

Resistance value at 25 °C

3K to 10K



Tolerance on R25-value

± 2.18

%

B25/85-value

3977

K

Tolerance on B25/85-value

± 0.75

%

Operating temperature

range at zero dissipation

-40 to +125

°C

Accuracy for T measured

between 0 °C and 50 °C

± 0.5

°C

Maximum power

dissipation at 55 °C

100

mW

Min. dielectric withstanding

voltage between terminals

and coated body

500

VAC

Weight

 0.2

g

333

DDD3 D

3D Models

Design Tools

Related

Documents

Available

ELECTRICAL DATA AND ORDERING INFORMATION

R25

(

)

R25-TOL.

(± %)

B25/85

(K)

B25/85-TOL.

(± %)

SAP MATERIAL AND ORDERING NUMBER

RoHS-COMPLIANT WITH EXEMPTION (1)

RoHS-COMPLIANT

3000

2.18

3977

0.75

NTCLE201E3302SB

NTCLE201E3302SBA

5000

2.18

3977

0.75

NTCLE201E3502SB

NTCLE201E3502SBA

10 000

2.18

3977

0.75

NTCLE201E3103SB

NTCLE201E3103SBA

3000

2.18

3977

0.75

NTCLE300E3302SB

NTCLE300E3302SBA

5000

2.18

3977

0.75

NTCLE300E3502SB

NTCLE300E3502SBA

10 000

2.18

3977

0.75

NTCLE300E3103SB

NTCLE300E3103SBA

DIMENSIONS in millimeters

Component outline for NTCLE201E3...

Component outline for NTCLE300E3...

TB

L

L1

L2

Ø d1

Ø d2

Ø d3

2.4 max.

2.4 max.

38 ± 2

8.0 max.

6 ± 1

0.30 ± 0.03

0.58 max.

0.25 ± 0.025

T

B

L

1

L

d

1

T

B

L

1

L

d

2

d

3

L

2
