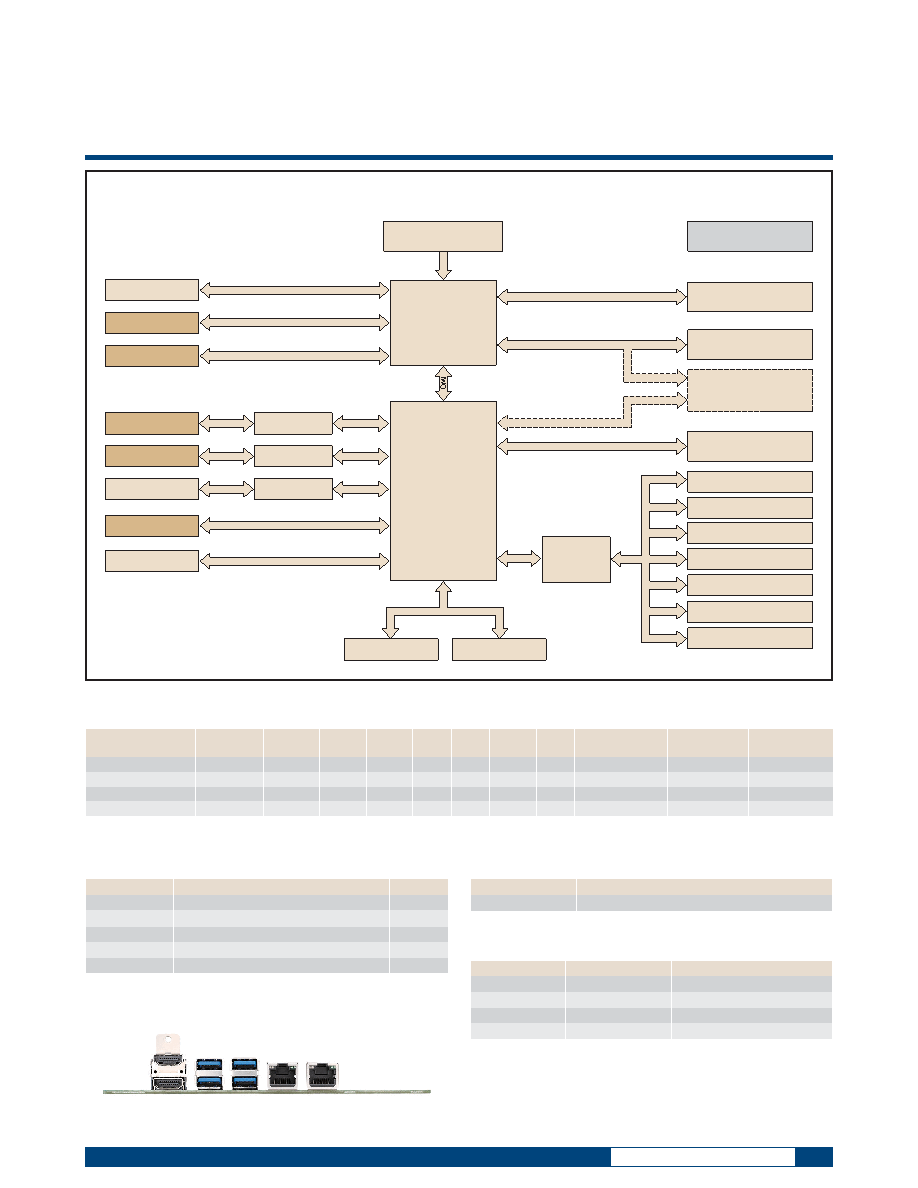

Block Diagram

MIO-4370

Ordering Information

Part No.

CPU

Core

Max

Freq.

Base

Freq.

TDP

vPro

PCH

ECC

M.2 Extension1

Thermal

Solution

Operating

Temperature

(TBD)

i9-12900TE

16 (8+8)

4.8 GHz 1.1 GHz 35W

Yes

R680E

Yes

2x M-Key + E-Key

Active Cooler

0 ~ 60 °C

(TBD)

i7-12700TE

12 (8+4)

4.7 GHz 1.4 GHz 35W

Yes

R680E

Yes

2x M-Key + E-Key

Active Cooler

0 ~ 60 °C

(TBD)

i5-12500TE

6 (6+0)

4.3 GHz 1.9 GHz 35W

Yes

R680E

Yes

2x M-Key + E-Key

Active Cooler

0 ~ 60 °C

(TBD)

i3-12100TE

4 (4+0)

4.0 GHz 2.1 GHz 35W

No

R680E

Yes

2x M-Key + E-Key

Active Cooler

0 ~ 60 °C

Note 1 : 1x M-Key is BOM optional to B-key to support 4G/LTE module by request.

Packing List

Part No.

Description

Quantity

MIO-4370 SBC

1

(TBD)

Startup Manual

1

1700019584-01

Audio Cable

1

1700030404-01

COM Port Cable

2

1700030406-01

USB 2.0 Cable

1

Rear I/O View

Optional Accessories

Part No.

Description

1970004564T010

CPU Cooler, for TDP 35W, 75(W)x75L)x25(H)mm

Embedded OS/API

OS

Part No.

Description

Windows 10 LTSC

TBD

64-bit (UEFI mode only)

Ubuntu 20.04 LTS

TBD

Ubuntu Desktop 20.04 LTS 64-bit

Software API

Website Download

SUSI v4.0

Yocto BSP

Support by Request

Yocto BSP and Test Image

DDI

12th Gen. Intel® Core™

Processors

(LGA1700)

(Alder Lake-S)

Intel® R680E Chipset

Embedded

Controller

EIO-201

DDR5-4800 SODIMM

Single-CH, Up to 32GB

eDP

PCIex1

2.5GbE

Intel I225

PCIex1

2.5GbE

Intel I225

HDA

Line-in /Out / MIC

2 x USB 2.0

ALC888s

TPM2.0

BIOS

DDI

PCIex4 Gen.4

PCIex4 Gen.4

HDMI

DDI

HDMI

M.2 M-key

2280 NVMe SSD

PCIex1 + USB 2.0

M.2 E-key

2230 WiFi+BT

Front Panel

Smart Fan

GPIO 8-bit

I2C (Opt: SMBus)

COM1: RS-232/422/485

M.2 M-key

2280 NVMe SSD

Option to:

M.2 B-Key

3042 LTE w/ Nano SIM

ATX/AT

12V only

USB3.2 x 4/USB2.0 x 4

USB2.0 x 2

4 x USB 3.2 Gen1x1

eSPI

SPI

COM2: RS-232/422/485

CANBus

USB 2.0

PCIex1
