MI/O Extension SBCs, Modules and Chassis

Features

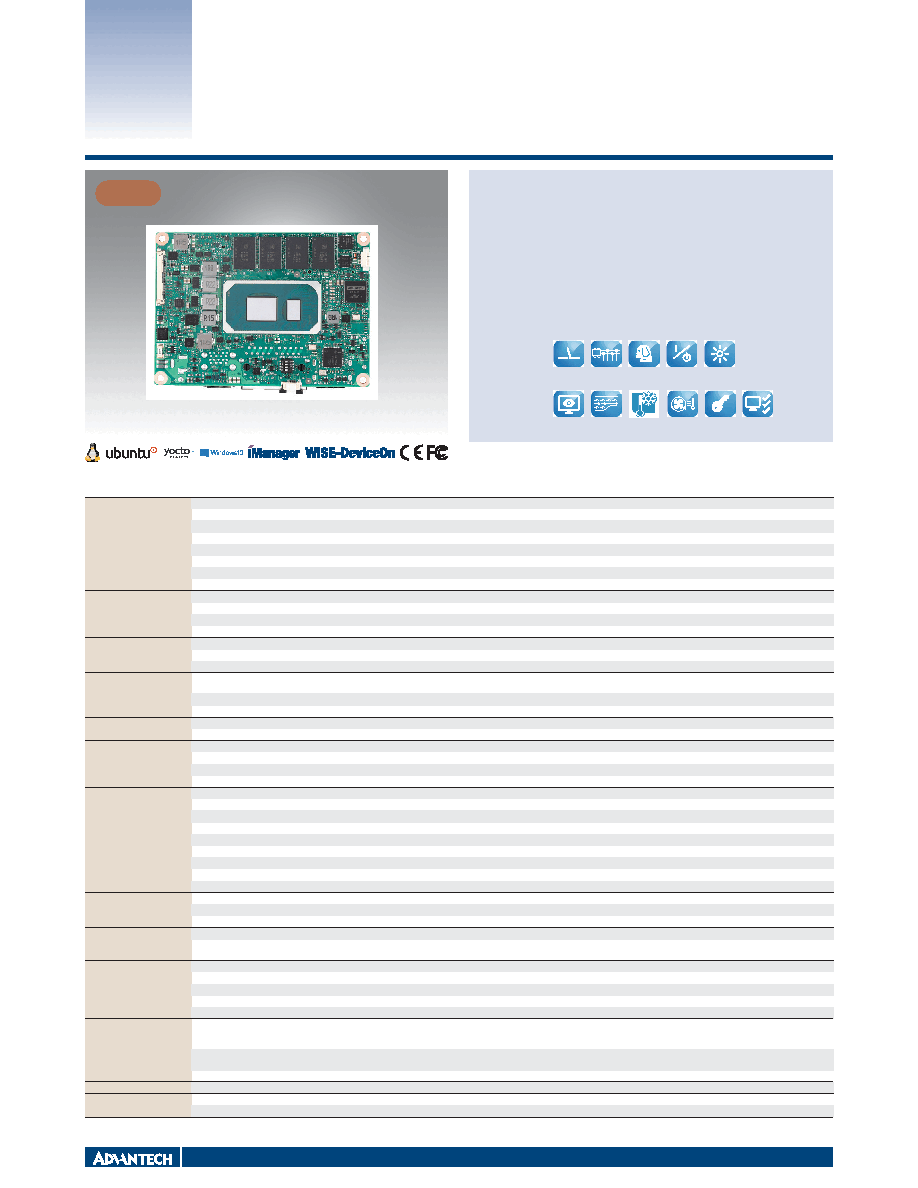

MIO-2375

Features

11th Gen. Intel® Core™ i7/i5/i3/Celeron

U-series Pico-ITX SBC

ƒ

11th Gen. Intel® Core™ Processor with Quad/Dual Cores, TDP 15W

ƒ

On-board LPDDR4x-4267 up to 32G with IBECC for Industrial Sku

ƒ

Dual independent display: eDP/MIPI-DSI, DP up to 8K

ƒ

2 GbE, 2 USB 3.2, COM Port, SMBus/I2C

ƒ

Expansion: M.2 E-Key, M.2 B-Key/M-Key NVMe x2

ƒ

Supports iManager & Software APIs, WISE-DeviceOn, and Edge AI Suite

Specifications

Platform

Processor

i7-1185G7E

i7-1185GRE

i5-1145G7E

i3-1115G4E

Celeron® 6305E

Max. Frequency

4.40 GHz

4.40 GHz

4.10 GHz

3.90 GHz

N/A

Base Frequency

1.80 GHz

1.80 GHz

1.50 GHz

2.20 GHz

1.80GHz

Core/Tread

4/8

4/8

4/8

2/4

2/2

LLC

12MB

12MB

8MB

6MB

4MB

CPU TDP

15W

15W

15W

15W

15W

Chipset

Intel 300 Series Chipset (SoC Integrated)

BIOS

AMI EFI 256Mbit

Memory

Technology

LPDDR4x-4267

LPDDR4x-4267

LPDDR4x-4267

LPDDR4x-3733

LPDDR4x-3733

Max. Capacity

Up to 32GB

Channel/Socket

Single or Dual Channels / Onboard

ECC Support

No

Yes

No

No

No

Graphics

Controller

Integrated Intel® Iris® Xe Graphics

Intel® UHD Graphics

Intel® UHD Graphics

Max. Frequency

1.35 GHz

1.35 GHz

1.30 GHz

1.25 GHz

1.25 GHz

3D/HW Acceleration

DX12, OGL4.0, OCL1.2, HW Encode: H.265/HEVC, H.264, MPEG2, HW Decode: H.264

Display I/F

LCD

eDP1.4 HBR3, up to 4096x2304x36bpp@60Hz; with DSC 7680x4320x30bpp@60 Hz

Optional MIPI-DSI 2.5GHz, up to 3200x2000x24bpp@60Hz; with DSC 5120x3200x24bpp@60 Hz

HDMI/DP

1 x DP1.4 (DP++), up to 4096x2304x36bpp@60Hz; with DSC 7680x4320x30bpp@60 Hz

Multiple Display

Dual simultaneous displays by eDP/MIPI-DSI + DP

Ethernet

Controller

LAN1: Intel 219LM, LAN2: Intel 210AT/IT

Speed

10/100/1000 Mbps

External I/O

Ethernet

2 x RJ-45

VGA/HDMI/DP

-/-/1

USB3.2/USB2.0

2/-

Power DC-Jack

Optional

Internal I/O

SATA

1 x SATA GenIII 6.0Gbps

USB2.0

2

Serial Bus

I2C (default), SMBus*(optional)

COM Port

1 x RS-232/422/485, 1 x RS-232

GPIO

4-bit general purpose input output I/O

Audio

Realtek ALC888s, Line-in/Line-out/MIC

Invertor

12V

Fan

1 smart fan 4-wire @ 12V

Front Panel Control

Power-on, Reset, Buzzer, SATA LED, CaseOpen

Board Feature

Watchdog Timer

65536 level, 0~65535 sec

TPM

TPM2.0

iManager 3.0

SW API for Hardware Monitor, Smart Fan Control, Brightness Control, I2C, GPIO, WDT

Expansion

M.2 E-Key

1 x E-Key 2230 (PCIe x1, USB2.0)

M.2 B-Key/ M.2 M-Key

1 x B-Key 3042/2242 (SATA x1, USB2.0 x1) w/ Nano-SIM

*Optional 1 x M-Key 2242 (PCIe x2 NVMe)

Power

Supply Voltage

Vin: DC 12V ± 10%; RTC Battery: Lithium 3V/210mAH

Connector

ATX 2pin 180D, optional DC-Jack

Power Management

AT, ATX

Max. Consumption

20.491W

21.347W

20.411W

21.198W

Idle Consumption

17.368W

8.820W

16.872W

13.991W

Environment

Temperature

Operating: Standard: 0 ~ 60 °C (32 ~ 140 °F)

Operating: Extend: -40 ~ 85 °C (-40 ~ 185 °F) for Industrial Sku

Storage: -40 ~ 85 °C (-40 ~ 185 °F)

Humidity

Operating: 40 °C @ 95% relative humidity, non-condensing

Storage: 60 °C @ 95%relative humidity, non-condensing

Vibration Resistance

3.5 Grms

Certification

EMC

CE, FCC Class B

Mechanical

Dimensions

100 x 72 mm (3.9" x 2.8")

Net Weight

80g

*Note: Support by request

Software APIs:

GPIO

SMBus/I2C Watch Dog

Timer

Backlight

On/Off

Brightness

Hardware

Monitor

System

Thro�ling

Thermal

Protec�on

Smart Fan

Data

Security

System Info

NEW

All product specifications are subject to change without notice.

Last updated: 16-Jun-2022
