General Panel PCs

Features

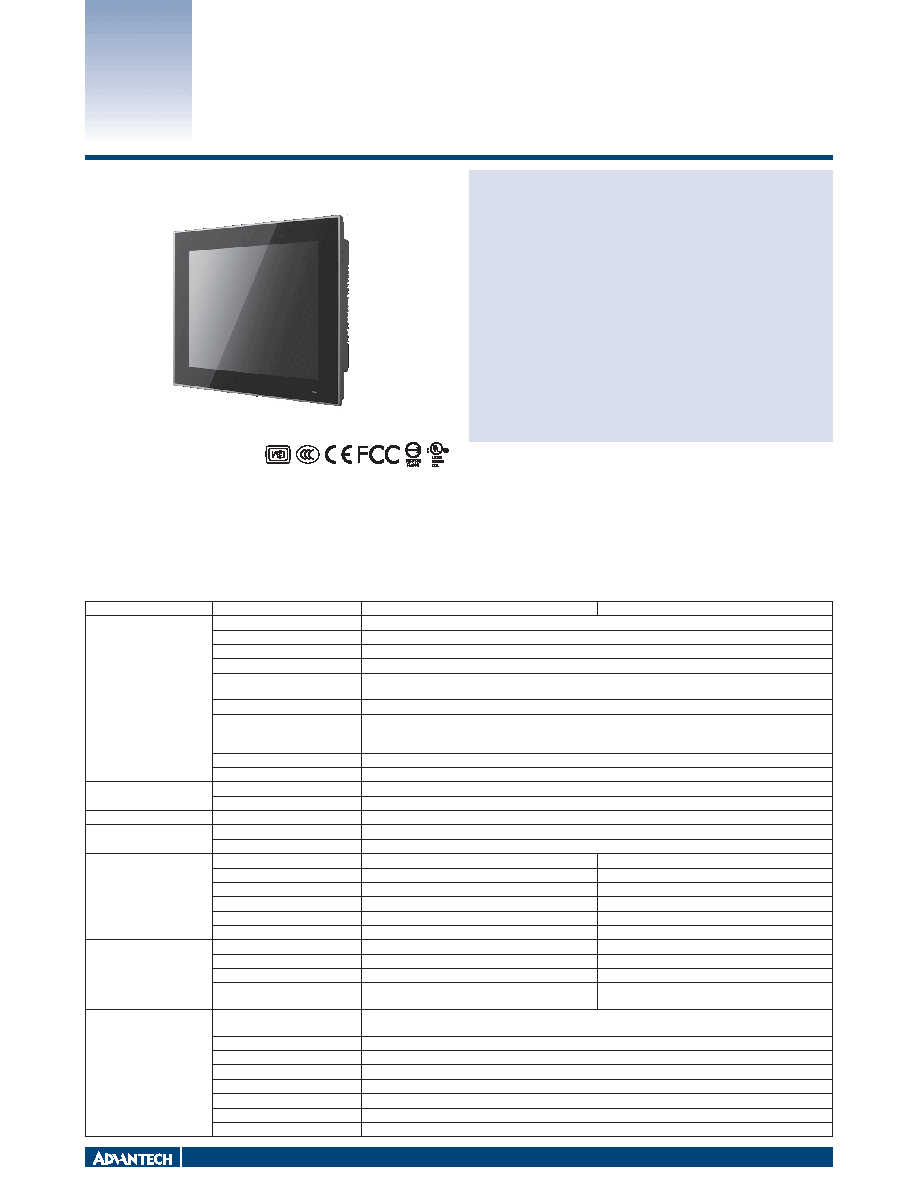

PPC-3100S

10.4" Fanless Panel PC with

Intel® Celeron® N2930 Processor

ƒ

Industrial-grade 10.4" SVGA/XGA TFT LCD with 30K backlight lifetime

ƒ

Durable true-flat touchscreen with 5-wire resistive/projected capacitive touch

control

ƒ

Intel® Celeron® N2930 quad-core, 1.83 GHz, processor

ƒ

Up to 8 GB DDR3L SDRAM

ƒ

1 x RS-232, 1 x RS-232/422/485, 2 x USB 2.0, and 1 x USB 3.0

ƒ

Compact, fanless design with solid aluminum alloy enclosure and IP66-rated

front panel

ƒ

Supports E-Eye monitoring and protection

ƒ

Supports expansion via full-size mini PCIe

ƒ

Supports Windows Embedded and Android OS

ƒ

Supports VESA 75 x 75 mounting holes

Introduction

The PPC-3100S is a high-value, ultra-slim panel PC equipped with a 10.4" SVGA/XGA TFT LCD, and low-power Intel® Celeron® N2930, 1.83 GHz, processor to provide high-

performance computing in a compact and fanless system. For high durability and functionality, the PPC-3100S features an IP66-rated front panel, true-flat touchscreen with 5-wire

resistive/projected capacitive touch, two serial ports, three USB ports, and two GbE LAN ports, making it suitable for diverse industrial applications. To provide further system monitoring

and protection capabilities, e-Eye technology is provided at the rear of the panel PC for indicating the system operating status to facilitate detection and analysis.

Specifications

PPC-3100S-Rxx

PPC-3100S-Pxx

System

CPU

Intel® Celeron® N2930 quad core

Frequency

1.83 GHz

L2 Cache

2 MB

Memory

1 x SODIMM DDR3L 1333 MHz (max. 8 GB)

Storage

1 x 2.5" SATA Bay bay (optional; requires a bracket module for installation)

1 x mSATA Bay (default)

Network (LAN)

2 x 10/100/1000 Mbps Ethernet (Intel I211-AT/I210AT A ver. or Realtek 8119i B ver.)

I/O

2 x Serial ports: 1 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS)

2 x USB 2.0, 1 x USB 3.0 (for PPC-3100S-Rxx)

1 x USB 2.0, 1 x USB 3.0 (for PPC-3100S-Pxx)

Expansion

1 x Full-size mini PCIe slot

Watchdog Timer

255 timer levels, set up by software

Physical Characteristics

Dimensions

272 x 217 x 46 mm (10.7 x 8.5 x 1.8 in)

Weight

1.9 kg (4.18 lb)

OS Support

OS Support

Microsoft® Windows 7(32/64-bit)/10(64-bit), WES7P, WEC7, Windows 10 IOT LTSC, Linux, Android 6.0

Power Consumption

Input Voltage

12 ~ 24 VDC

Power Consumption

16W (Burn-in test 7.0 in Windows 7, 32-bit)

LCD

Display Type

10.4" TFT LCD (LED backlight)

10.4" TFT LCD (LED backlight)

Resolution

800 x 600

1024 x 768

Viewing Angle

80 (left), 80 (right), 70 (up), 70 (down)

88 (left), 88 (right), 88 (up), 88 (down)

Luminance (cd/m2)

400

350

Contrast Ratio

700

1200

Backlight Lifetime

30,000 hr (min.)

30,000 hr (min.)

Touchscreen

Touch Type

ELO 5-wire resistive

5-point multi-touch projected capacitive

Light Transmission

80±5% at 550nm wavelength

88±2%

Controller

RS232 interface

USB interface

Durability/Surface Hardness

Greater than 35million touches in one location without

failure

Cover glass > 7H

Environment

Operating Temperature

0 ~ 50 °C (32 ~ 122 °F) with SSD

0 ~ 40 °C (32 ~ 104 °F) with HDD (with the HDD temperature more than or equal to 65 °C)

Storage Temperature

-40 ~ 60 °C (-40 ~ 140 °F)

Relative Humidity

10 ~ 95% @ 40 °C (non-condensing)

Shock

Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27

Vibration

Operating Random Vibration Test 5 ~ 500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64

EMC

CE, FCC Class B, BSMI

Safety

CB, CCC, BSMI, UL

Front Panel Protection

IP66 compliant

All product specifications are subject to change without notice.

Last updated: 1-Aug-2022
