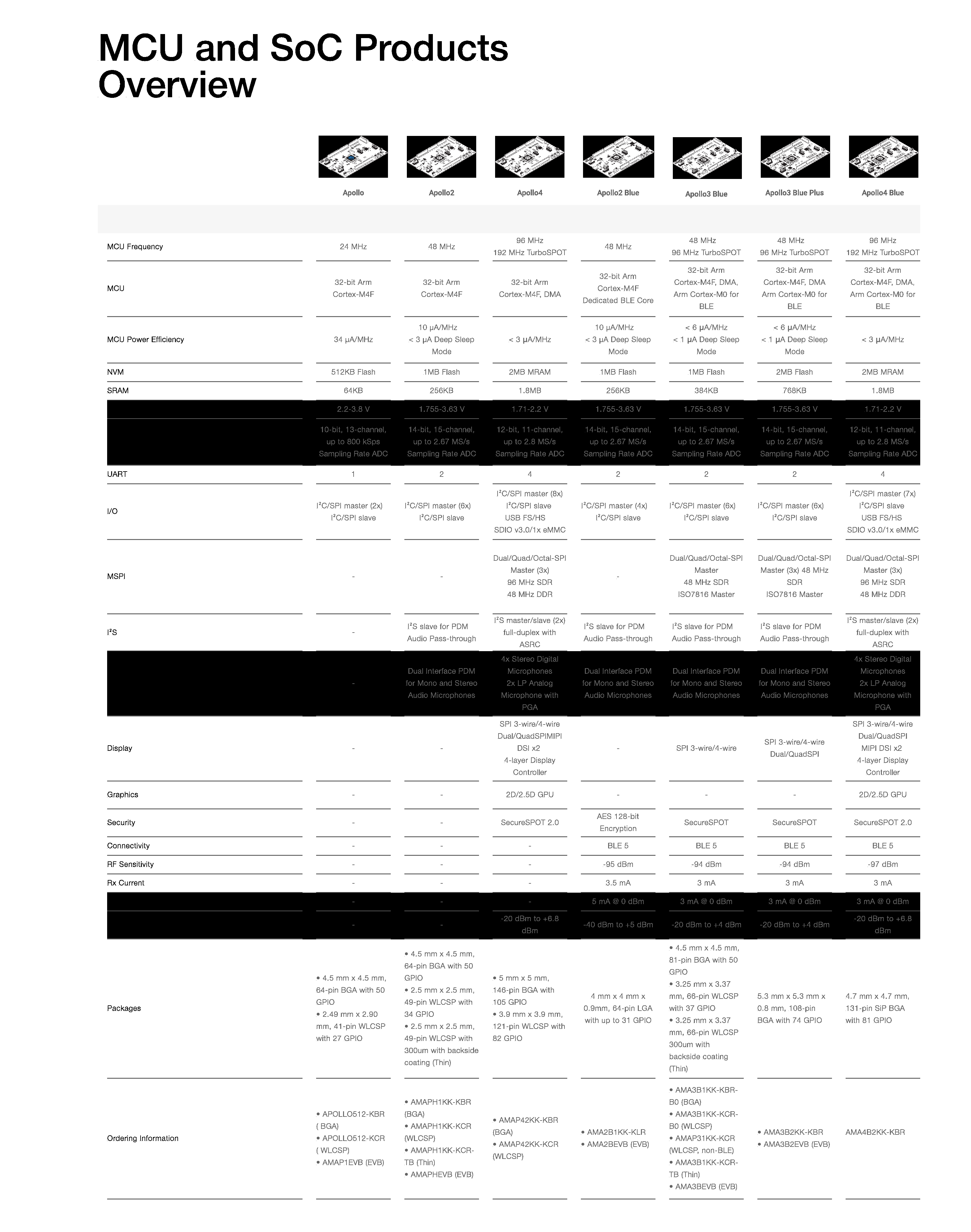

MCU and SoC Products

Overview

Apollo

Apollo2

Apollo4

Apollo2 Blue

Apollo3 Blue

Apollo3 Blue Plus

Apollo4 Blue

MCU Frequency

24 MHz

48 MHz

96 MHz

192 MHz TurboSPOT

48 MHz

96 MHz TurboSPOT

48 MHz

96 MHz TurboSPOT

96 MHz

192 MHz TurboSPOT

MCU

32-bit Arm

Cortex-M4F

32-bit Arm

Cortex-M4F

32-bit Arm

Cortex-M4F, DMA

32-bit Arm

Cortex-M4F

Dedicated BLE Core

32-bit Arm

Cortex-M4F, DMA,

Arm Cortex-M0 for

BLE

32-bit Arm

Cortex-M4F, DMA

Arm Cortex-M0 for

BLE

32-bit Arm

Cortex-M4F, DMA,

Arm Cortex-M0 for

BLE

MCU Power Efficiency

34 µA/MHz

10 µA/MHz

< 3 µA Deep Sleep

Mode

< 3 μA/MHz

10 µA/MHz

< 3 µA Deep Sleep

Mode

< 6 μA/MHz

< 1 μA Deep Sleep

Mode

< 6 μA/MHz

< 1 μA Deep Sleep

Mode

< 3 μA/MHz

NVM

512KB Flash

1MB Flash

2MB MRAM

1MB Flash

2MB Flash

2MB MRAM

SRAM

64KB

256KB

1.8MB

256KB

384KB

768KB

1.8MB

Voltage

2.2-3.8 V

1.755-3.63 V

1.71-2.2 V

1.755-3.63 V

1.71-2.2 V

ADC

10-bit, 13-channel,

up to 800 kSps

Sampling Rate ADC

14-bit, 15-channel,

up to 2.67 MS/s

Sampling Rate ADC

12-bit, 11-channel,

up to 2.8 MS/s

Sampling Rate ADC

14-bit, 15-channel,

up to 2.67 MS/s

Sampling Rate ADC

14-bit, 15-channel,

up to 2.67 MS/s

Sampling Rate ADC

14-bit, 15-channel,

up to 2.67 MS/s

Sampling Rate ADC

12-bit, 11-channel,

up to 2.8 MS/s

Sampling Rate ADC

UART

1

2

4

2

4

I/O

I2C/SPI master (2x)

I2C/SPI slave

I2C/SPI master (6x)

I2C/SPI slave

I2C/SPI master (8x)

I2C/SPI slave

USB FS/HS

SDIO v3.0/1x eMMC

I2C/SPI master (4x)

I2C/SPI slave

I2C/SPI master (6x)

I2C/SPI slave

I2C/SPI master (6x)

I2C/SPI slave

I2C/SPI master (7x)

I2C/SPI slave

USB FS/HS

SDIO v3.0/1x eMMC

MSPI

-

Dual/Quad/Octal-SPI

Master (3x)

96 MHz SDR

48 MHz DDR

-

Dual/Quad/Octal-SPI

Master

48 MHz SDR

ISO7816 Master

Dual/Quad/Octal-SPI

Master (3x) 48 MHz

SDR

ISO7816 Master

Dual/Quad/Octal-SPI

Master (3x)

96 MHz SDR

48 MHz DDR

I2S

-

I2S slave for PDM

Audio Pass-through

I2S master/slave (2x)

full-duplex with

ASRC

I2S slave for PDM

Audio Pass-through

I2S slave for PDM

Audio Pass-through

I2S slave for PDM

Audio Pass-through

I2S master/slave (2x)

full-duplex with

ASRC

Audio

-

Dual Interface PDM

for Mono and Stereo

Audio Microphones

4x Stereo Digital

Microphones

2x LP Analog

Microphone with

PGA

Dual Interface PDM

for Mono and Stereo

Audio Microphones

Dual Interface PDM

for Mono and Stereo

Audio Microphones

Dual Interface PDM

for Mono and Stereo

Audio Microphones

4x Stereo Digital

Microphones

2x LP Analog

Microphone with

PGA

Display

-

SPI 3-wire/4-wire

Dual/QuadSPIMIPI

DSI x2

4-layer Display

Controller

-

SPI 3-wire/4-wire

Dual/QuadSPI

SPI 3-wire/4-wire

Dual/QuadSPI

MIPI DSI x2

4-layer Display

Controller

Graphics

-

2D/2.5D GPU

-

2D/2.5D GPU

Security

-

SecureSPOT 2.0

AES 128-bit

Encryption

SecureSPOT

SecureSPOT 2.0

Connectivity

-

BLE 5

RF Sensitivity

-

-95 dBm

-94 dBm

-97 dBm

Rx Current

-

3.5 mA

3 mA

Tx Current

-

5 mA @ 0 dBm

3 mA @ 0 dBm

Tx Output Power

-

-20 dBm to +6.8

dBm

-40 dBm to +5 dBm

-20 dBm to +4 dBm

-20 dBm to +6.8

dBm

Packages

• 4.5 mm x 4.5 mm,

64-pin BGA with 50

GPIO

• 2.49 mm x 2.90

mm, 41-pin WLCSP

with 27 GPIO

• 4.5 mm x 4.5 mm,

64-pin BGA with 50

GPIO

• 2.5 mm x 2.5 mm,

49-pin WLCSP with

34 GPIO

• 2.5 mm x 2.5 mm,

49-pin WLCSP with

300um with backside

coating (Thin)

• 5 mm x 5 mm,

146-pin BGA with

105 GPIO

• 3.9 mm x 3.9 mm,

121-pin WLCSP with

82 GPIO

4 mm x 4 mm x

0.9mm, 64-pin LGA

with up to 31 GPIO

• 4.5 mm x 4.5 mm,

81-pin BGA with 50

GPIO

• 3.25 mm x 3.37

mm, 66-pin WLCSP

with 37 GPIO

• 3.25 mm x 3.37

mm, 66-pin WLCSP

300um with

backside coating

(Thin)

5.3 mm x 5.3 mm x

0.8 mm, 108-pin

BGA with 74 GPIO

4.7 mm x 4.7 mm,

131-pin SiP BGA

with 81 GPIO

Ordering Information

• APOLLO512-KBR

( BGA)

• APOLLO512-KCR

( WLCSP)

• AMAP1EVB (EVB)

• AMAPH1KK-KBR

(BGA)

• AMAPH1KK-KCR

(WLCSP)

• AMAPH1KK-KCR-

TB (Thin)

• AMAPHEVB (EVB)

• AMAP42KK-KBR

(BGA)

• AMAP42KK-KCR

(WLCSP)

• AMA2B1KK-KLR

• AMA2BEVB (EVB)

• AMA3B1KK-KBR-

B0 (BGA)

• AMA3B1KK-KCR-

B0 (WLCSP)

• AMAP31KK-KCR

(WLCSP, non-BLE)

• AMA3B1KK-KCR-

TB (Thin)

• AMA3BEVB (EVB)

• AMA3B2KK-KBR

• AMA3B2EVB (EVB)

AMA4B2KK-KBR
