RISC Computing Platforms

Features

RoHS

COMPLIANT

2002/95/EC

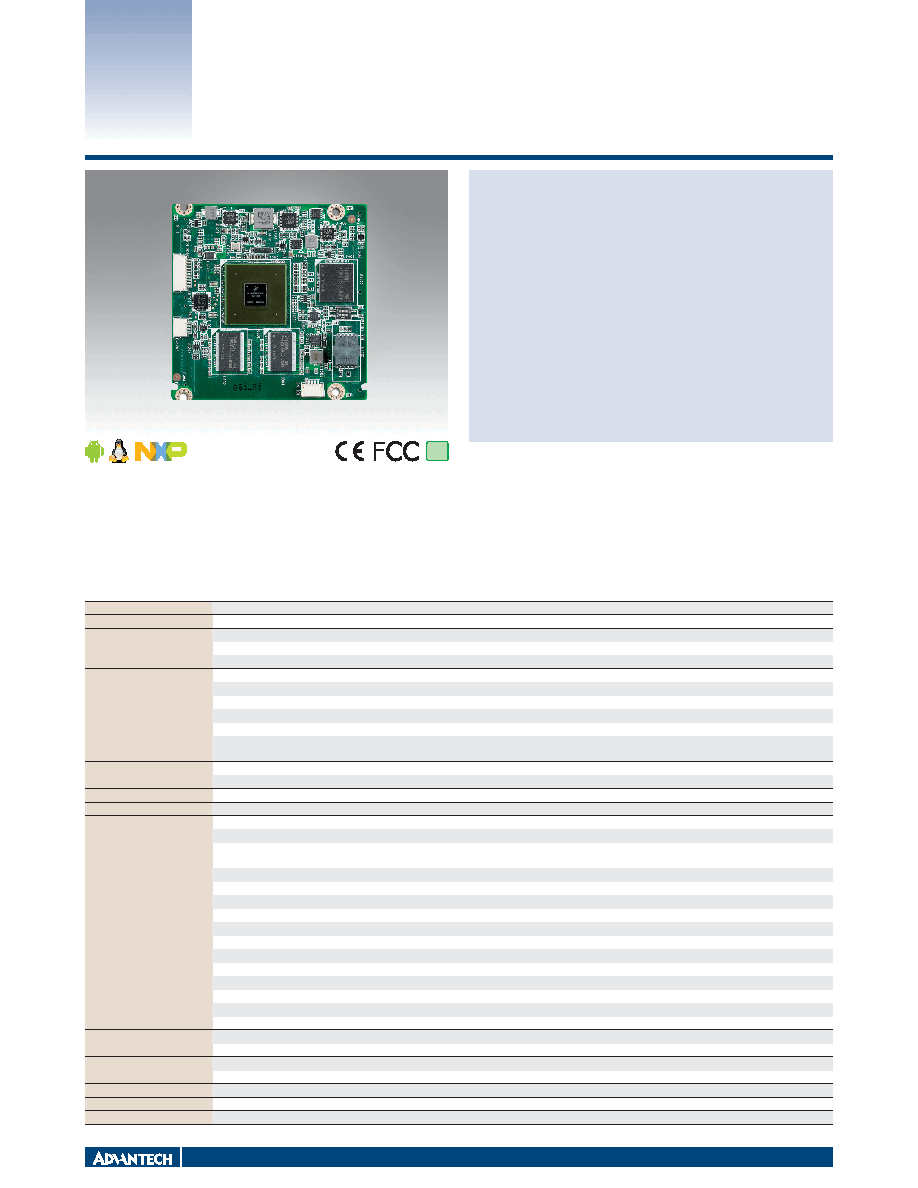

ROM-3420

NXP ARM® Cortex®-A9 i.MX6 RTX v2.0

module

ƒ

NXP ARM® Cortex®-A9 i.MX6 high performance processor

ƒ

Onbard DDR3 memory and eMMC 16GB

ƒ

Supports wide range power input 5V~24V

ƒ

Supports OpenGL ES 2.0 and OpenVG 1.1 hardware accelerators

ƒ

Supports full HD 1080p video decode and HD 1080p video encode hardware

engine

ƒ

Supports 1 PCIe, 1 GbE, 1 USB 2.0, 1 USB OTG2.0, 1 SATAII, 4 I2C, 1 I2S,

1 Camera in, 2 CANbus, 10 GPIO, System bus

ƒ

Low power consumption, fanless desgin

ƒ

Supports Linux and Android BSP

Introduction

ROM-3420 RTX2.0 module integrates an ARM Cortex A9 Dual 1 GHz NXP i.MX6 series ultra low power SoC and I/O solution with Linux. NXP i.MX6 supports 2D, 3D graphics acceleration,

and a full HD 1080P video decoding encoding hardware engine. ROM-3420 supports 5V~24V wide range power inputs and a wide temperature design for industrial applications.

ROM-3420 RTX2.0 module offers an Advantech ROM-DB3900 evaluation carrier board for easy integration and hardware design reference, and also provides a Linux BSP utility and

reference codes for application development and device integration.

Specifications

Form Factor

RTX v2.0

Processor System

CPU

NXP ARM Cortex-A9 i.MX6 1 GHz

Memory

Technology

DDR3 1066 MHz

Capacity

On-board DDR3 1 GB

Flash

16 GB eMMC NAND Flash for O.S. and 4 MB SPI NOR Flash for Advantech boot loader

Graphics

LVDS

1 Single 24-bit LVDS, 1366 x 768 at 60Hz

HDMI

1920 x 1080 at 60Hz

Parallel RGB

1 24-bit TTL, 1920 x 1200 at 60Hz

VGA

-

Graphics Engine

2 IPUs. OpenGL ES 2.0 for 3D, BitBlt for 2D and OpenVG 1.1

H/W Video Codec

Decoder: MPEG-4 ASP, H.264 HP, H.263, MPEG-2 MP, MJPEG BP

Encoder: MPEG-4 SP, H.264 BP, H.263, MJPEG BP

Ethernet

Chipset

NXP i.MX6 integrated RGMII

Speed

1 x 10/100/1000 Mbps

RTC

RTC

Yes

WatchDog Timer

256-level timer interval, from 0 ~ 128 sec

I/O

PCIe

1 PCIe x 1

SATA

1 SATA II

USB

1 USB 2.0,

1 USB 2.0 OTG

Audio

I2S

SPDIF

-

SDIO

1

Serial Port

3 UART (3 x 4 wire w / 3.3V)

SPI

2

CAN

2 CAN bus 2.0B

GPIO

10

I2C

4

Camera Input

1 MIPI v1.0, 4 x Lane

System Bus

Address: 26 bits, Data: 16 bits

Touch

-

Keypad

-

Power

Power Supply Voltage

5 ~ 24 V

Power Consumption

6.25W (Max)

Environment

Operating Temperature

0 ~ 60 °C/ -40 ~ 85 °C

Operating Humidity

0% ~ 95% relative humidity, non-condensing

Mechanical

Dimensions (W x D)

68 x 68 mm

Operation system

Linux & Android

Certifications

CE/FCC Class B

All product specifications are subject to change without notice.

Last updated: 16-Jun-2022
