RISC Computing Platforms

Features

SMARC 2.0/2.1 Computer-on-Module

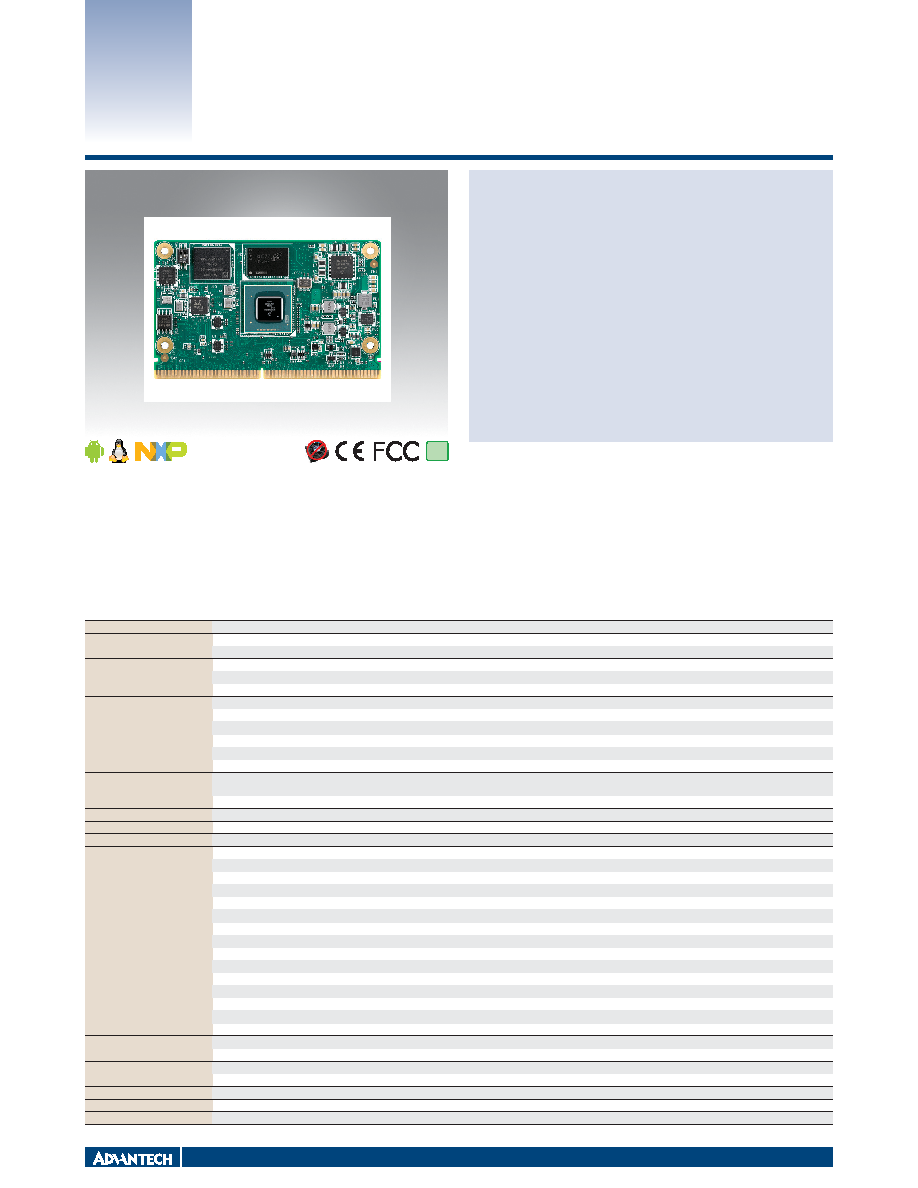

ROM-5720

ƒ

NXP i.MX 8M processor with dual or quad Arm Cortex A53 cores

ƒ

1 x Arm Cortex-M4 core

ƒ

Onboard 2GB LPDDR4 memory and eMMC 16GB

ƒ

1 x HDMI2.0 up to 4096 x 2160, 1 x 4-Lane MIPI DSI

ƒ

2 x USB3.0, 4 x USB2.0, 4 x UART, 4 x I2C, 12 x GPIO,

1 x PCIe2.0, 1 x 4-lane MIPI CSI camera input, 1 x 2-lane MIPI CSI camera

input and 2 x Gigabit LAN

ƒ

Supports OpenGL ES 3.1/3.0/2.0/1.1, Open CL 1.2, and Vulkan hardware

accelerators

ƒ

Supports 4Kp60 HEVC/H.265 decoding with HDR

ƒ

Low power consumption design

ƒ

Supports Linux and Android BSP

Introduction

Advantech ROM-5720 SMARC 2.0/2.1 Computer-on-Module is powered by NXP i.MX8M SOC which includes dual and quad-core Arm Cortex-A53 processors in combination with

one Cortex-M4 real time processor and the Vivante GC7000 Lite 3D graphics engine. It provides USB3.0, two Gigabit Ethernet, two MIPI-CSI, PCI Express, and HDMI2.0 up to 4096

x 2160 at 60 Hz and MIPI-DSI for embedded applications. It's the ideal solution for transportation, infotainment, vending, Medical.

ROM-5720 is paired with the Advantech ROM-DB5901 SMARC2.0 development board for faster end product peripheral integration and time-to-market. The reference schematics and

layout checklist documentations for carrier board development will be provided along with the open-sourced Linux BSP, test utilities, hardware design utilities and reference drivers.

Specifications

Form Factor

SMARC 2.0 & SMARC 2.1 compliance

Processor System

CPU

NXP i.MX 8M dual or quad Arm Cortex A53 cores, up to 1.5GHz

MCU

1 x Arm Cortex-M4 core

Memory

Technology

LPDDR4-1866 MHz

Capacity

Onboard 2GB LPDDR4

Flash

16 GB eMMC NAND Flash for O.S. and 8 MB QSPI NOR Flash for Advantech boot loader

Graphics

LVDS/MIPI DSI

1 x 4-lane MIPI DSI, up to 1920 x 1080 @ 60Hz

HDMI

1 x HDMI2.0, up to 4096 x 2160 at 60 Hz

Parallel RGB

-

VGA

-

Graphics Engine

Vivante GC7000 Lite. supports OpenGL ES 1.1, 2.0, 3.0, 3.1, Open CL 1.2, and Vulkan

H/W Video Codec

Decoder: HEVC/H.265(4Kp60), VP9(4Kp60), H.264(4Kp30), MPEG-2, MPEG-4p2, VC-1, VP8, RV9, AVS, MJPEG, H.263

Ethernet

Chipset

1 x NXP i.MX8M Integrated RGMII;

1 x RTL8119I-CG Giga LAN controller or 1 x PCIe x 1-lane(option)

Speed

2 x 10/100/1000 Mbps

RTC

RTC

Yes

WatchDog Timer

1~6553s, default 60s, power on/off 1s

Security

TPM 2.0

I/O

PCIe

1 x PCIe 2.0

SATA

-

USB

2 USB3.0, 4 USB2.0,1 USB2.0 OTG

Audio

SPDIF

-

SDIO

1

Serial Port

1 x 4-wire UART (H/W flow control) and 3 x 2-wire UART

SPI

1

CAN

-

GPIO

12

4 with interrupt

Camera Input

1 x 4-lane MIPI CSI, 1 x 2-lane MIPI CSI

System Bus

-

Touch

-

Keypad

-

Power

Power Supply Voltage

Fixed 5V ± 5% DC source

Power Consumption

5.3W (Max)

Environment

Operating Temperature

0 ~ 60 °C/ -40 ~ 85 °C

Operating Humidity

5 ~ 95% relative humidity, non-condensing

Mechanical

Dimensions (W x D)

82 x 50 mm

Operation System

Linux & Android

Certifications

CE/FCC Class B

RoHS

COMPLIANT

2002/95/EC

All product specifications are subject to change without notice.

Last updated: 7-Jul-2022
