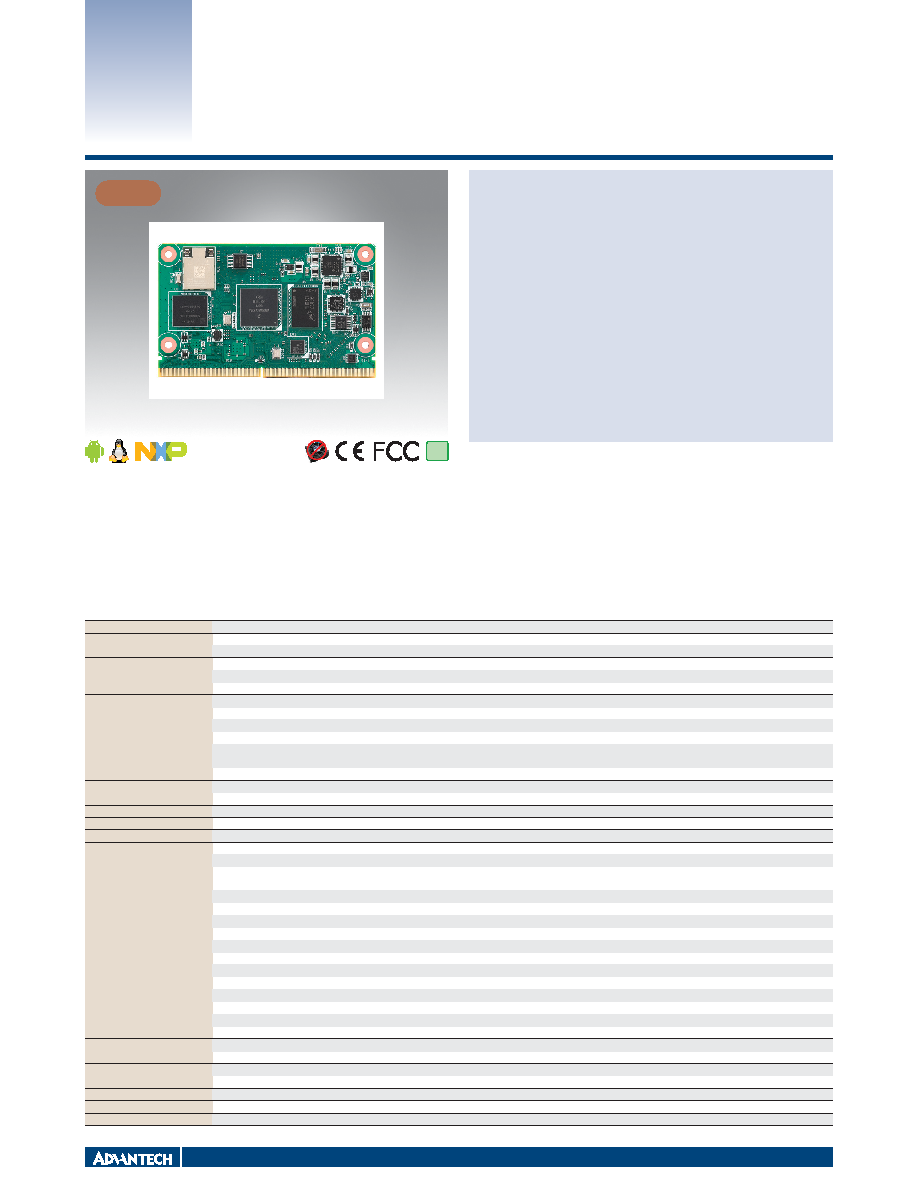

RISC Computing Platforms

Features

RoHS

COMPLIANT

2002/95/EC

SMARC 2.0/2.1 Computer-on-Module

ROM-5721

ƒ

NXP i.MX 8M Mini processor with up to 4 Arm Cortex A53 cores

ƒ

1 x Arm Cortex-M4 cores

ƒ

Onboard LPDDR4 memory and eMMC

ƒ

1 x 4 lane MIPI-CSI,1 x Dual channel LVDS or 1 x Display Port

ƒ

4 x USB2.0, 1 x USB 2.0 OTG, 4 x UART, 4 x I2C, 12 x GPIO, 1 x PCIe2.0,

1x Gigabit LAN

ƒ

Support OpenGL ES 2.0/1.1 by hardware accelerators

ƒ

Low power consumption design

ƒ

Support Linux and Android BSP

Introduction

Advantech ROM-5721 SMARC 2.0/2.1 Computer-on-Module is powered by NXP i.MX8M Mini SOC which includes up to 4 Arm Cortex-A53 cores in combination with one Cortex-M4

real time processor and Vivante GC320 , GC NanoUltra 3D graphics engine. It provides USB2.0, Gigabit Ethernet, MIPI-CSI, PCI Express, Dual channel LVDS shared with MIPI-DSI

for embedded applications.

ROM-5721 is paired with Advantech ROM-DB5901 carrier board for faster end product peripheral integration and time-to-market. The reference schematics and layout checklists

documentations for carrier board development will be provided along with the open-sourced Linux BSP, test utilities, hardware design utilities and reference drivers.

Specifications

Form Factor

SMARC2.0 & SMARC2.1 compliance

Processor System

CPU

NXP i.MX 8M Mini up to 4 Arm Cortex A53 cores, up to 1.8GHz

MCU

1 x Arm Cortex-M4 core

Memory

Technology

LPDDR4-1866

Capacity

Onboard 1GB/2GB LPDDR4

Flash

8/16 GB eMMC NAND Flash for O.S. and 8 MB QSPI NOR Flash for board information

Graphics

LVDS/MIPI DSI

1 x 4 lane MIPI-CSI,1 x Dual channel LVDS or 1 x Display Port up to 1080P

HDMI

-

Parallel RGB

-

VGA

-

Graphics Engine

Vivante GC320, GC NanoUltra 3D GPU

Support OpenGL ES 2.0, VG 1.1

H/W Video Codec

Decoder: H.265, H.264, VP8/9 1080p Encoder:H.264, VP8 1080p

Ethernet

Chipset

1 x NXP i.MX8M Mini GbE controller

Speed

10/100/1000 Mbps

RTC

RTC

Yes

WatchDog Timer

Yes

Security

TPM 2.0

I/O

PCIe

1 x PCIe 2.0

SATA

-

USB

4 USB 2.0

1 USB 2.0 OTG

Audio

SPDIF

-

SDIO

1

Serial Port

2 x 4-wire UART and 2 x 2-wire UART

SPI

2

CAN

-

GPIO

12

4

Camera Input

1 x 4-lane MIPI CSI

System Bus

-

Touch

-

Keypad

-

Power

Power Supply Voltage

Fixed 5V DC source and allow 3.3 V ~ 5.25 V operates directly from single level Lithium Ion cells

Power Consumption

3.45W*

Environment

Operating Temperature

0 ~ 60 °C/ -40 ~ 85 °C

Operating Humidity

5 ~ 95% relative humidity, non-condensing

Mechanical

Dimensions (W x D)

82 x 50 mm

Operation System

Linux & Android

Certifications

CE/FCC Class B

NEW

All product specifications are subject to change without notice.

Last updated: 7-Jul-2022
