RISC Computing Platforms

Features

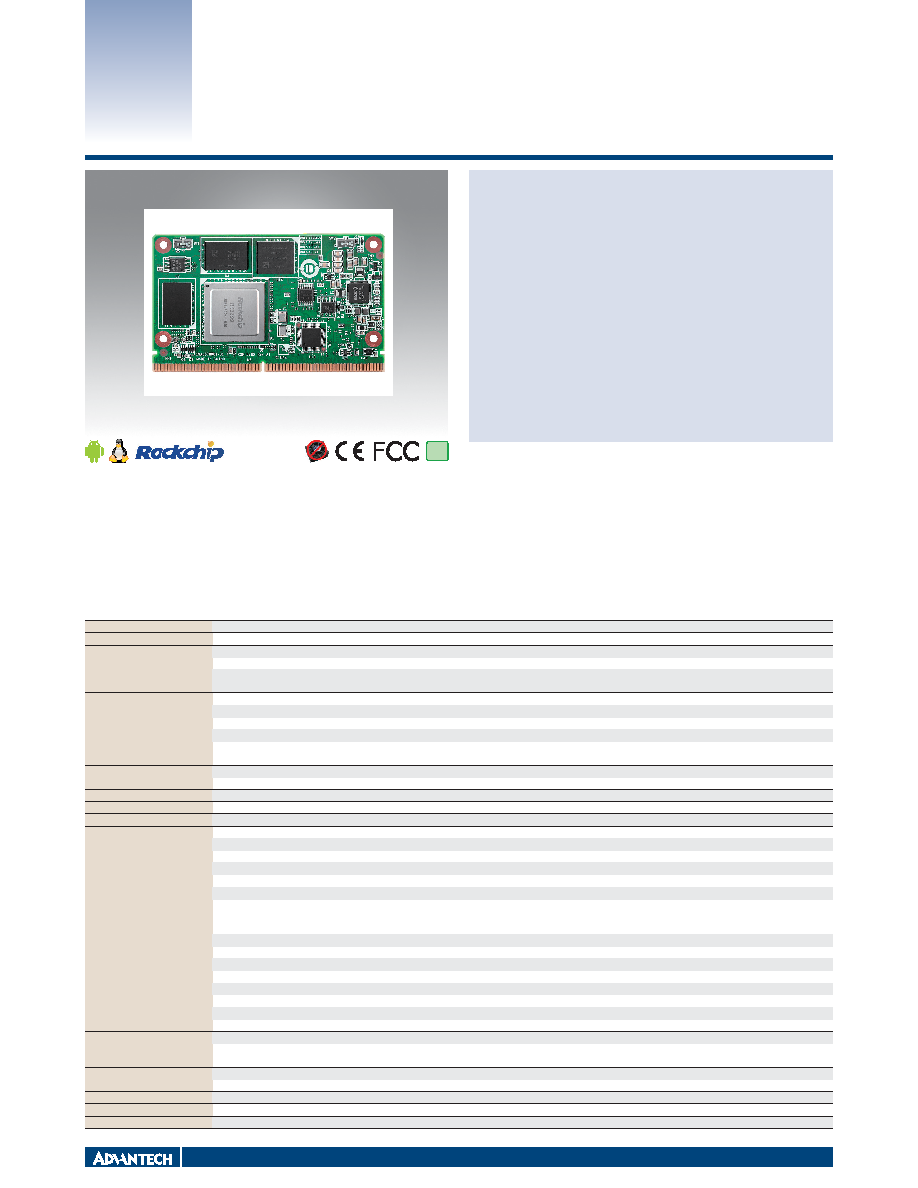

SMARC 2.1 Computer-on-Module

ROM-5780

ƒ

Rockchip RK3399 Arm dual Cortex-A72 and quad Cortex-A53 1.8 GHz

ƒ

Onboard 2/4GB LPDDR4 memory and 16/32GB eMMC

ƒ

Support HDMI2.0 4K, 1 x eDP, 1 x LVDS

ƒ

Support 4K H.264/H.265 Video decoder

ƒ

2 x USB3.0, 3 x USB2.0,1 x USB2,0 OTG, 3 x UART, 12 x GPIO

ƒ

1 x PCIe2.0, 1 x SATA, 2 x MIPI CSI, Gigabit LAN

ƒ

Support Linux Debian and Android

Introduction

Advantech ROM-5780 SMARC 2.1 Computer-on-Module is powered by Rockchip RK3399 SOC which includes dual-core Arm Cortex-A72 and quad-core Arm Cortex-A53 processors

and Arm Mali-T860MP4 3D graphics engine. It provides rich display interface: HDMI 4K@60Hz, eDP and LVDS to meet different requirement. It also features USB3.0, PCIe 2.0, SATA,

Gigabit Ethernet, MIPI-CSI for embedded applications. It is the ideal solution for POS, vending, infotainment, Medical.

ROM-5780 is paired with the Advantech ROM-DB5901 SMARC2.0 development board for faster end product peripheral integration and time-to-market. The reference schematics and

layout checklist documentations for carrier board development will be provided along with the open-sourced Linux BSP, test utilities, hardware design utilities and reference drivers.

Specifications

Form Factor

SMARC 2.1

Processor System

CPU

Rockchip RK3399 Arm dual-core Cortex-A72 and quad-core Cortex-A53, up to 1.8 GHz

Memory

Technology

LPDDR4- 3732 MT/s

Capacity

Onboard 2/4GB LPDDR4

Flash

16/32 GB eMMC NAND Flash for O.S. and boot loader;

8 MB SPI NOR Flash

Graphics

LVDS

1 x Single Channel 24-bits LVDS(Default) or 1 x Dual Channel 24-bits LVDS(Shared with eDP, by BOM Option)

HDMI

1 x HDMI2.0, up to 4096 x 2160

eDP

1 x eDP 1.3

Graphics Engine

Arm Mali-T860MP4 GPU, support OpenGL ES1.1/2.0/3.0, OpenCL1.2, DirectX11.1 etc.

H/W Video Codec

Decoder:H.265 up to 4Kx2K @ 60fps, H.264, H.263, VC-1, VP9, VP8, MVC ,MPEG-1/2/4

Encoder:H.264 UP to HP@level4.1, MVC and VP8

Ethernet

Chipset

1 x RTL8211FSI

Speed

1 x 10/100/1000 Mbps

RTC

RTC

Yes

WatchDog Timer

1~6553s, default 60s, power on/off 1s

Security

TPM2.0 (Optional)

I/O

PCIe

1 x PCIe 2.0 x 1

SATA

1

USB

2 USB3.0, 3 USB2.0,1 USB2.0 OTG

Audio

SPDIF

-

SDIO

1

Serial Port

1 x 2-wire UART/Debug by switch selection

1 x 2-wire UART

1 x 4-wire UART

SPI

1

CAN

-

GPIO

12

5

Camera Input

1 x 4-lane MIPI CSI, 1 x 2-lane MIPI CSI

System Bus

-

Touch

-

Keypad

-

Power

Power Supply Voltage

4.75~5.25V DC source

Power Consumption

8.52W @ 5V (Max)

4.13W @ 5V (Idle)

Environment

Operating Temperature

0 ~ 60 °C/ -20 ~ 85 °C

Operating Humidity

5 ~ 95% relative humidity, non-condensing

Mechanical

Dimensions (W x D)

82 x 50 mm

Operation System

Linux Debian 9/10 and Android 7.1/10.0

Certifications

CE/FCC Class B

RoHS

COMPLIANT

2002/95/EC

All product specifications are subject to change without notice.

Last updated: 7-Jul-2021
