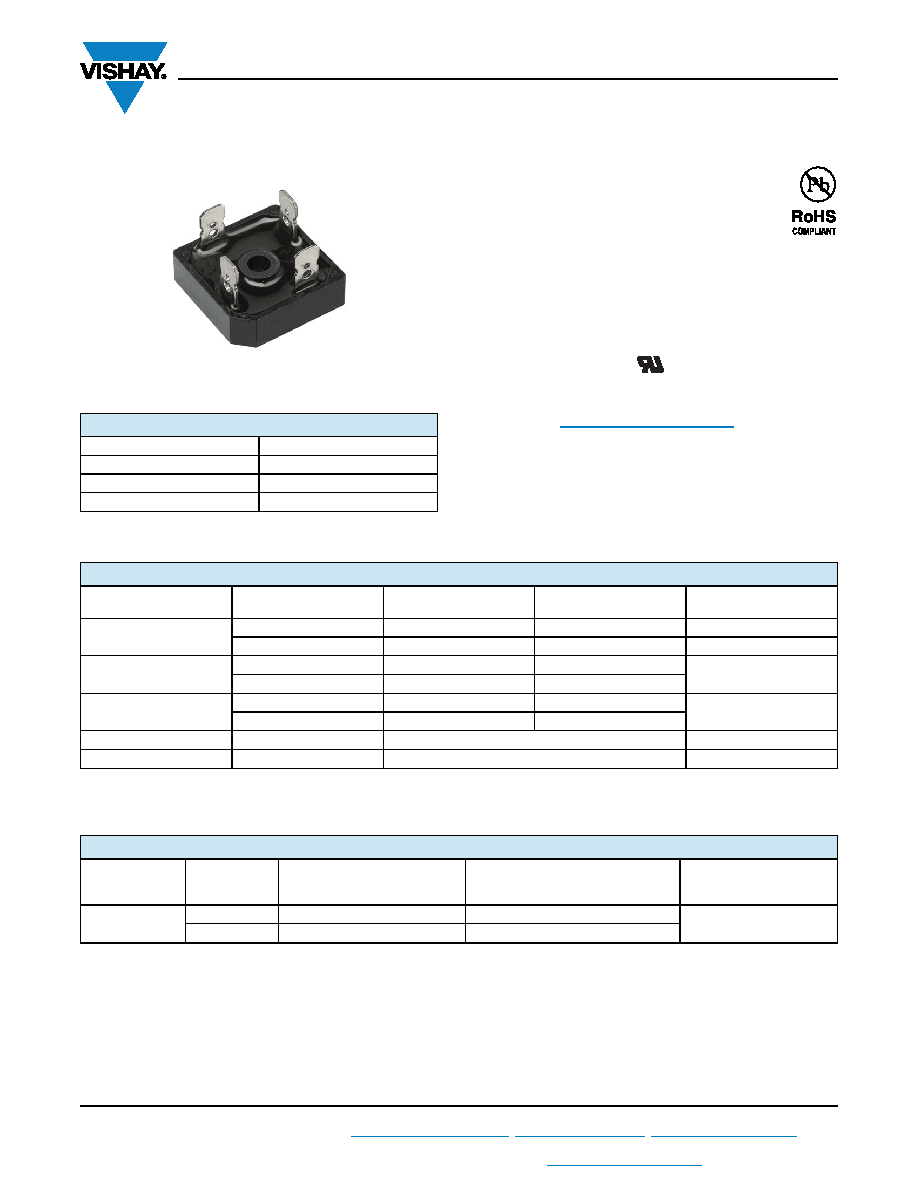

VS-MB High Voltage Series

www.vishay.com

Vishay Semiconductors

Revision: 15-Jan-2019

1

Document Number: 93564

For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

Single Phase Bridge Rectifier, 25 A, 35 A

FEATURES

• Universal, 3 way terminals:



push-on, wrap around or solder

• High thermal conductivity package, electrically

insulated case

• Center hole fixing

• Excellent power/volume ratio

• Nickel plated terminals solderable using lead (Pb)-free

solder;

solder

alloy

Sn/Ag/Cu

(SAC305);

solder

temperature 260 °C to 275 °C

• UL E300359 approved

• Designed and qualified for industrial and consumer level

• Material categorization: for definitions of compliance

please see www.vishay.com/doc?99912

DESCRIPTION

A range of extremely compact, encapsulated single phase

bridge rectifiers offering efficient and reliable operation.

They are intended for use in general purpose and

instrumentation applications.





ELECTRICAL SPECIFICATIONS

PRIMARY CHARACTERISTICS

IO

25 A, 35 A

VRRM

1400 V to 1600 V

Package

D-34

Circuit configuration

Single phase bridge

D-34

MAJOR RATINGS AND CHARACTERISTICS

SYMBOL

CHARACTERISTICS

VALUES

26MB..A

VALUES

36MB..A

UNITS

IO

25

35

A

TC

70

55

°C

IFSM

50 Hz

400

475

A

60 Hz

420

500

I2t

50 Hz

790

1130

A2s

60 Hz

725

1030

VRRM

Range

1400 to 1600

V

TJ

-55 to +150

°C

VOLTAGE RATINGS

TYPE



NUMBER

VOLTAGE

CODE

VRRM, MAXIMUM REPETITIVE

PEAK REVERSE VOLTAGE

V

VRSM, MAXIMUM NON-REPETITIVE

PEAK REVERSE VOLTAGE

V

IRRM MAXIMUM

AT TJ MAXIMUM

mA

26MB..A



36MB..A

140

1400

1500

2

160

1600

1700
