*For Surface Mount Application

*Super Fast Switching For High Efficiency

*Glass Passivated Chip

*Low Reverse Leakage Current

*Low Forward Voltage Drop And High Current Capability

*Plastic Meterial Has UL Flammability Classification 94V-0

*Case : Molded Plastic

*Polarity :Indicated by cathode band

*Weight : 0.003 Ounce ,0.093 grams

REVERSE VOLTAGE

50 TO 600 VOLTS

FORWARD CURRENT

3.0 AMPERE

http://www.weitron.com.tw

ES3AB thru ES3JB

Surface Mount Super Fast

Features:

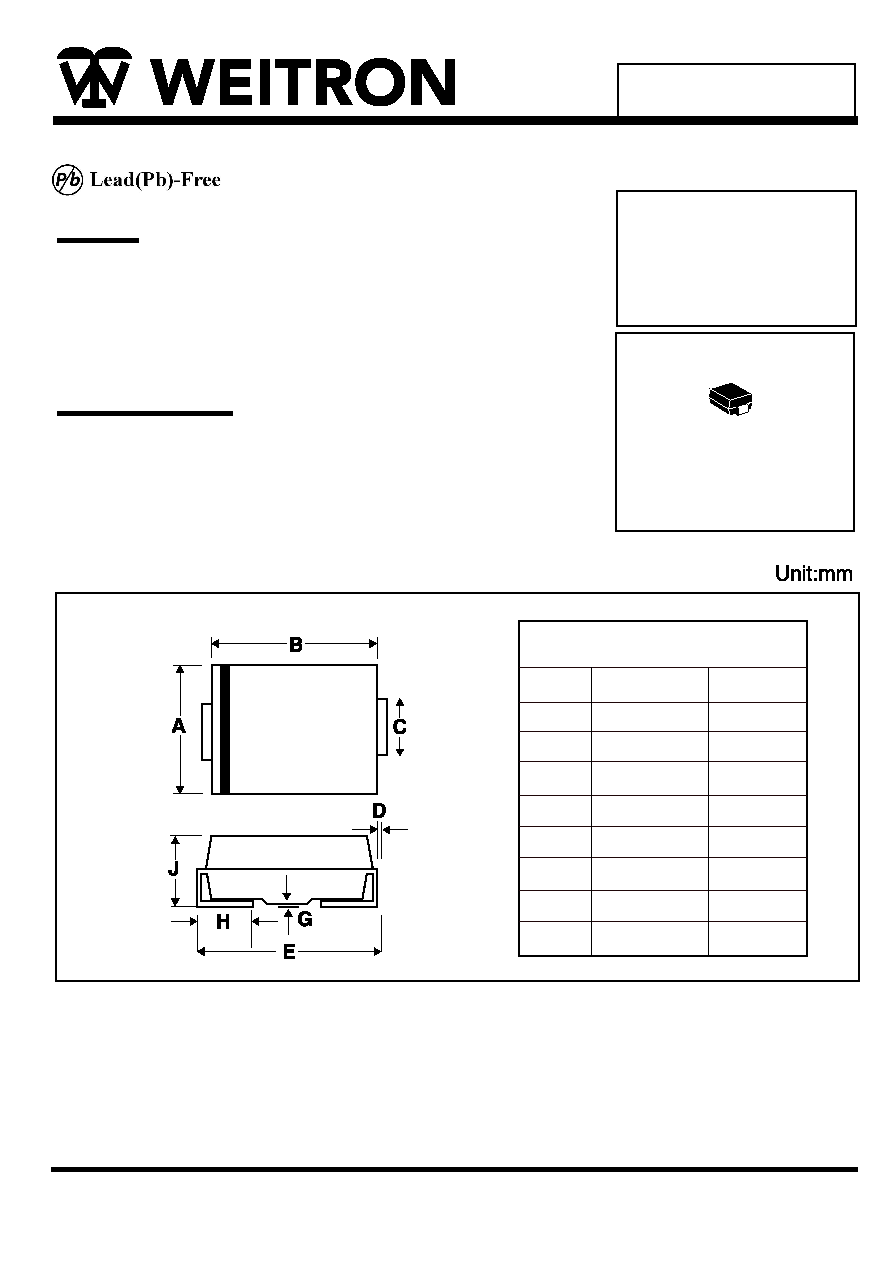

SMB Outline Dimensions

WEITRON

Mechanical Data

Rectifiers

SMB(DO-214AA)

SMB

3.30

3.94

4.06

4.80

1.96

2.21

0.15

0.31

5.00

5.59

0.10

0.20

0.76

1.52

2.00

2.62

Dim

Min

Max

A

B

C

D

E

G

H

J
