TSOP752..W, TSOP754..W

www.vishay.com

Vishay Semiconductors

Rev. 2.2, 29-Mar-2021

1

Document Number: 82496

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

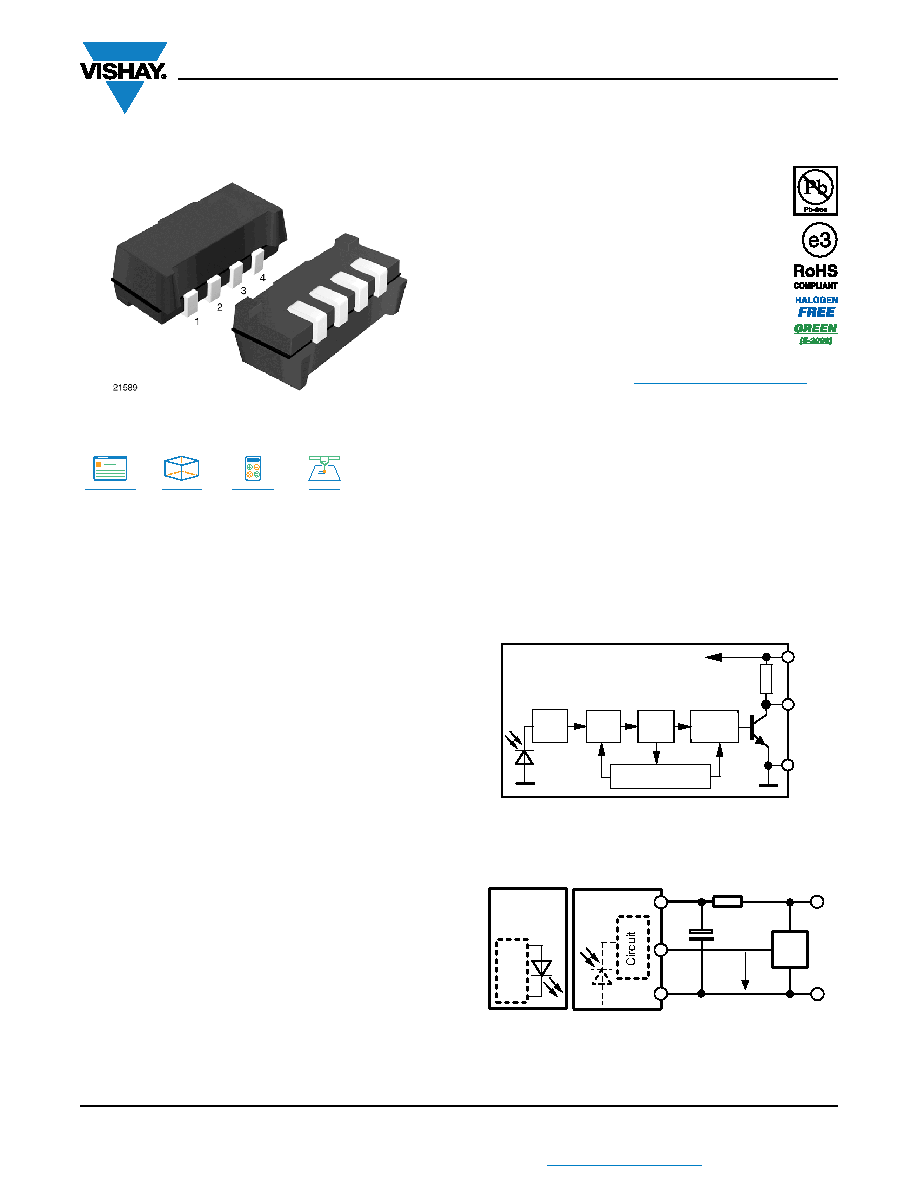

IR Receiver Modules for Remote Control Systems

LINKS TO ADDITIONAL RESOURCES

DESCRIPTION

The TSOP75...W series are miniaturized SMD IR receiver

modules for infrared remote control systems. Two PIN

diodes and a preamplifier are assembled on a leadframe, the

epoxy package contains an IR filter.

The demodulated output signal can be directly connected to

a microprocessor for decoding.

The TSOP754..W series devices are optimized to suppress

almost all spurious pulses from energy saving lamps like

CFLs. The AGC4 used in the TSOP754..W may suppress

some data signals. The TSOP752..W series are provided

primarily for compatibility with old AGC2 designs. New

designs should prefer the TSOP754..W series containing the

newer AGC4.

These components have not been qualified according to

automotive specifications.

FEATURES

• Very low supply current

• Photo detector and preamplifier in one package

• Internal filter for PCM frequency

• Supply voltage: 2.5 V to 5.5 V

• Improved immunity against ambient light

• Capable of side or top view

• Low profile 2.35 mm

• Insensitive to supply voltage ripple and noise

• Material

categorization:

for

definitions

of

compliance please see www.vishay.com/doc?99912

MECHANICAL DATA

Pinning:

1, 4 = GND, 2 = VS, 3 = OUT

ORDERING CODE

Taping:

TSOP75...WTT - top view taped, 2200 pcs/reel

TSOP75...WTR - side view taped, 2300 pcs/reel

BLOCK DIAGRAM

APPLICATION CIRCUIT

Product Page

333

DDD3 D

3D Models

Calculators

Marking

30 k

Ω

VS

OU T

Demo-

GND

pass

AGC

Input

PIN

Band

dulator

Control circuit

2

3

1, 4

20445-1

C1

IR receiver

GND

μC

R1

+ VS

GND

Transmitter

with

TSALxxxx

VS

VO

17170-11

OUT

R

1 and C1 recommended to reduce supply ripple for VS < 2.8 V
