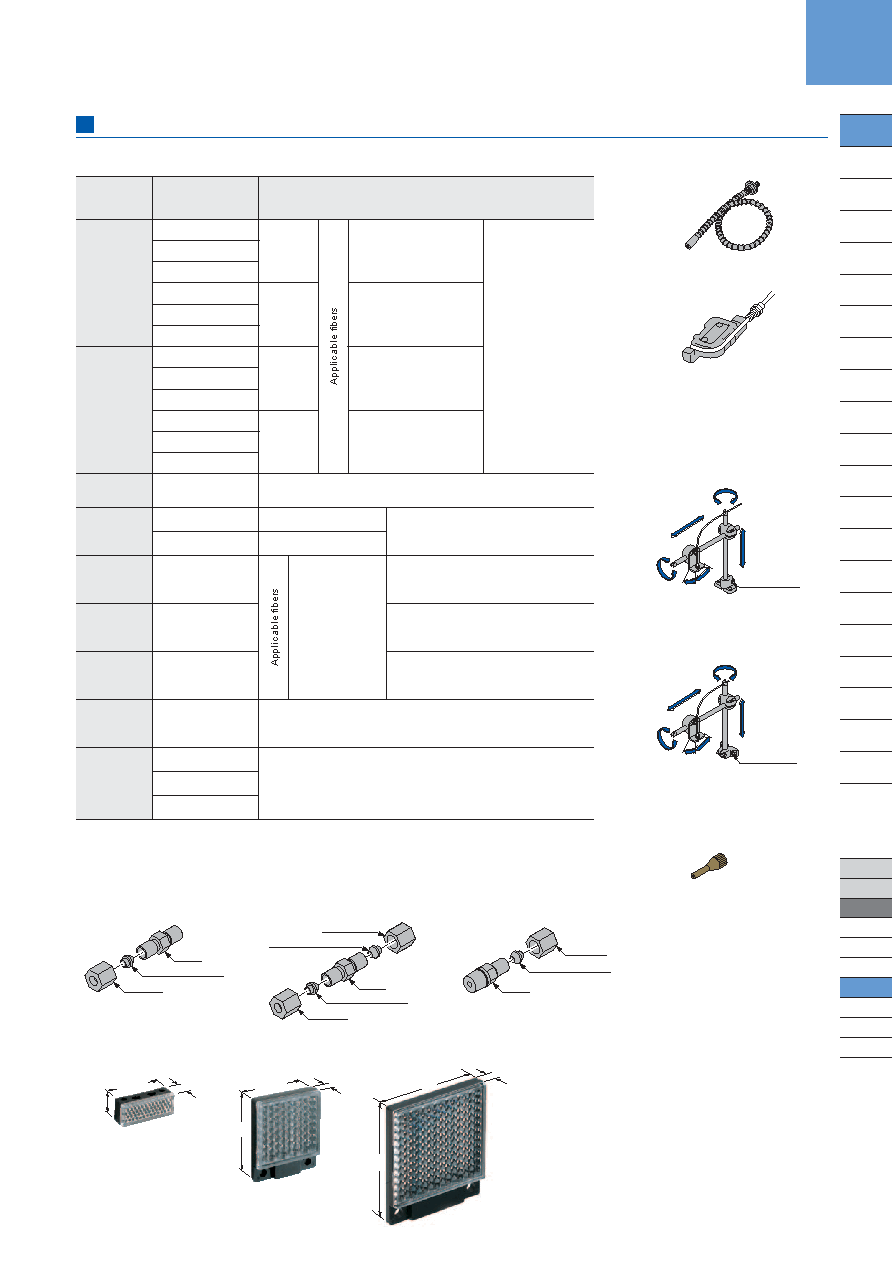

FIBER OPTIONS

Refer to p. 69~ for details of lens dimensions.

Others

Protective tube

Universal sensor mounting stand

Using the arm which enables adjustment in

the horizontal direction, sensing can also be

done from above an assembly line.

Fiber bender

• FB-1

• MS-AJ1-F

• MS-AJ2-F

360° rotation

360°

rotation

Angle adjustment: ±20°

20°

20°

Height

adjustment:

150 mm 5.906 in

approx.

Mounting hole

for M6 screw

Forward / back

adjustment:

130 mm

5.118 in approx.

360° rotation

360°

rotation

Angle adjustment: ±20°

20°

20°

Mounting hole

for M6 screw

Forward / back

adjustment:

130 mm

5.118 in approx.

Height

adjustment:

150 mm 5.906 in

approx.

• FTP-□

• FDP-□

Designation

Model No.

Description

Protective tube

for thru-beam

type fiber

FTP-500 (0.5 m 1.640 ft)

For M4

thread

FT-42

FT-42S

FT-42W

FT-43

FT-H13-FM2

The protective

tube, made of non-

corrosive stainless

steel, protects the

inner fiber cable from

any external forces.

FTP-1000 (1 m 3.281 ft)

FTP-1500 (1.5 m 4.921 ft)

FTP-N500 (0.5 m 1.640 ft)

For M3

thread

FT-31

FT-31S

FT-31W

FD-31

FD-31W

FTP-N1000 (1 m 3.281 ft)

FTP-N1500 (1.5 m 4.921 ft)

Protective tube

for reflective

type fiber

FDP-500 (0.5 m 1.640 ft)

For M6

thread

FD-61

FD-61G

FD-61S

FD-61W

FD-62

FD-H13-FM2

FDP-1000 (1 m 3.281 ft)

FDP-1500 (1.5 m 4.921 ft)

FDP-N500 (0.5 m 1.640 ft)

For M4

thread

FD-41

FD-41W

FD-41S

FD-41SW

FDP-N1000 (1 m 3.281 ft)

FDP-N1500 (1.5 m 4.921 ft)

Fiber bender

FB-1

The fiber bender bends the sleeve part of the fiber head at the proper

radius. (Note 1)

Universal sensor

mounting stand

(Note 2)

MS-AJ1-F

Horizontal mounting type Mounting stand assembly for fiber (For M3,

M4 or M6 threaded head fiber)

MS-AJ2-F

Vertical mounting type

Liquid inflow

prevention

joint

(Note 2)

MS-FX-01Y

FD-HF40Y

FD-F41Y

This joint suppresses false operations

due to liquid slip-in from the top of the

protective tube.

Protective tube

extension joint

(Note 2)

MS-FX-02Y

The protective tube can be extended.

Fiber

mounting joint

(Note 2)

MS-FX-03Y

The joint is used for mounting fibers on a

tank.

Single core

holder

FX-AT15A

The incident light intensity may vary when using a multi-core fiber or a

thin type sharp bending fiber. This holder suppresses the variation in

the incident light intensity. (Brown)

Reflector

RF-210

Used with

FR-Z50HW.

Refer to p.30 or p.41 for the sensing range of

FR-Z50HW to be used

in combination.

RF-220

RF-230

Notes: 1) Do not bend the sleeve part of any side-view type fiber or ultra-small diameter head type fiber.

2) The joint internal ferrule (

MS-FX-YF) is available as a spare part. A distorted ferrule may result in leakage.

Single core holder

• FX-AT15A

Liquid inflow prevention joint

• MS-FX-01Y

MS-FX-03Y

MS-FX-02Y

MS-FX-01Y

Union nut

Union nut

Union nut

Union nut

Body

Body

Body

Ferrule (

MS-FX-YF)

Ferrule (

MS-FX-YF)

Ferrule (

MS-FX-YF)

Ferrule (

MS-FX-YF)

Protective tube extension joint

• MS-FX-02Y

MS-FX-03Y

MS-FX-02Y

MS-FX-01Y

Union nut

Union nut

Union nut

Union nut

Body

Body

Body

Ferrule (

MS-FX-YF)

Ferrule (

MS-FX-YF)

Ferrule (

MS-FX-YF)

Ferrule (

MS-FX-YF)

Fiber mounting joint

• MS-FX-03Y

MS-FX-03Y

MS-FX-02Y

MS-FX-01Y

Union nut

Union nut

Union nut

Union nut

Body

Body

Body

Ferrule (

MS-FX-YF)

Ferrule (

MS-FX-YF)

Ferrule (

MS-FX-YF)

Ferrule (

MS-FX-YF)

Reflector

• RF-210

1.311 in

33.3 mm 0.433 in

11 mm

12.8mm

0.504 in

• RF-220

1.390 in

35.3 mm

8.3 mm

42.3 mm

1.665 in

0.327 in

1.980 in

50.3 mm

0.327 in

8.3 mm

59.3 mm

2.335 in

• RF-230
