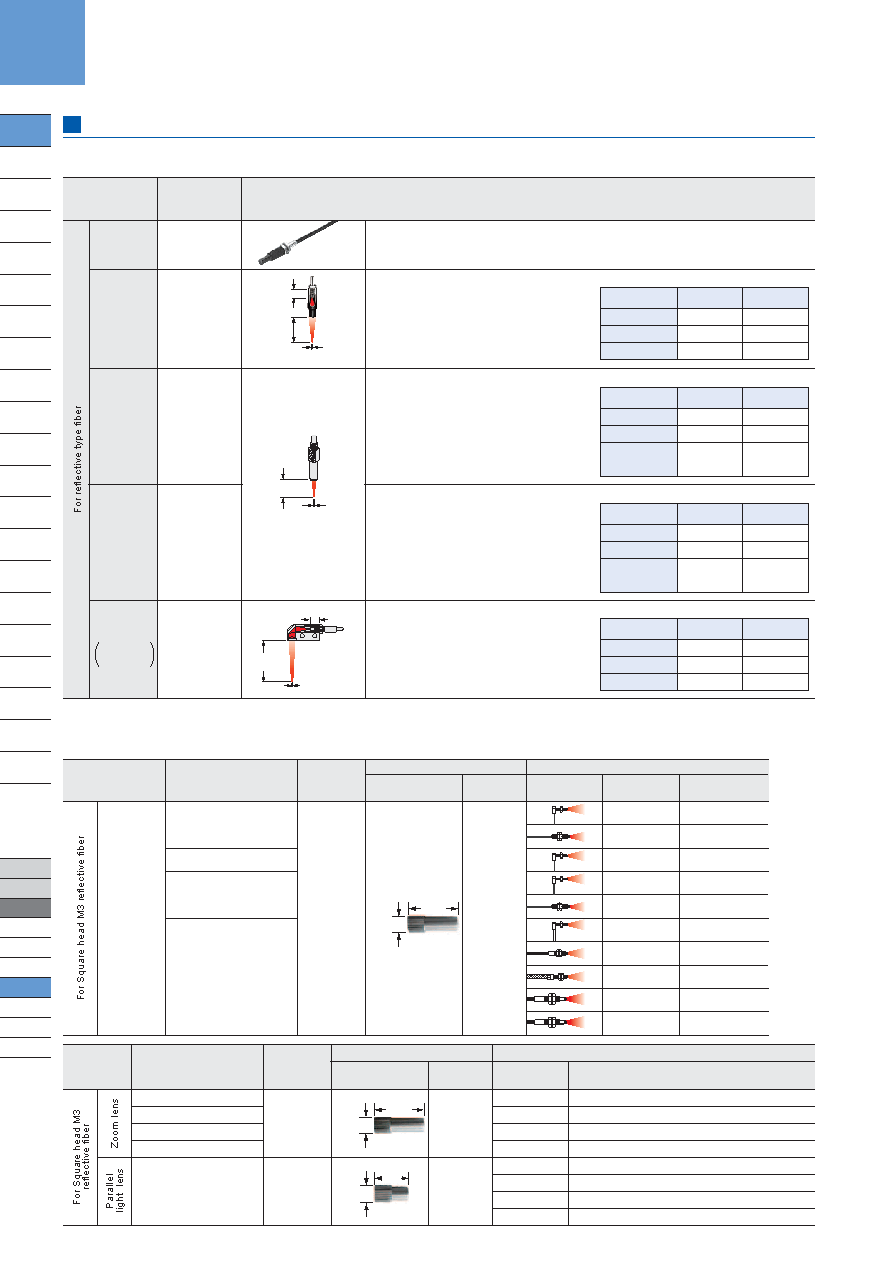

FIBER OPTIONS

Lens (for reflective type fiber)

Notes: 1) The sensing ranges are the values when used in combination with a red LED type amplifier. Please contact our office for details on sensing ranges for other types of amplifier.

2) Refer to p.16 or p.26 for the ambient temperatures of fibers to be used in combination.

Note: Spot diameter, distance to focal point and sensing range are specified for a red LED type amplifier.

Refer to p. 69~ for details of lens dimensions.

Designation

Model No.

Description

Pinpoint

spot lens

FX-MR1

Pinpoint spot of ø0.5 mm ø0.020 in. Enables detection of minute objects or small marks.

• Distance to focal point: 6 ± 1 mm 0.236 ± 0.039 in

• Applicable fibers:

FD-42G, FD-42GW

• Ambient temperature: -40 to +70 °C -40 to +158 °F (Note)

Zoom lens

FX-MR2

Screw-in

depth

Distance to

focal point

Spot

diameter

The spot diameter is adjustable from ø0.7 to ø2

mm ø0.028 to ø0.079 in according to how much

the fiber is screwed in.

• Applicable fibers:

FD-42G, FD-42GW

• Ambient temperature:-40 to +70 °C

-40 to +158 °F (Note 2)

• Accessory:

MS-EX3 (mounting bracket)

Sensing range for red LED type (Note 1)

Screw-in depth Distance to focal point Spot diameter

7 mm

18.5 mm approx.

ø0.7 mm

12 mm

27 mm approx.

ø1.2 mm

14 mm

43 mm approx.

ø2.0 mm

Finest spot

lens

FX-MR3

Spot diameter

Distance to

focal point

Extremely fine spot of ø0.15 mm ø0.006 in

approx. achieved.

• Applicable fibers:

FD-EG31, FD-EG30, FD-42G, FD-42GW,

FD-32G, FD-32GX

• Ambient temperature: -40 to +70 °C

-40 to +158 °F (Note 2)

Sensing range for red LED type (Note 1)

Fiber model No. Distance to focal point Spot diameter

FD-EG31

7.5 ±0.5 mm ø0.15 mm approx.

FD-EG30

7.5 ±0.5 mm ø0.3 mm approx.

FD-42G/42GW

FD-32G/32GX 7.5 ±0.5 mm ø0.5 mm approx.

Finest spot

lens

FX-MR6

Extremely fine spot of ø0.1 mm ø0.004 in

approx. achieved.

• Applicable fibers:

FD-EG31, FD-EG30, FD-42G, FD-42GW,

FD-32G, FD-32GX

• Ambient temperature: -20 to +60 °C

-4 to +140 °F (Note 2)

Sensing range for red LED type (Note 1)

Fiber model No. Distance to focal point Spot diameter

FD-EG31

7 ±0.5 mm ø0.1 mm approx.

FD-EG30

7 ±0.5 mm ø0.2 mm approx.

FD-42G/42GW

FD-32G/32GX

7 ±0.5 mm ø0.4 mm approx.

Zoom lens

side-view

type

FX-MR5

Screw-in

depth

Spot diameter

Distance to

focal point

FX-MR2 is converted into a side-view type and

can be mounted in a very small space.

• Applicable fibers:

FD-42G, FD-42GW

• Ambient temperature: -40 to +70 °C

-40 to +158 °F (Note 2)

Sensing range for red LED type (Note 1)

Screw-in depth Distance to focal point Spot diameter

8 mm

13 mm approx.

ø0.5 mm

10 mm

15 mm approx.

ø0.8 mm

14 mm

30 mm approx.

ø3.0 mm

Lens (For square head M3 reflective fiber)

Type

Spot diameter

(mm in) (Note)

Distance to

focal point

(mm in) (Note)

Lens

Fiber

Shape

(mm in)

Model No.

Shape

Emitting fiber

core (mm in)

Model No.

Finest spot

lens

ø0.1 ø0.004

approx.

7 ± 0.5

0.276 ± 0.020

FX-MR7

ø0.125 ø0.005

FD-R33EG

ø0.125 ø0.005

FD-EG31

ø0.15 ø0.006

approx.

ø0.175 ø0.007

FD-R34EG

ø0.2 ø0.008

approx.

ø0.25 ø0.010

FD-R32EG

ø0.25 ø0.010

FD-EG30

ø0.4 ø0.016

approx.

ø0.5 ø0.020

FD-R31G

ø0.5 ø0.020

FD-32G

ø0.5 ø0.020

FD-32GX

ø0.5 ø0.020

FD-42G

ø0.5 ø0.020

FD-42GW

Type

Spot diameter

(mm in) (Note)

Sensing

range

(mm in) (Note)

Lens

Applicable fibers

Shape

(mm in)

Model No. Emitting fiber

core (mm in)

Model No.

ø0.4 to ø2.0 ø0.016 to ø0.079 approx.

10 to 30

0.394 to1.181

FX-MR8

ø0.125 ø0.005 FD-R33EG, FD-EG31

ø0.4 to ø2.2 ø0.016 to ø0.087 approx.

ø0.175 ø0.007

FD-R34EG

ø0.5 to ø2.5 ø0.020 to ø0.098 approx.

ø0.25 ø0.010

FD-R32EG, FD-EG30

ø0.8 to ø3.5 ø0.031 to ø0.138 approx.

ø0.5 ø0.020

FD-R31G, FD-32G, FD-32GX, FD-42G, FD-42GW

ø4.0 ø0.157 approx.

0 to 30

0 to 1.181

FX-MR9

ø0.125 ø0.005

FD-R33EG, FD-EG31

ø0.175 ø0.007

FD-R34EG

ø0.25 ø0.010

FD-R32EG, FD-EG30

ø0.5 ø0.020

FD-R31G, FD-32G, FD-32GX, FD-42G, FD-42GW

15.3

0.602

ø5 ø0.197

15

0.591

ø5 ø0.197

ø5 ø0.197

10

0.394
