Technical Data 10984

Effective October 2020

ACE1V2012

Automotive grade common-mode chip inductor

www.eaton.com/electronics

Product specifications

Part number

Common-mode

impedance Z (Ω) at

100 MHz

DCR (Ω)

@ +25 °C

maximum

Idc (mA)

maximum

Rated voltage

(Vdc) typical

Insulation

resistance

(MΩ)

minimum

Withstanding

voltage (Vdc)

typical

ACE1V2012-900-R

90 ±25%

0.3

400

50

10

125

ACE1V2012-121-R

120 ±25%

0.3

370

50

10

125

ACE1V2012-201-R

200 ±25%

0.35

330

50

10

125

ACE1V2012-361-R

360 ±25%

0.4

280

50

10

125

ACE1V2012-681-R

680 ±25%

0.8

220

50

10

125

ACE1V2012-102-R

1000 ±25%

1.5

190

50

10

125

ACE1V2012-222-R

2200 ±25%

2.0

150

50

10

125

1. Part Number Definition: ACE1V2012-xxn-R

ACE1V2012 = Product code and size

xx= impedance value in ohms,

n= multiplication factor: 10^n (i.e. 900 = 90 * 10^0 = 90 ohms)

-R suffix = RoHS compliant

All soldering surfaces to be coplanar within 0.1 millimeters

Tolerances are ±0.1 millimeters unless stated otherwise

Pad layout dimensions are reference only

Traces or vias underneath the inductor is not recommended

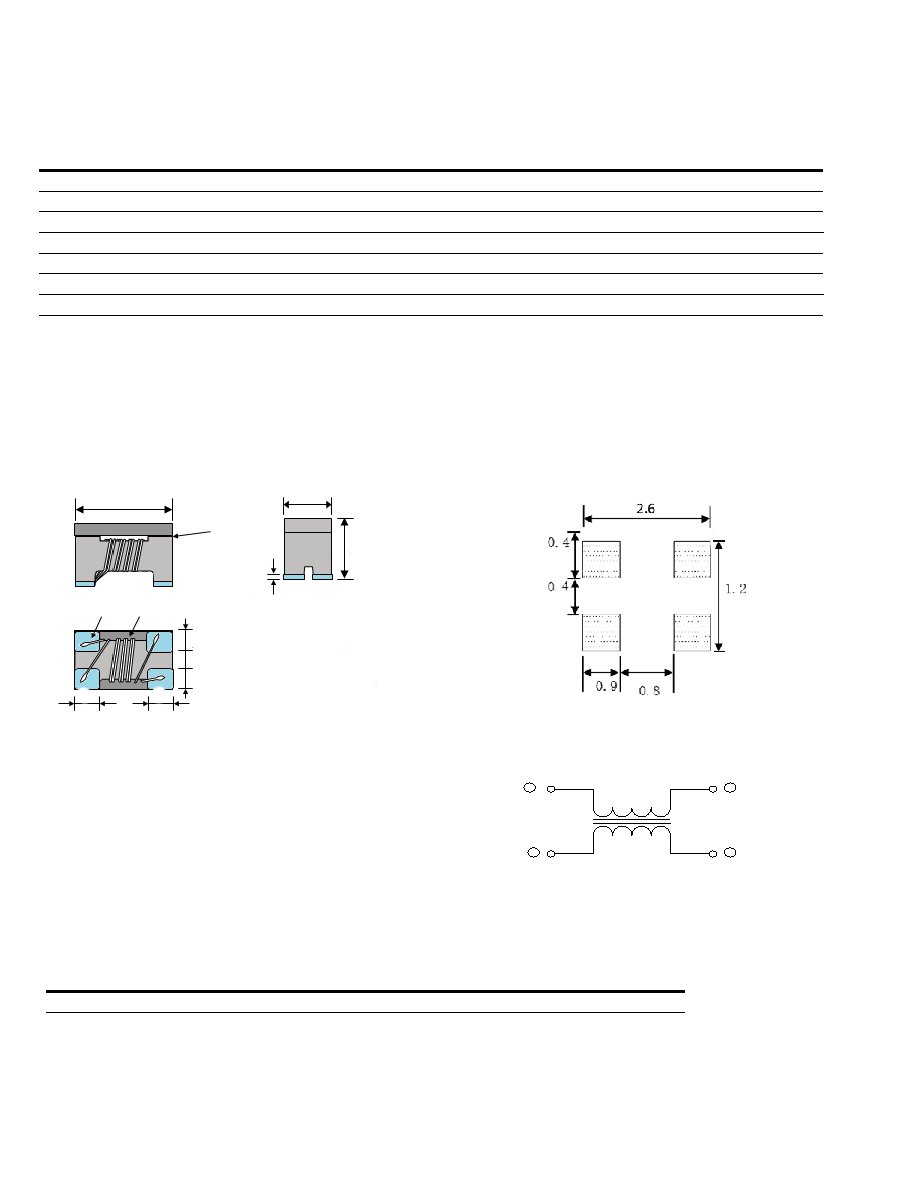

Mechanical parameters, schematic, pad layout (mm)

Part Number

A

B

C

D

E

F

ACE1V2012-xxn-R

2.0 ±0.2

1.2 ±0.2

1.2 ±0.2

0.2 ±0.1

0.40 typ

0.45 typ

Recommended pad layout

Equivalent circuit

A

B

C

D

E

E

FF

Terminations

Wires

Epoxy

1

2

3

4

No polarity
