Network Appliances

Features

ƒ Compliant with FCC and CE RED for deployable WWAN and WLAN function

in North America and Europe

ƒ Industry-standard, off-the-shelf x86 server platform for remote office, and

small to medium enterprise installations

ƒ Dual 1GbE RJ45 or SFP auto-negotiation link for WAN connectivity

ƒ Enhanced design to optimize system performance by integrated offload

technology

ƒ Optional 3G, 4G LTE and WiFi connectivity for flexible deployment

ƒ Tested and Certified by key software vendors for universal vE-CPE and

SD-WAN roll-out

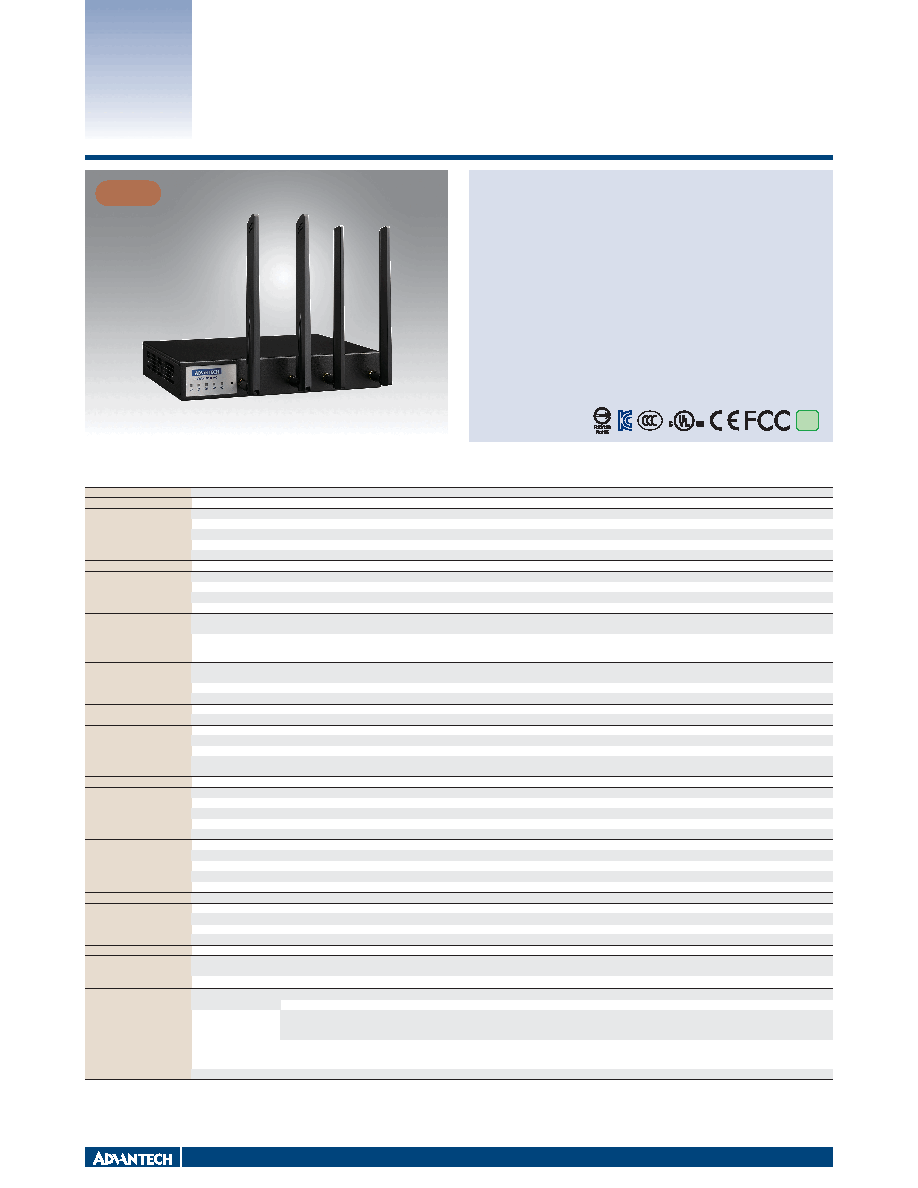

FWA-1010VC

Tabletop Network Appliance with

Intel® Atom™ Processor C2000 for

universal vCPE and SD-WAN

Specifications

FWA-1010VC-4CA2S

FWA-1010VC-8CA2S

FWA-1010VCR-8CA2S

Form Factor

Tabletop

Processor System Note

Processor

Intel® Atom™ Processor C2558

Intel® Atom™ Processor C2758

Core Number

4

8

Frequency

2.4GHz

L2 Cache

2MB

4MB

BIOS

AMI EFI 64Mbit

Virtualization

VT-x

Memory

Technology

DDR3/DDR3L 1600MHz

Max. Capacity

32GB (16GB per socket)

Socket

2 x 240-pin UDIMM

ECC Support

ECC or Non-ECC

Networking

Controller

3 x Marvell 88E1112

1 x Marvell 88E6141

1GbE

2 x 1000/100/10BASE-T RJ45 or SFP auto-negotiation link by Marvell 88E1112

1 x 1000/100/10BASE-T RJ45 by Marvell 88E1112

4 x 1000/100/10BASE-T RJ45 by Marvell 88E6141 with 1GbE uplink to CPU

Expansion

Mini PCIe

1 x Full-size Mini PCIe with SIM holder for 3G/4G LTE (WWAN) module with 2 x antenna holes

Sierra/MC7455 with Antenna;

Sierra/MC7430 is optional by project support

SIM socket

1 x Mini SIM type (25 x 15 mm)

M.2

1 x M.2 2232 for WiFi (WLAN) module with 2 x antenna holes

Advantech/EWM-W162M with antenna

Storage

2.5" SSD

None

1 x 2.5" SATA3.0 Gen3 SSD bracket (Max 9.5mm height only)

M.2

1 x SATA3.0 Gen3 M.2 2280 (option 2x M.2 2242)

I/O

Console port

1

USB2.0

1 x USB2.0 Type A host port

LED Indicator

Power, HDD, 3G/4G LTE, WiFi, SW defined status

Others

1 x Power Switch

1 x Software definable button with LED indicator

TPM1.2

Optional support by TPM module: 98923260H0E

Power Supply

Power Type

DC

Watts

60W

Input

100 V ~ 240 V

Connector

DC Jack

Power Adaptor

12V 5A, 60W external adaptor

Environment

Operating Temperature (air flow 0.7 m/sec)

0 ~ 40 °C (32 ~ 104 °F)

Non-operating Temperature

-20 ~ 80 °C (-4 ~ 167 °F)

Humidity

95% @ 40 °C (non-condensing)

Vibration Resistance

with SSD: 0.3 Grms, IEC 60068-2-64, 5-500Hz, 1hr/axis

Shock Protection

with SSD: 10G, IEC-60068-2-27, half sine, 11ms duration

Cooling

1 x system FAN with smart FAN for maximum 37.5dB(A)

Mechanical

Construction

Iron

Mounting

Support desktop/Rack/Wall-mounting options

Dimensions (W x H x D)

250 x 44 x 190.4 mm (9.8" x 1.7" x 7.5")

Weight

2.3 Kg (4.8lb)

OS support

Linux (CentOS, Red Hat, Ubuntu)

Advantech S/W Packages

QuickStart Linux Image

(Ubuntu based reference BSP)

afru, lmsensors, flashrom, WiFi drivers, QMI Wireless drivers, Intel® DPDK, Intel® QAT, DUI (Offline Diagnostics)

Individual Package

DUI (Offline Diagnostics)

Certification

without RF

EMC

BSMI: CNS13438 ; CE: EN55032/24 ClassB ; KCC: KN55032/35 ; RCM: AS/NZS CISPR32

Safety

UL, CB, BIS, BSMI, CCC

with RF

EMC

CE: ETSI EN 301 908-1 V11.1.1: 2016 ; ETSI EN 300 328 V2.1.1: 2016 ; ETSI EN 301 893 V2.1.1: 2017 ; EN 62311: 2008;

EN301489-1-17-52 ; EN301908-2 ; EN301908-13

FCC: Part22H & 24E & 27B, C & L & 90S ; §15.247, Cat: DTS ; §15.407

Safety

UL: 60950-1 (2nd Edition), CAN/CSA C22.2 No. 60950-1-07 (2nd Edition)

LVD: EN 60950-1

CB: IEC 60950-1:2005 (2nd Edition) + Am 1:2009 + Am 2:2013, EN 60950-1:2006 /A11:2009/A1:2010/A12:2011/ A2:2013

RoHS

RoHS, REACH, WEEE

Note: Please contact your Advantech representative for other Atom C2000 processor support

NEW

RoHS

COMPLIANT

2002/95/EC

All product specifications are subject to change without notice.

Last updated: 9-Sep-2020
