Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

High Voltage with Flexible Termination System (HV FT-CAP), C0G Dielectric, 500 – 10,000 VDC (Commercial Grade)

Soldering Process

Recommended Soldering Technique:

• Solder wave or solder reflow for EIA case sizes 0603, 0805 and 1206

• All other EIA case sizes are limited to solder reflow only

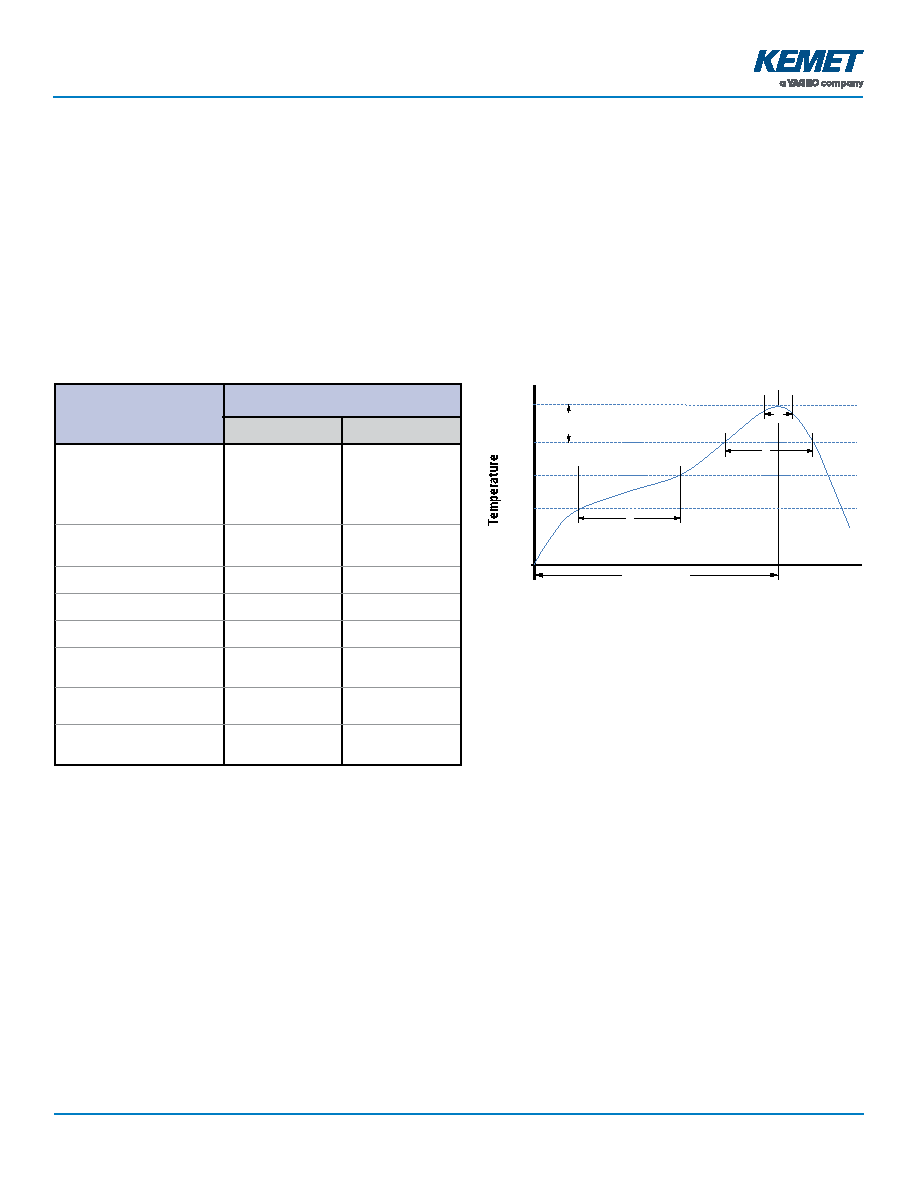

Recommended Reflow Soldering Profile:

KEMET’s families of surface mount multilayer ceramic capacitors (SMD MLCCs) are compatible with wave (single or dual),

convection, IR or vapor phase reflow techniques. Preheating of these components is recommended to avoid extreme thermal

stress. KEMET’s recommended profile conditions for convection and IR reflow reflect the profile conditions of the IPC/

J-STD-020 standard for moisture sensitivity testing. These devices can safely withstand a maximum of three reflow passes

at these conditions.

Profile Feature

Termination Finish

SnPb

100% Matte Sn

Preheat/Soak

Temperature Minimum (T

Smin)

100°C

150°C

Temperature Maximum (T

Smax)

150°C

200°C

Time (t

S) from TSmin to TSmax

60 – 120 seconds

60 – 120 seconds

Ramp-Up Rate (T

L to TP)

3°C/second

maximum

3°C/second

maximum

Liquidous Temperature (T

L)

183°C

217°C

Time Above Liquidous (t

L)

60 – 150 seconds

60 – 150 seconds

Peak Temperature (T

P)

235°C

260°C

Time Within 5°C of Maximum

Peak Temperature (t

P)

20 seconds

maximum

30 seconds

maximum

Ramp-Down Rate (T

P to TL)

6°C/second

maximum

6°C/second

maximum

Time 25°C to Peak

Temperature

6 minutes

maximum

8 minutes

maximum

Note 1: All temperatures refer to the center of the package, measured on the

capacitor body surface that is facing up during assembly reflow.

Time

T

smin

25

T

smax

T

L

T

P

Maximum Ramp-up Rate = 3°C/second

Maximum Ramp-down Rate = 6°C/second

t

P

t

L

t

s

25°C to Peak
