This document was generated on 02/28/2023

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

1300080098

Status:

Active

Overview:

Brad Mini-Change Connectors

Description:

Mini-Change C-Size Single-Ended Cordset, 10 Poles, Female (90°) to Pigtail, 16 AWG,

PVC Cable, 1.83m (6.0') Length

Documents:

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR6837

UL

E152210

General

Product Family

Industrial Cordsets

Series

130008

Connector End A

Mini-Change

Connector End B

Pigtail

IP Rating

IP67

Material - Contact

Brass

Overview

Brad Mini-Change Connectors

Product Name

Mini-Change

Protocol

DeviceNet

Region

America

Taxonomy

Circular Industrial Cordsets

Type

Single Ended

UPC

78678844091

Physical

Cable Diameter

16.76mm (.660")

Cable Length

1.83m (6.0')

Color - Cable Jacket

Yellow

Coupling Style

Threaded

Gender

Female-Pigtail

Keyway

Single

LED Indicator

No

Material - Cable Jacket

PVC

Material - Connector Body

PVC

Material - Coupling Nut

Black Epoxy Coated Zinc

Material - Plating Mating

Gold

Orientation

90° to Pigtail

Poles

10

Temperature Range - Operating

-20° to +105°C

Wire Size AWG

16

Wire/Cable Type

STOOW

Electrical

Current - Maximum per Contact

7.0A

Voltage - Maximum

600V

Material Info

Engineering Number

301001A01F060

Reference - Drawing Numbers

Sales Drawing

SD-130008-016-001

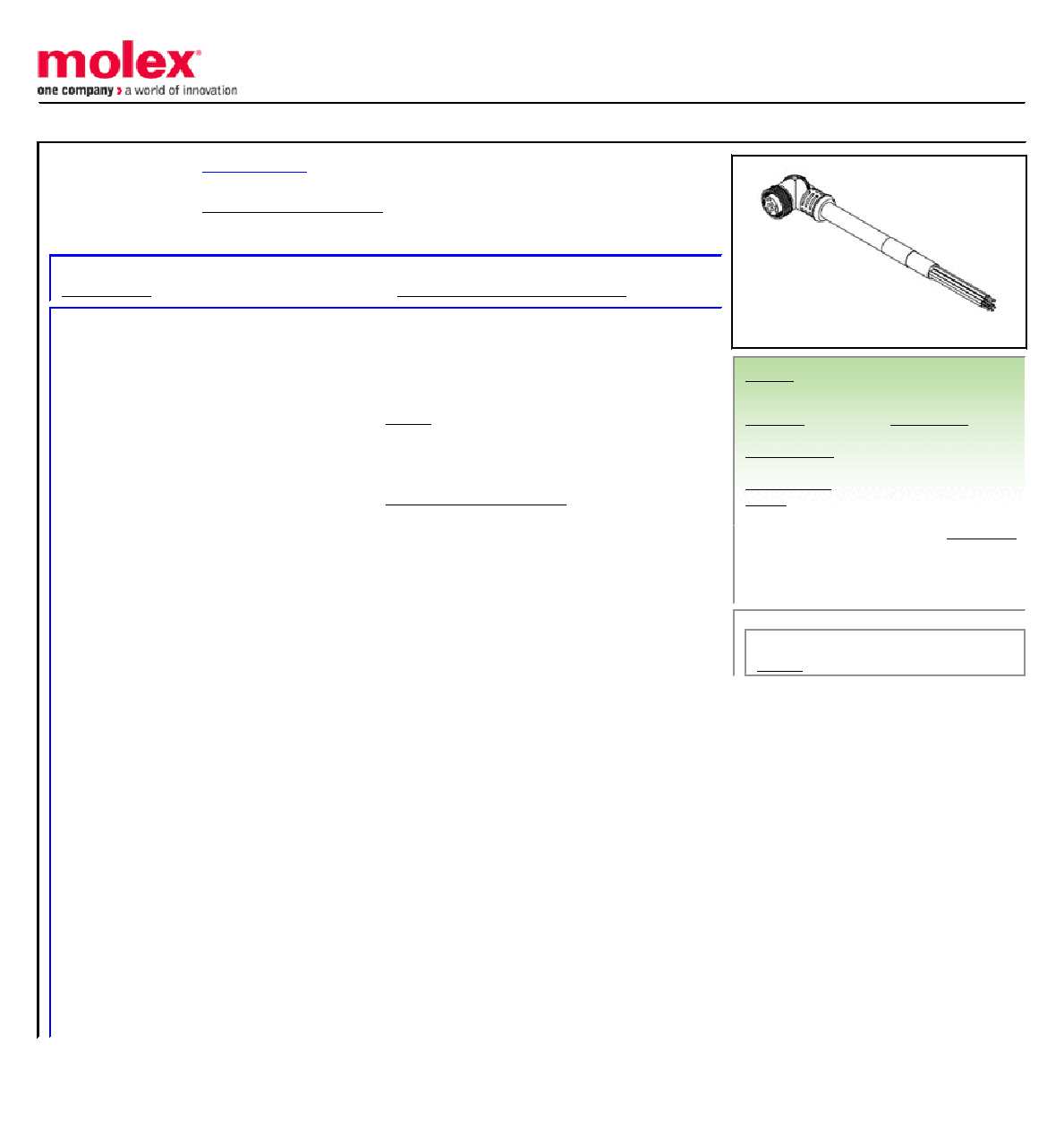

Series image - Reference only

EU ELV

Not Reviewed

EU RoHS

China RoHS

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

For more information, please visit Contact US

China ROHS

Not Reviewed

ELV

Not Reviewed

RoHS Phthalates

Not Reviewed

Search Parts in this Series

130008 Series
