Note: All specifications are subject to change without notice.

www.aaeon.com

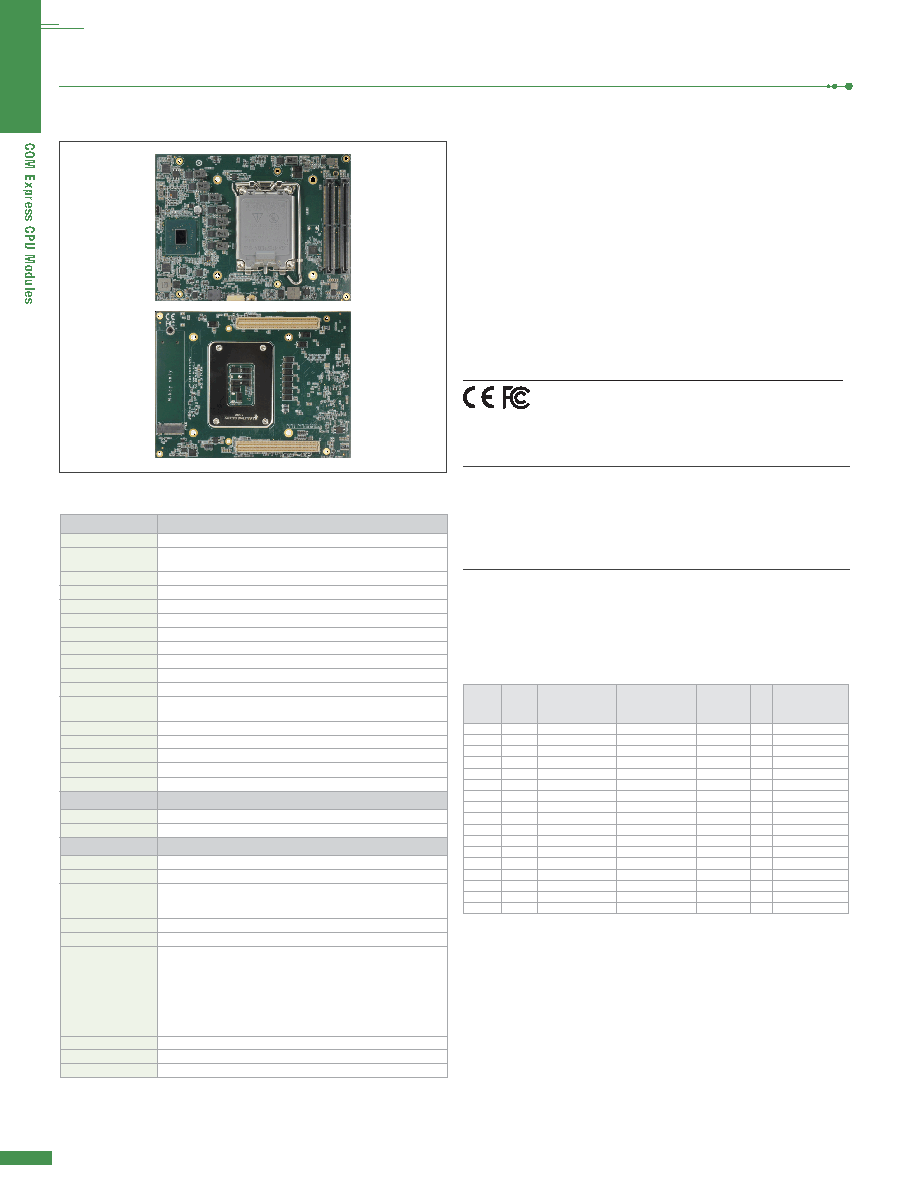

COM HPC Client Size C with 12th/13th Generation Intel® Core™ Platform

HPC-ADSC / HPC-RPSC

Features

Specifications

■ 12th/13th Gen Intel® Core™ Series LGA1700 Processors (Formerly

Alder Lake-S/Raptor Lake-S)

■ Intel® R680E Series Chipset

■ DDR5 w/ECC 4800MHz SODIMM x 2, up to 64GB

■ 2.5GbE x 2

■ M.2 2280 M-Key x 1

■ SATA III x 2

■ PCIe Gen 5 [x16] x 1, PCIe Gen 4 [x4] x 3, PCIe Gen 3 [x1] x 8

■ USB 3.2 x 6 (up to 20Gbps x 2, 10Gbps x 4)

■ GPIO x 12, SMbus, I2C x 1

■ COM HPC Client Type, Size C (160mm x 120mm)

Packing List

• HPC-RPSC-A10-0001

COM HPC Client Size C.FCLGA1700 CPU skt.R680E.2xDDR5.3xDDI.eDP.2xi226.TPM2.0.for RPS.A1.0

Optional Accessories

• HPC-RPSC-FAN01

COM HPC Client Size C.LGA1700 CPU skt.R680E.2xDDR5.3xDDI.eDP.2xi226.TPM2.0.A1.0

• ECB-980A-A10-0001

COM HPC Client Carrier.Size A/B/C.HDMI.DP.2GbE.3USB(TypeC).2SATA.PCIe.ATX.A1.0

System

Form Factor

COM-HPC R1.0 Client Size C

CPU

12th/13th Gen Intel® Core™ Series LGA1700 Processors (Formerly Alder

Lake-S/Raptor Lake-S)

CPU Frequency

Up to 2.30 GHz, 16 Core, i9-12900E

Chipset

Intel® R680E

Memory Type

DDR5 4800MHz SODIMM x 2

Max. Memory Capacity

Up to 64GB (ECC)

BIOS

AMI BIOS (UEFI)

Wake on LAN

Yes

Watchdog Timer

255 Levels

Power Requirement

+12V and +5VSB for ATX, +12V for AT

Power Supply Type

AT/ATX

Power Consumption

(Typical)

7.13A@12V, i9-12900E

Dimension (L x W)

6.30" x 4.72" (160mm x 120mm)

Operating Temperature

32°F ~ 140°F (0°C ~ 60°C)

Storage Temperature

-40°F ~ 185°F (-40°C ~ 80°C)

Operating Humidity

0% ~ 90% relative humidity, non-condensing

Certification

CE / FCC Class A

Display

Graphic Controller

Intel®UHD Graphics 770

Video Output

eDP x 1, DDI x 3

I/O

Ethernet

2.5GbE: Intel® I226LM x 2

Audio

—

USB Port

USB 3.2 x 4 (Type-C, 20Gbps x 2, 10Gbps x 2)

USB 3.2 x 2 (Type-A, 10Gbps)

USB 2.0 x 8

Serial Port

4-Wire UART x 2

HDD Interface

SATA III x 2

Expansion Slot

M.2 2280 M-Key

PEG [x16] x 1, split to PEG [x8] x 2 by BOM

PCIe [x4] x 3

PCIe [x1] x 8

eSPI x 1

SPI x 1

I2C x 1

SMBus x 1

GPIO

12-bit

Onboard Storage

—

TPM

TPM 2.0

CPU

Core /

Thread

Performance-core/

Efficient-core Base

Frequency

Performance-core/

Efficient-core Max

Turbo Frequency

Operating

Temperature

Range

TDP

Graphic

i9-12900E 16c/24t

2.30GHz/1.70GHz

5.00GHz/3.80GHz

0~60°C

65W Intel® UHD Graphics 770

i7-12700E 12c/20t

2.10GHz/1.60GHz

4.80GHz/3.60GHz

0~60°C

65W Intel® UHD Graphics 770

i7-12700

12c/20t

2.10GHz/1.60GHz

4.80GHz/3.60GHz

0~60°C

65W Intel® UHD Graphics 770

i5-12400

6c/12t

2.50GHz/-

4.40GHz/-

0~60°C

65W Intel® UHD Graphics 730

i9-12900TE 16c/24t

1.10GHz/1.00GHz

4.80GHz/3.60GHz

0~60°C

35W Intel® UHD Graphics 730

i5-12400T 6c/12t

1.80GHz/-

4.20GHz/-

0~60°C

35W Intel® UHD Graphics 730

i3-12100TE 4c/8t

2.10GHz/-

4.00GHz/-

0~60°C

35W Intel® UHD Graphics 730

G7400E

2c/4t

3.60GHz/-

—

0~60°C

46W Intel® UHD Graphics 710

G6900TE

2c/2t

2.40GHz/-

—

0~60°C

35W Intel® UHD Graphics 710

i9-13900E 24c/32t

1.80GHz/1.30GHz

5.20GHz/4.00GHz

0~60°C

65W Intel® UHD Graphics 770

i9-13900

24c/32t

2.00GHz/1.50GHz

5.20GHz/4.20GHz

0~60°C

65W Intel® UHD Graphics 770

i7-13700E 16c/24t

1.90GHz/1.30GHz

5.10GHz/3.90GHz

0~60°C

65W Intel® UHD Graphics 770

i5-13500E 14c/20t

2.40GHz/1.50GHz

4.60GHz/3.30GHz

0~60°C

65W Intel® UHD Graphics 770

i9-13900TE 24c/32t

1.00GHz/800MHz

5.00GHz/3.90GHz

0~60°C

35W Intel® UHD Graphics 770

i7-13700T 16c/24t

1.40GHz/1.00GHz

4.80GHz/3.60GHz

0~60°C

35W Intel® UHD Graphics 770

i3-13100TE 4c/8t

2.40GHz/-

4.10GHz/-

0~60°C

35W Intel® UHD Graphics 730

i3-13100T 4c/8t

2.50GHz/-

4.20GHz/-

0~60°C

35W Intel® UHD Graphics 730

CPU Support Chart

2023/04/19
