2–7

Phase-

Frequency

Detector

Programmable

Divider

MUX

POL

PROG.

LOOP

FILTER

PFD_FREEZE

LOCK

to ADC

MUX

ADCCLK1

(see NOTE)

ADCCLK2

DTOCLK3

DTO

EXT_ADCCLK

Phase

Selector

INV2

HS_POL

TERM_CNT

PHASESEL

SEL_ADCCLK

DIV3

INV3

DIV2

PLLCLK

GAIN_N

GAIN_P

NOM_INC

SELCLK

DTO_DIS

Noise

Gate

HS_MS

HS_WIDTH

3 P

DIGITAL PLL

DISABLE_

DIV

Lock

Detection

Hysteresis

LD_THRESH

VCOCLK

(From Analog PLL)

NOTE: ADCCLK1 is used by the output formatter to generate the DATACLK1 output.

DHS_MODE

Compensated in Output

Formatter for Pipeline

Data Delay. Then output

on Terminal DHS With

Polarity Determined by

<DHS_POL>.

PFD

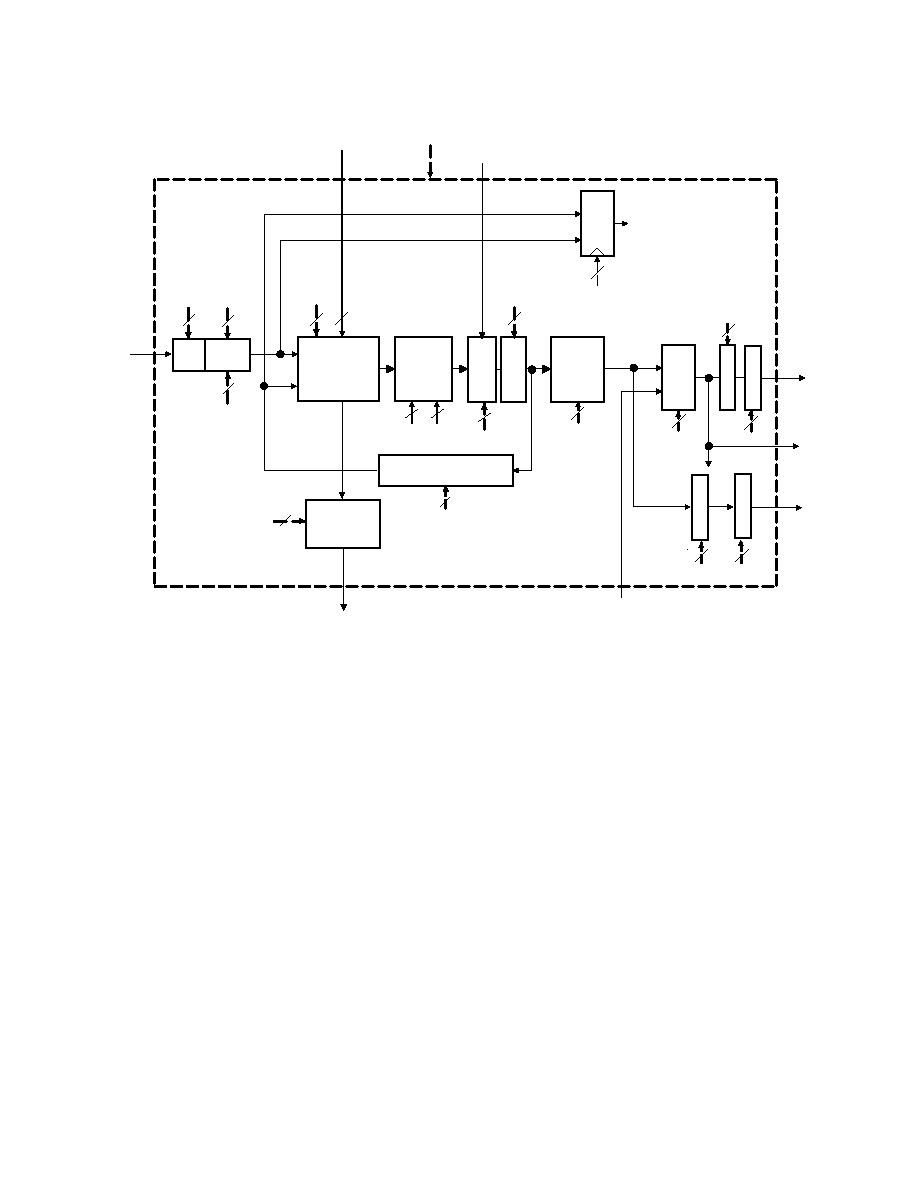

Figure 2–6. Digital PLL

The device provides three clock outputs. One of these output signals, DATACLK1, is derived from the ADC clock

output. It is actually equal to the sampling clock but compensated in phase so that its rising edge always corresponds

to the center valid region of the output data. Output data timing (setup/hold) is specified with respect to this rising edge.

Therefore, DATACLK1 is typically used for clocking the THS8083’s output data. The frequency of DATACLK1 will be

either equal or 1/2 of the sampling clock, depending on the operation mode of the output formatter. When the

THS8083 is clocked with an external sampling clock, this external clock is used as the source to generate DATACLK1

in the output formatter.

The second clock output, ADCCLK2, is equal to the ADC sampling clock but can optionally be divided by 2 and

inverted.

Finally, the third clock output, DTOCLK3, is always derived from the PLL output clock, irrespective of the use of an

external sampling clock on EXT_ADCCLK. So, when operating with an external sampling clock, the DTOCLK3 output

can be used to generate a second, possibly asynchronous, clock signal in either open loop operation or in closed loop

locked to a reference HS input. Also, DTOCLK3 can be optionally divided by 2 and inverted.

The divide and invert functions are implemented to enable a master/slave operation of two parts in case higher

sampling speeds than 80 MSPS are required. In this case the master will use its PLL to generate a line-locked clock,

of which the inverse will be used as an external sampling clock by the second slave device.
