Amphenol Canada Corp.

Commercial Products

CODE ID NO.

DESCRIPTION, ECN, EAR NO.

APP'D

DATE

REV

REVISIONS

THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR

ANY PURPOSE OR USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.

P-NDH-R6AX

NDH SERIES, RJ BULKHEAD, HOOD KIT &

PLUG KIT, IP67, CAT 5e, PLUG TAB DOWN,

RoHS COMPLIANT

K. MORRISON

DWG SIZE:

DO NOT

SCALE

DRAWING

K. LAMBIE

NOV10/22

OCT13/22

NOV10/22

03554

2:1

X

EAR 14988

DRAWN

CHECKED

M.E. APP'D

Q.A. APP'D

DWG APPR.

ENG. REL. NO.

REF.

THIRD

ANGLE

PROJECTION

MILLIMETRES

INCHES

PRIMARY UNITS

SECONDARY

REFERENCE IN PARENTHESES

UNLESS SPECIFIED OTHERWISE

0.30

GENERAL TOLERANCES

K. LAMBIE

1 DECIMAL PLACE

2 DECIMAL PLACES

3 DECIMAL PLACES

ANGULAR DEGREES

PRODUCT DRAWING (EAR 14988)

K.L.

NOV10/22

A

STEP 7

SCREW ENDCAP UNTIL HAND TIGHT

STEP 9

PUSH THE HOOD LOCK FORWARD

UNTIL HOOD ASSEMBLY SNAPS INTO POSITION.

TO UN-MATE, PULL THE HOOD LOCK BACKWARD

BEFORE PULLING ON THE HOOD / PLUG

STEP 6

SLIDE THE END CAP ONTO

THE HOOD BODY

INSERT RJ HOOD ASSEMBLY

INTO BULKHEAD

STEP 8

BULKHEAD

STEP 3

SNAP THE TOP AND BOTTOM PLUG COVERS

ONTO THE PLUG CONNECTOR

STEP 4

SLIDE THE HOOD BODY ONTO THE

PLUG COVER ASSEMBLY UNTIL THE TOP AND

BOTTOM LATCHES SNAP INTO PLACE.

CONFIRM THAT THE PLUG LATCH IS AT THE

BOTTOM AND THE HOOD LATCH IS AT THE TOP.

STEP 5

SLIDE THE RUBBER GROMMET ALONG

THE CABLE INTO THE HOOD BODY UNTIL

INSTALLED TO FULL DEPTH

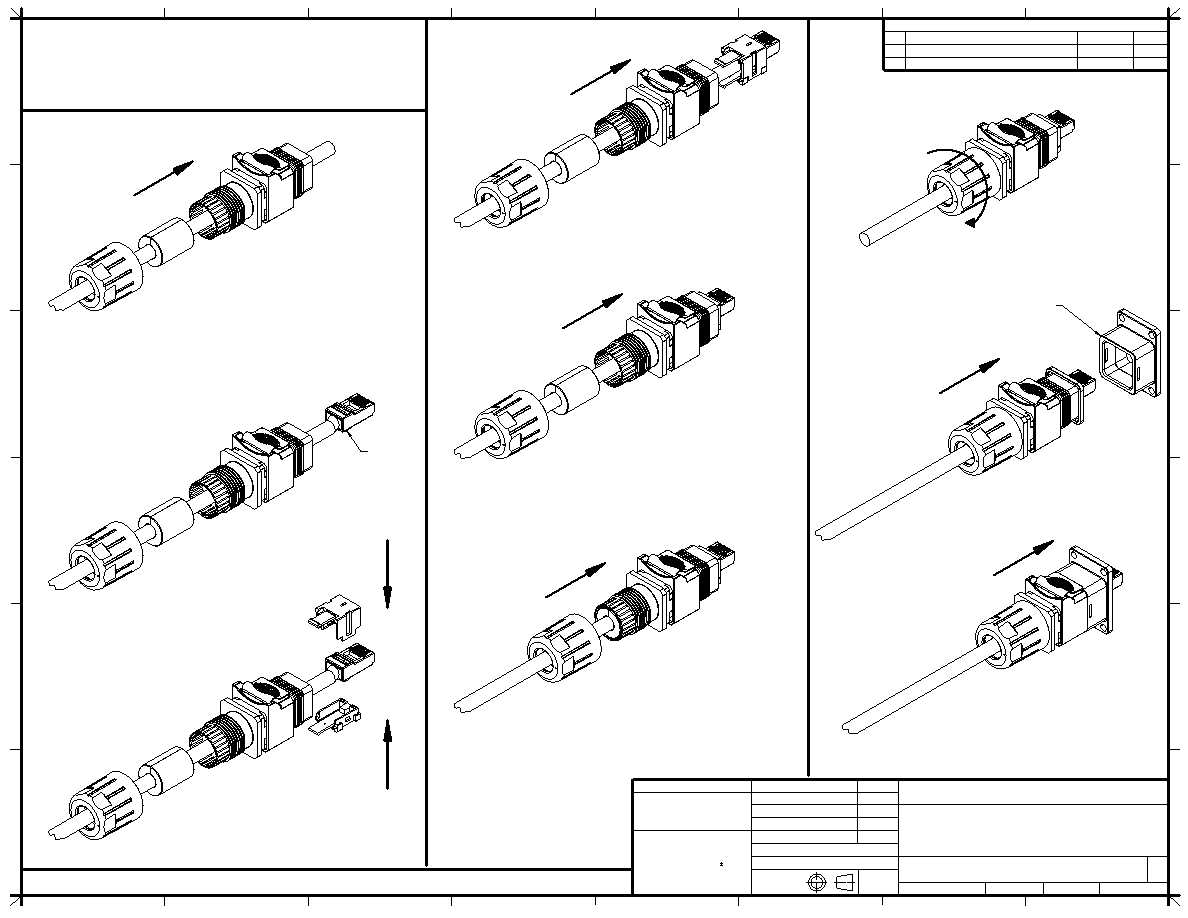

FIELD ASSEMBLY

PROCEDURE

CA

BL

E

STEP 1

SLIDE HOOD KIT COMPONENTS

(EXCLUDING TOP AND BOTTOM PLUG COVERS)

ONTO CABLE PRIOR TO PLUG INSTALLATION

ASSEMBLE PLUG CONNECTOR

TO CABLE

STEP 2

PLUG

LATCH

THIS

SIDE
