2

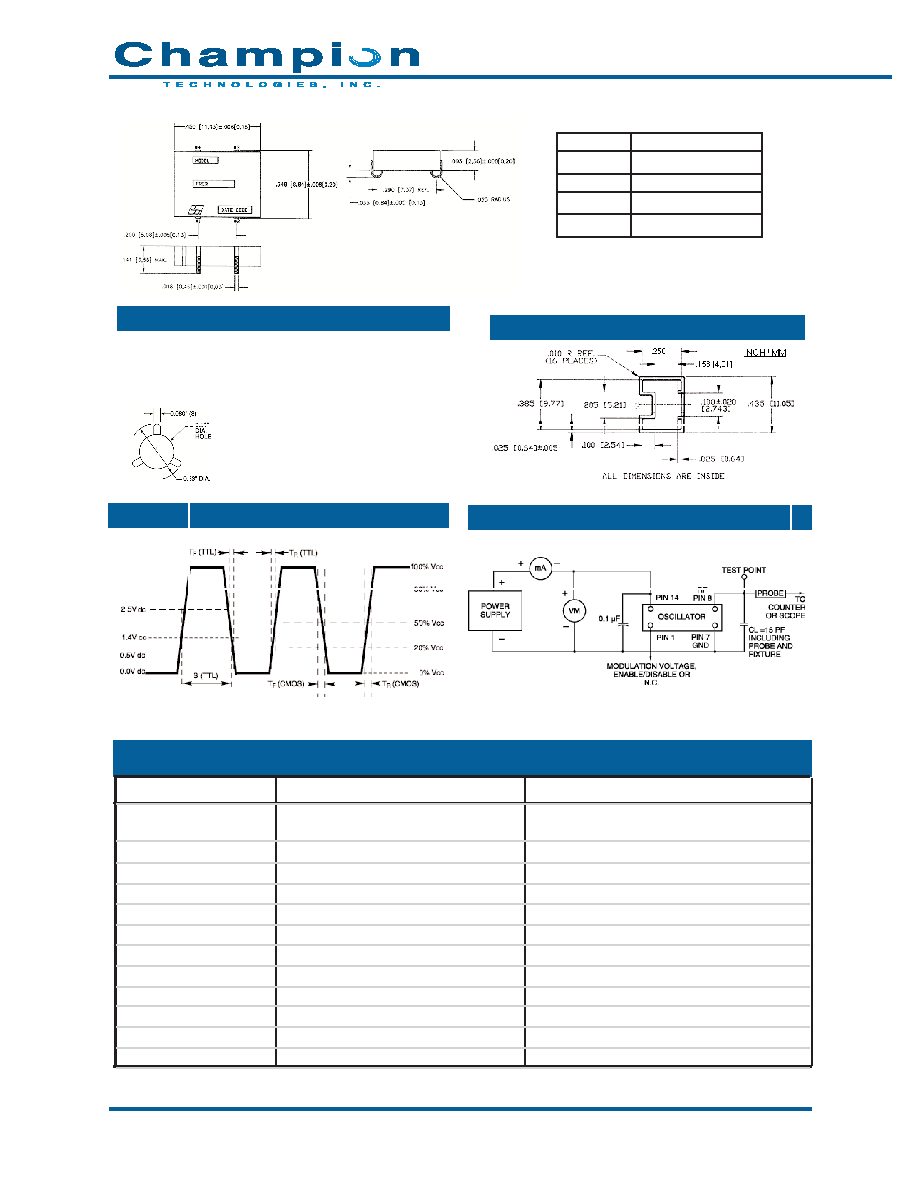

OUTPUT WAVEFORM

TEST CIRCUIT DIAGRAM

PIN

FUNCTION

Enable/Disable

1

2

Ground

3

Output

MSO2 Series

5V 9x11mm Surface Mount Crystal Clock Oscillators

TEST METHODS

REFERENCE PROCEDURES

DESCRIPTION

Temperature Cycle

MIL-STD-833, Mtd 1010, Cond. B

Mechanical Shock

MIL-STD-883, Mtd 2002, Cond. B

-55°C to +125°C; Air-to-Air; 100 cycles; 10

min. dwell

Vibration

MIL-STD 883, Mtd 2007, Cond. B

20-2000 Hz; 0.06 inch; 15g’s; 3 planes

Humidity Steady State

MIL-STD-202, Mtd 103

40°C; 90%-95% R.H.; 56 days

Thermal Shock

MIL-STD-883, Mtd 1011.7 Cond. B

Electrostatic Discharge

Solderability

Hermeticity

Resistance to Soldering

Lead Integrity

Marking Permanence

Life Test

100°C to 0°C; Water-to-Water; 15 cycles

2 KV to 4 KV Threshold

Solder dip; Meniscograph Criteria

Mass spectro. 2 x 10-8 atmos. CC/sec He

235°C; 30 seconds

Lead tension & bend stress

Resistance to solvents

1500 g’s

MIL-STD-883, Mtd 3015 Class II

MIL-STD-883, Mtd 1005.6

MIL-STD-883, Mtd 2022.2

MIL-STD-883, Mtd 1014.8, Cond. A1

MIL-STD-202, Mtd 210D, Cond. J

MIL-STD-883, Mtd 2004.5, Cond. A, B1

MIL-STD-883, Mtd 2015.8

MECHANICAL AND ENVIRONMENTAL SPECIFICATIONS

SHIPPING TUBE CROSS SECTION

Tape & Reel

Shipping Tape

Size: 24mm

Material: Black PVC,

Conductive .012” thick

Shipping Reel

Size: 13” diameter

Material: Plastic

13” Reel

Tape Length 16.5 yds

Max. No. of Pockets:750

Leader Length: 16” min.

Trailer Length: 14” min.

Q.C. Sample Quantity: 10 pcs.

Product/Reel: 500

Cover Tape Thickness: .002”

Cover Peel Strength: 75g

Note: Minimum Order is 500

TAPE & REEL SPECIFICATIONS

4

+ VCC

OBSOLETE
