ADT7482

Rev. 0 | Page 21 of 24

THERM2 LIMIT

THERM LIMIT

THERM2

TEMPERATURE

THERM

90°C

80°C

70°C

60°C

50°C

40°C

30°C

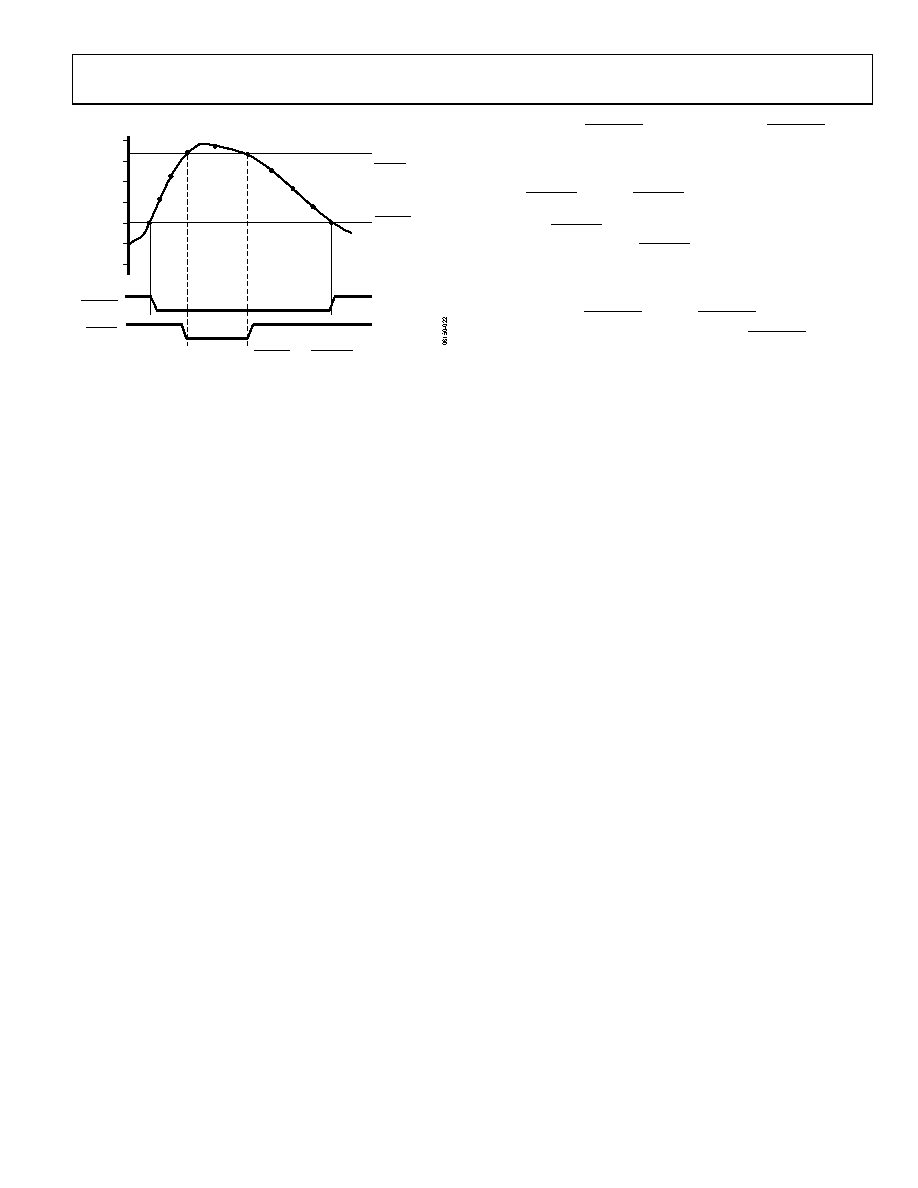

Figure 22. Operation of the THERM and THERM2 Interrupts

When the THERM2 limit is exceeded, the THERM2 signal

asserts low.

If the temperature continues to increase and exceeds the

THERM limit, the THERM output asserts low.

The THERM output de-asserts (goes high) when the

temperature falls to THERM limit minus hysteresis. In

Figure 22, there is no hysteresis value shown.

As the system cools further, and the temperature falls

below the THERM2 limit, the THERM2 signal resets.

Again, no hysteresis value is shown for THERM2.

The temperature measurement could be either the local or the

remote temperature measurement.
