CS5160
http://onsemi.com
16
ADDITIONAL APPLICATION DIAGRAMS
VID0
VID1
VID2
VID3
VID4
COMP
VFFB
VFB
VGATE(H)
VGATE(L)
VCC2
VCC1
VID0
VID1
VID2
VID3
VID4
PGnd
SS
COFF
CS5160
MBRS140T3
5.0 V
680 pF
0.1 μF
LGnd
1200 μF/10 V × 6.0
1.0 μH
SILICONIX
1.0 μF
00.1 μF
100
10 k
500 k
SILICONIX
SUD50NO3−10P
SUD50NO3−07
0.1 μF
0.1 μF
12 V
1.8 μH
VOUT
Sanyo GX
1200 μF/10 V × 8.0
Sanyo GX
COMP
VFFB
VFB
VGATE(H)
VGATE(L)
VCC2
VCC1
VID0
VID1
VID2
VID3
VID4
PGnd
SS
COFF
CS5160
MBRS140T3
3.3 V
330 pF
0.33 μF
LGnd
33 μF/25 V × 3.0
5.0 μH
Si9410
1.0 μF
3.3 k
0.1 μF
100 pF
12 V
2.5 V/7.0 A
100 μF/10 V × 2.0
Tantalum
Si9410
Tantalum

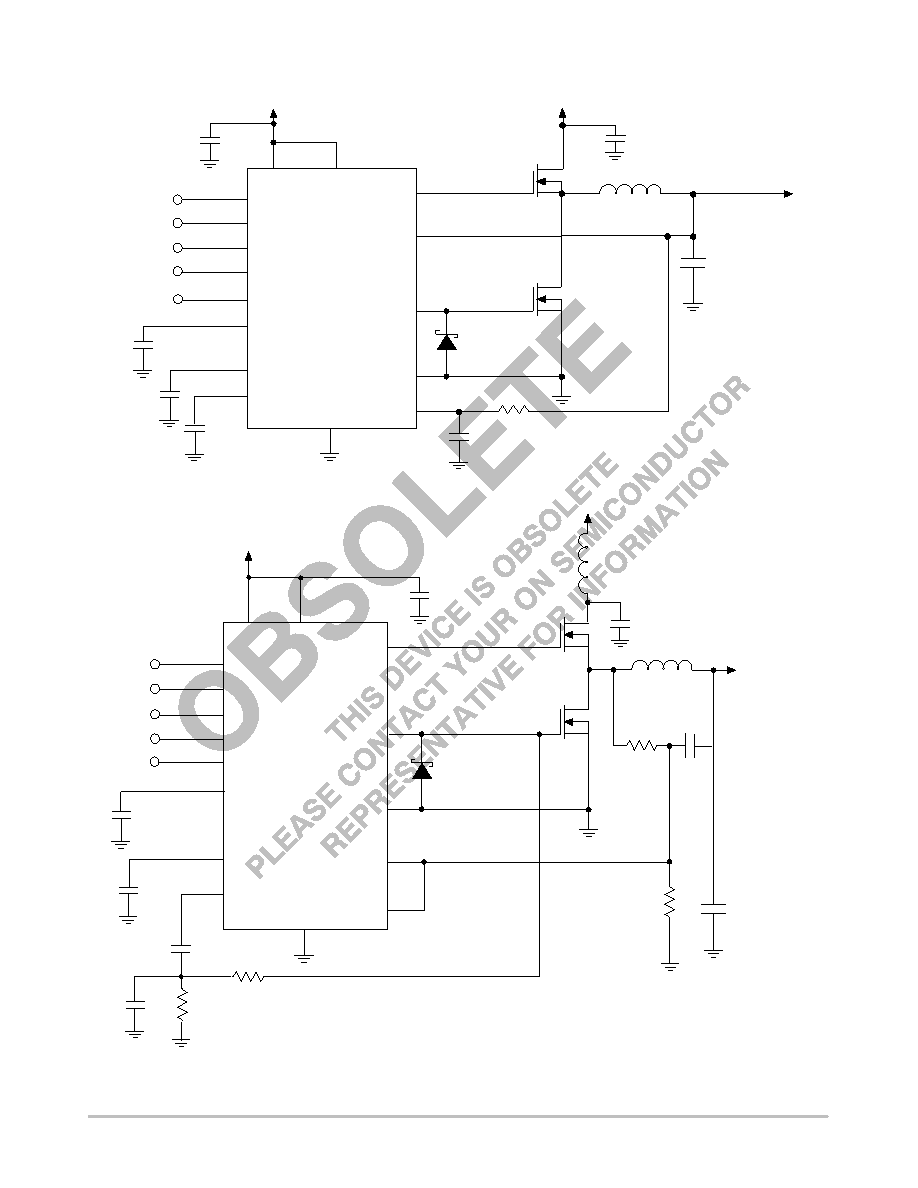

Figure 24. 3.3 V to 2.5 V/7.0 A Converter with 12 V Bias
Figure 25. Pentium®III Converter with Slope Compensation and Adaptive Voltage Positioning
10 k
30 nF
