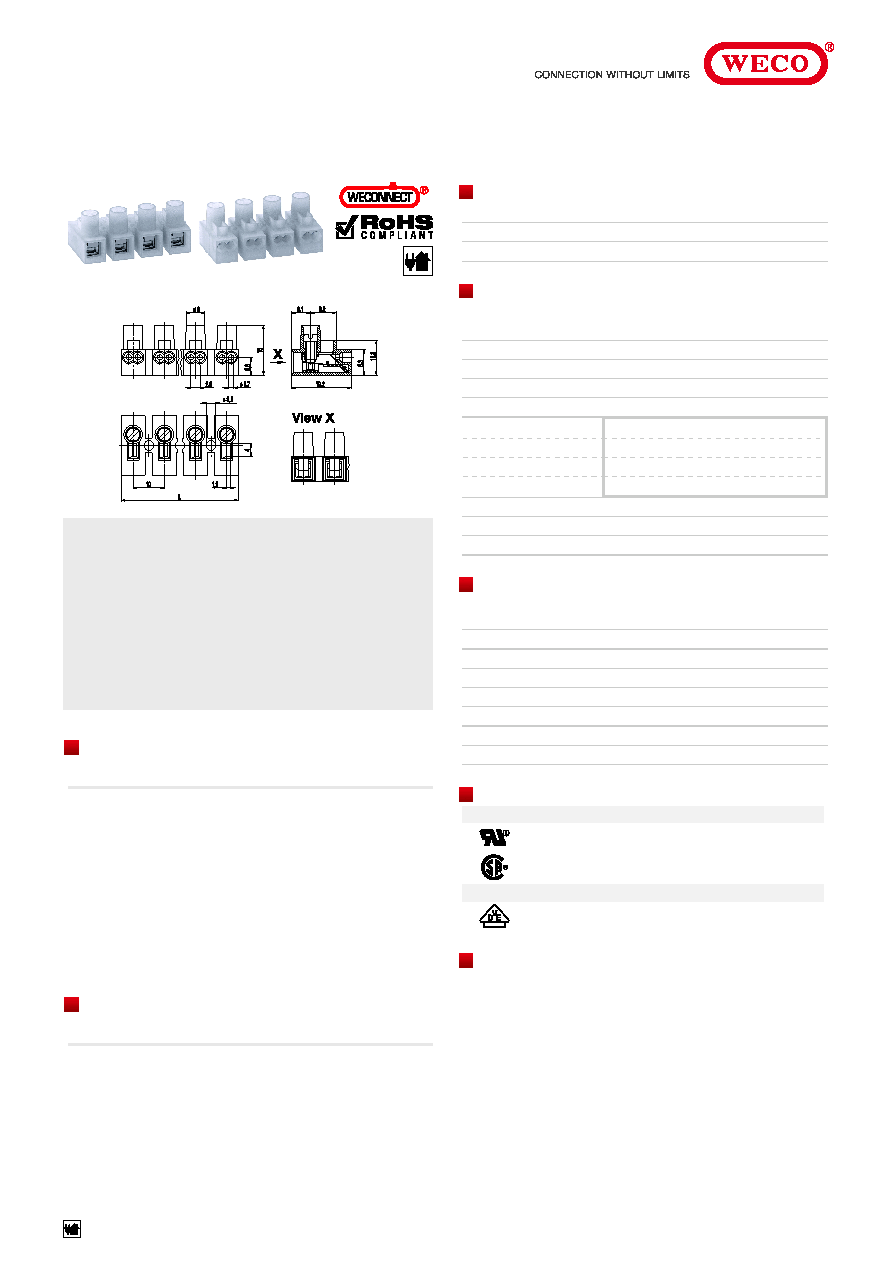

820(-DS)

Screw/plug-in terminal strip

Screw/screwless connection

01.18

WECO | www.wecogroup.com

''no flame'' after glow-wire test according to

Household Appliance DIN EN/IEC 60335-1

The terminal strip 820 with pitch 10 mm has a dual wire terminal connector on one

side. Here, the leads are inserted and clamped all the way to the stop. These

terminal strips are designed for solid conductors.

The opposite side is equipped with screw connections with rectangular clamping

spaces. The screws are ready to be wired, secured against self-loosening and

captive.

The wire protector of the “DS”-version reliably prevents damage to multi-wire

flexible conductors by the turning screw.

These terminals strips can be screw-mounted on a substrate.

Note: For the version without wire protector, flexible wires can only be connected

with a ferrule.

Part Numbers

No. of

poles

820

820-DS

Length

PU

1

11.815.202

31.815.202

8,50

4000

2

12.815.202

32.815.202

18,50

2000

3

13.815.202

33.815.202

28,50

1000

4

14.815.202

34.815.202

38,50

800

5

15.815.202

35.815.202

48,50

500

6

16.815.202

36.815.202

58,50

200

7

17.815.202

37.815.202

68,50

200

8

18.815.202

38.815.202

78,50

100

9

19.815.202

39.815.202

88,50

100

10

20.815.202

40.815.202

98,50

50

11

21.815.202

41.815.202

108,50

50

12

22.815.202

42.815.202

117,50

50

Part Numbers: "no flame" acc. to glow-wire test

No. of

poles

820

820-DS

Length

PU

2

32.815.202.EN6

18,50

2000

3

33.815.202.EN6

28,50

1000

4

34.815.202.EN6

38,50

800

6

36.815.202.EN6

58,50

200

7

37.815.202.EN6

68,50

200

8

38.815.202.EN6

78,50

100

12

42.815.202.EN6

117,50

50

further number of poles on request

General Information

Pitch

10 mm

No. of poles

1 - 12

Areas of application

Terminal for the quick connection of solid wires.

Technical Data

Clamping Range

solid / flexible / AWG

0,75 - 1,5 mm² / --- / 18 - 16 AWG [1]

without wire protector

0,75 - 6 mm² / 0,75 - 2,5 mm² / 18 - 12 AWG [2]

with wire protector

0,75 - 6 mm² / 0,75 - 2,5 mm² / 18 - 12 AWG [2]

Rated Cross Section

[1] 1,5 mm² / [2] 2,5 mm²

Wire Stripping Length

7 mm ± 0,5 mm

Overvoltage Category

3

2

2

Pollution Severity Level

III

III

II

Rated Voltage

320 V

320 V

630 V

Rated Impulse Voltage

4 kV

4 kV

4 kV

Rated Insulation Voltage

450 V acc. to EN 60998-1

Rated Current

[1] 17,5 A / [2] 24 A

Torque

0,8 Nm

Material

Moulding

PA, natural, V-2 (PA, white, V-0)

Details in brackets apply for "no flame" products

Comparative Tracking Index

CTI ≥ 600

Insulating Group

I

Temperature Range

-40°C up to 100°C

Terminal Body

Tin plated brass

Screw

M3,5; zinc plated steel, blue passivated

Wire protector

Stainless steel strip

Spring

Stainless steel strip

Approvals

Current [A]

Voltage [V]

Group

AWG

[Nm]

10

10

300

150

B

C

16-10 [3]

16-10 [3]

0,51

0,51

10

10

300

150

B,D

C

20-10 [3]

20-10 [3]

0,51

0,51

Current [A]

Voltage [V]

[mm²]

24

450

2,5/1,5

Options / Accessories

• Consecutive numbering

• Special marking according to drawing

• Self-adhesive marking strip BST-10,00

• Version with dovetail base (type 821)

[1] Plug connector

[2] Screw connector

[3] spring side 18 - 16 AWG solid
