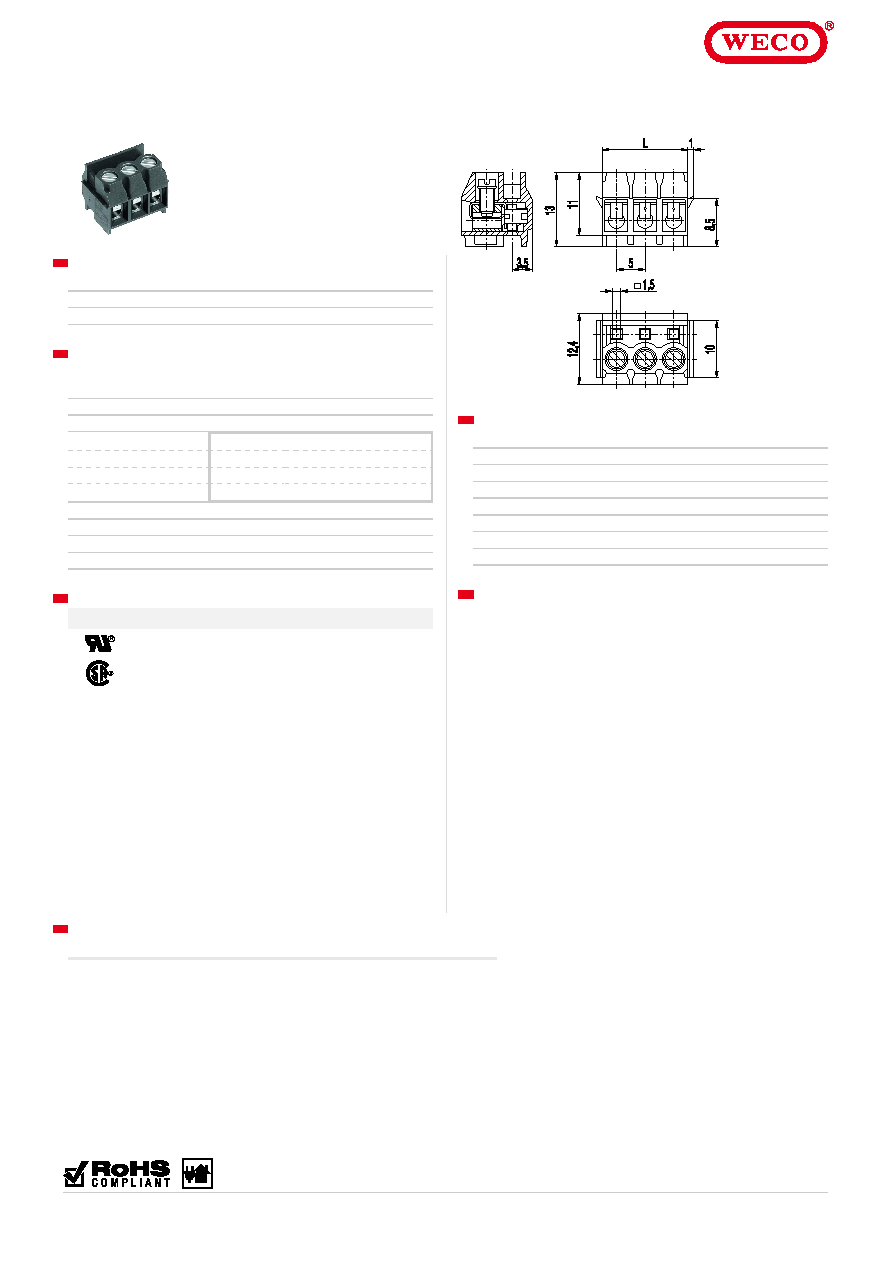

TECHNICAL DATA SHEET

950-RFL-DS

Plug connector

Screw connection, with locking device on the sides

05.11

MATERIAL

Moulding

PA, grey, V-0

Comparative Tracking Index

CTI ≥ 600

Insulating Group

I

Temperature Range

-40°C up to 100°C

Terminal body

Nickel plated brass

Screw

M2,6; zinc plated steel, blue passivated

Wire protector

Tin plated tin bronze

Spring

Tin plated tin bronze

OPTIONS / ACCESSORIES

• Consecutive numbering

• Special marking according to drawing

• Self-adhesive marking strip BST-5,00

• Pitch of 10 mm for larger clearance and creepage distances

CONFIGURATIONS

Poles Part number

Article number

Length (L)

Packaging

PU

2 950-RFL-DS/02

20.871.760

10,00 mm

Box

250

3 950-RFL-DS/03

20.871.758

15,00 mm

Box

250

4 950-RFL-DS/04

20.871.762

20,00 mm

Box

250

5 950-RFL-DS/05

20.871.763

25,00 mm

Box

100

6 950-RFL-DS/06

20.871.756

30,00 mm

Box

100

GENERAL INFORMATION

Pitch

5 mm

No. of poles

2 - 12

Usable with

pin strips of series 971

TECHNICAL DATA

Clamping Range

solid / stranded / AWG

0,34 - 2,5 mm² / 0,34 - 1,5 mm² / 22 - 14 AWG

Rated Cross Section

1,5 mm²

Wire Stripping Length

6 mm ± 0,5 mm

Overvoltage Category

III

III

II

Pollution Severity Level

3

2

2

Rated Voltage

320 V

320 V

630 V

Rated Impulse Voltage

4 kV

4 kV

4 kV

Rated Insulation Voltage

250 V acc. to EN 60998-1

Rated Current

6 A

Torque

0,4 Nm

Other specifications

By use with pins LST-1,3: III-3-160V-2,5 kV

APPROVALS

Current [A]

Voltage [V]

Group

AWG

[Nm]

10

300

B

26 - 14

0,4

10

300

B

26 - 14

0,4
