AD8617ARMZ-R2 数据表(PDF) 7 Page - Analog Devices

部件名 AD8617ARMZ-R2
功能描述  Low Cost Micropower, Low Noise CMOS Rail-to- Rail, Input/Output Operational Amplifiers
PDF  16 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  AD [Analog Devices]
网页  http://www.analog.com
标志 AD - Analog Devices

AD8617ARMZ-R2 数据表(HTML) 7 Page - Analog Devices

Back Button AD8617ARMZ-R2 Datasheet HTML 3Page - Analog Devices AD8617ARMZ-R2 Datasheet HTML 4Page - Analog Devices AD8617ARMZ-R2 Datasheet HTML 5Page - Analog Devices AD8617ARMZ-R2 Datasheet HTML 6Page - Analog Devices AD8617ARMZ-R2 Datasheet HTML 7Page - Analog Devices AD8617ARMZ-R2 Datasheet HTML 8Page - Analog Devices AD8617ARMZ-R2 Datasheet HTML 9Page - Analog Devices AD8617ARMZ-R2 Datasheet HTML 10Page - Analog Devices AD8617ARMZ-R2 Datasheet HTML 11Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 7 / 16 page
background image

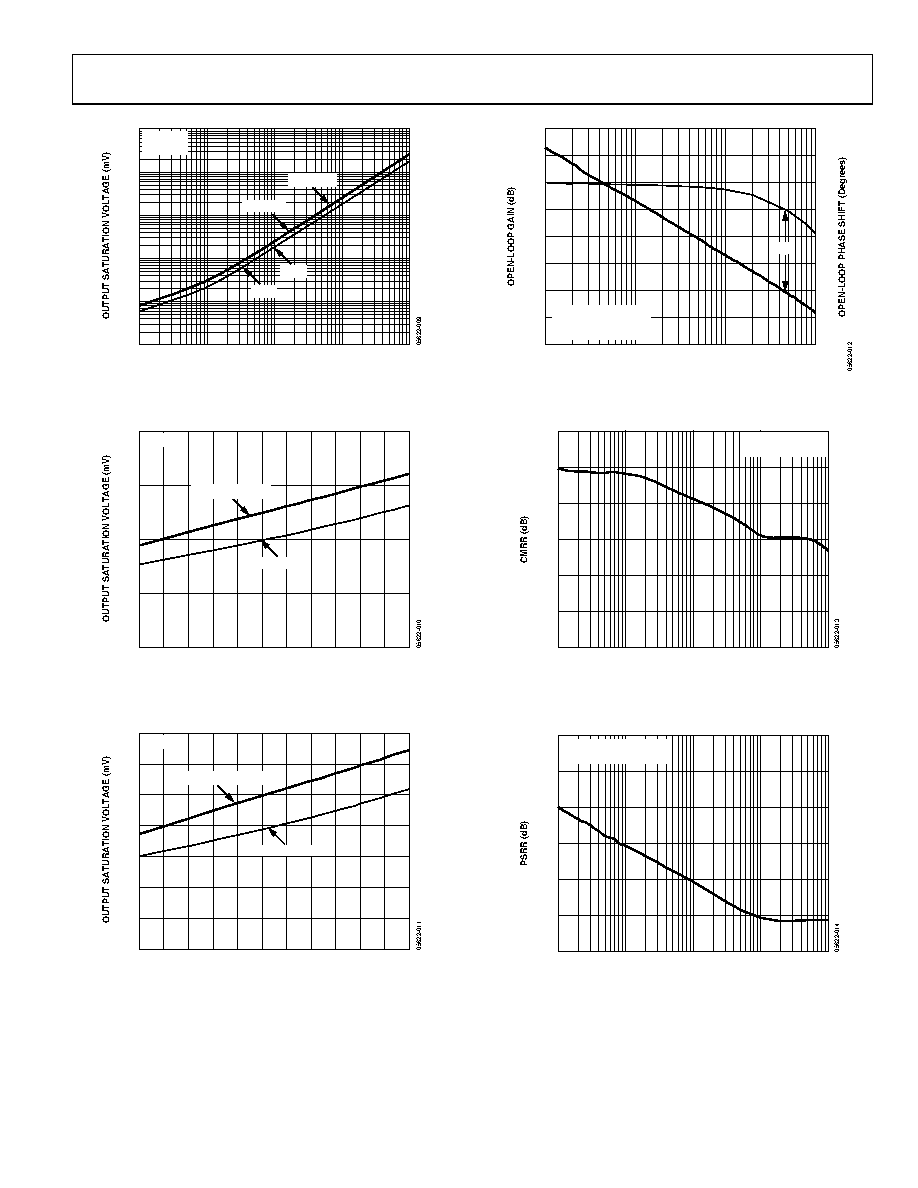

AD8613/AD8617/AD8619
Rev. B | Page 7 of 16
1k
0.01
0.001
10
LOAD CURRENT (mA)
0.01
0.1
1
0.1
1
10
100
VSY = 5V
TA = 25ºC
SOURCE
VSY – VOH
SINK
VOL
Figure 12. Output Saturation Voltage vs. Load Current
40
0
–40
125
TEMPERATURE (°C)
30
20
10
–25
–105
203550658095
110
VSY = 5V
VSY – VOH @ 1mA
VOL @ 1mA
Figure 13. Output Saturation Voltage vs. Temperature
(IL = 1 mA)
350
0
–40
125
TEMPERATURE (°C)
–25
–105
203550658095
110
VSY = 5V
VOL @ 10mA
300
250
200
150
100
50
VDD – VOH @ 10mA
Figure 14. Output Saturation Voltage vs. Temperature
(IL = 10 mA)
60
–20
1k
1M
FREQUENCY (Hz)
–45
0
45
90
135
10k
100k
50
40
30
20
10
0
–10
VSY = ±2.5V AND ±0.9V
RL = 100kΩ
CL = 20pF
φ
M
Figure 15. Open-Loop Gain and Phase vs. Frequency
120
0
100
1M
FREQUENCY (Hz)
1k
10k
100
80
60
40
20
100k
VSY = 5V AND 2.7V
TA = 25°C
Figure 16. CMRR vs. Frequency
120
0
100
1M
FREQUENCY (Hz)
1k
10k
100k
100
80
60
40
20
VSY = ±2.5V AND ±1.35V
TA = 25°C
Figure 17. PSRR vs. Frequency
