TMPIC252012F

3981 E. Miraloma Ave. Anaheim, CA 92806 USA

Tel: 714-528-8000

www.transko.com

sales@transko.com

Rev 1: 02-04-2020

Power Inductor SMD (2.5 X 2.0 X 1.2 mm)

FEATURES

•

Shielded construction

•

Alloy powder molding

•

Halogen Free RoHS compliant

SPECIFICATION

DC Resistance

DC Current (A) Typ.

SRF

Q

Part No.

Inductance (μH)

Tolerance (%)

mΩ Max

TMPIC252012F-R22M

0.22

±20

13

7.00

8.00

30

TMPIC252012F-R33M

0.33

±20

17

4.30

5.60

30

TMPIC252012F-R47M

0.47

±20

25

3.80

4.50

30

TMPIC252012F-R68M

0.68

±20

43

3.00

4.00

30

TMPIC252012F-1R0M

1.0

±20

53

2.80

3.10

30

TMPIC252012F-1R5M

1.5

±20

70

2.61

2.43

10

30

TMPIC252012F-2R2M

2.2

±20

98

1.80

2.30

10

30

•

Measurement frequency of Inductance value : at 1MHz, 1V

•

Test equipment: CH3302 / CH1320

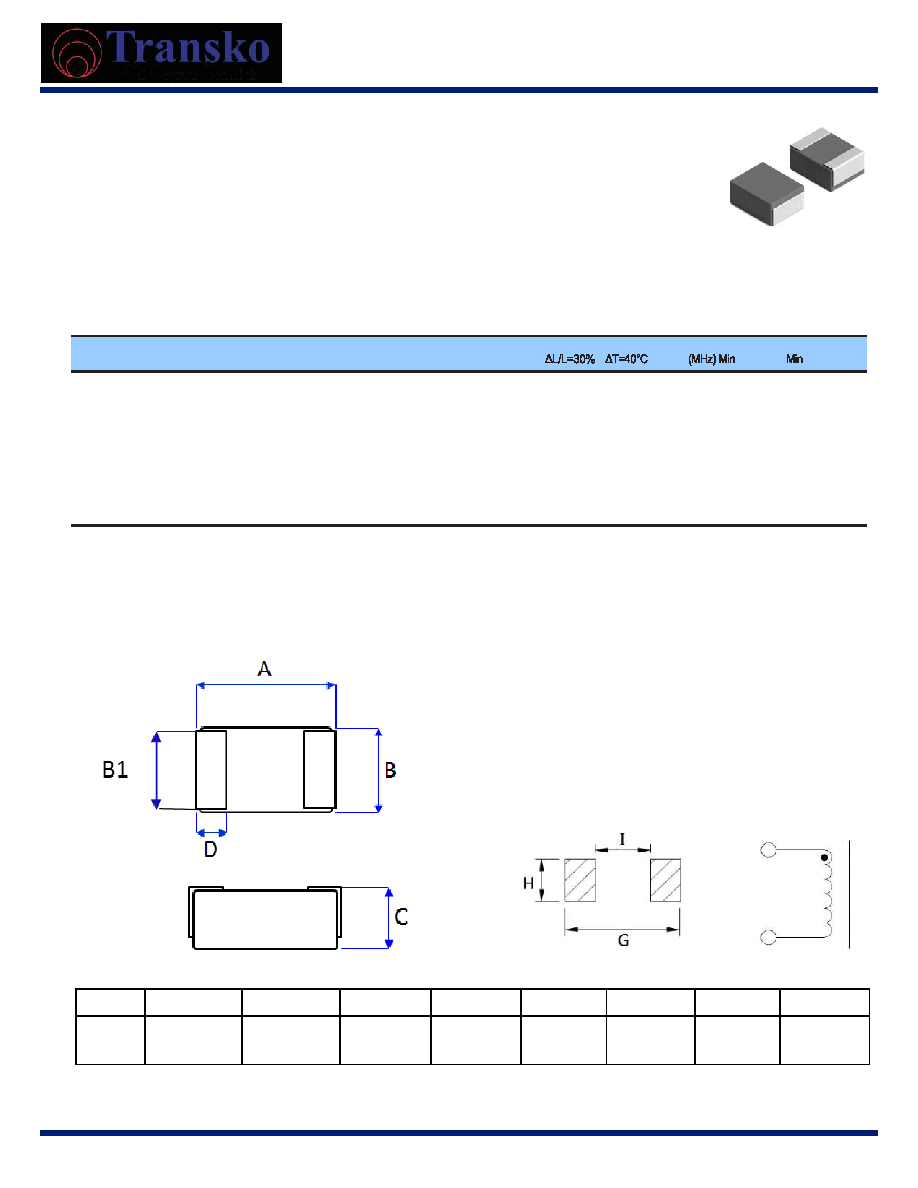

DIMENSION

SOLDER PATTERN

SCHEMATIC

A

B

B1

C

D

G

H

I

2.5 ±0.2

2.0 ±0.2

1.84 ±0.2

1.20MAX

0.6 ±0.3

2.90

2.1

1.2

mm
