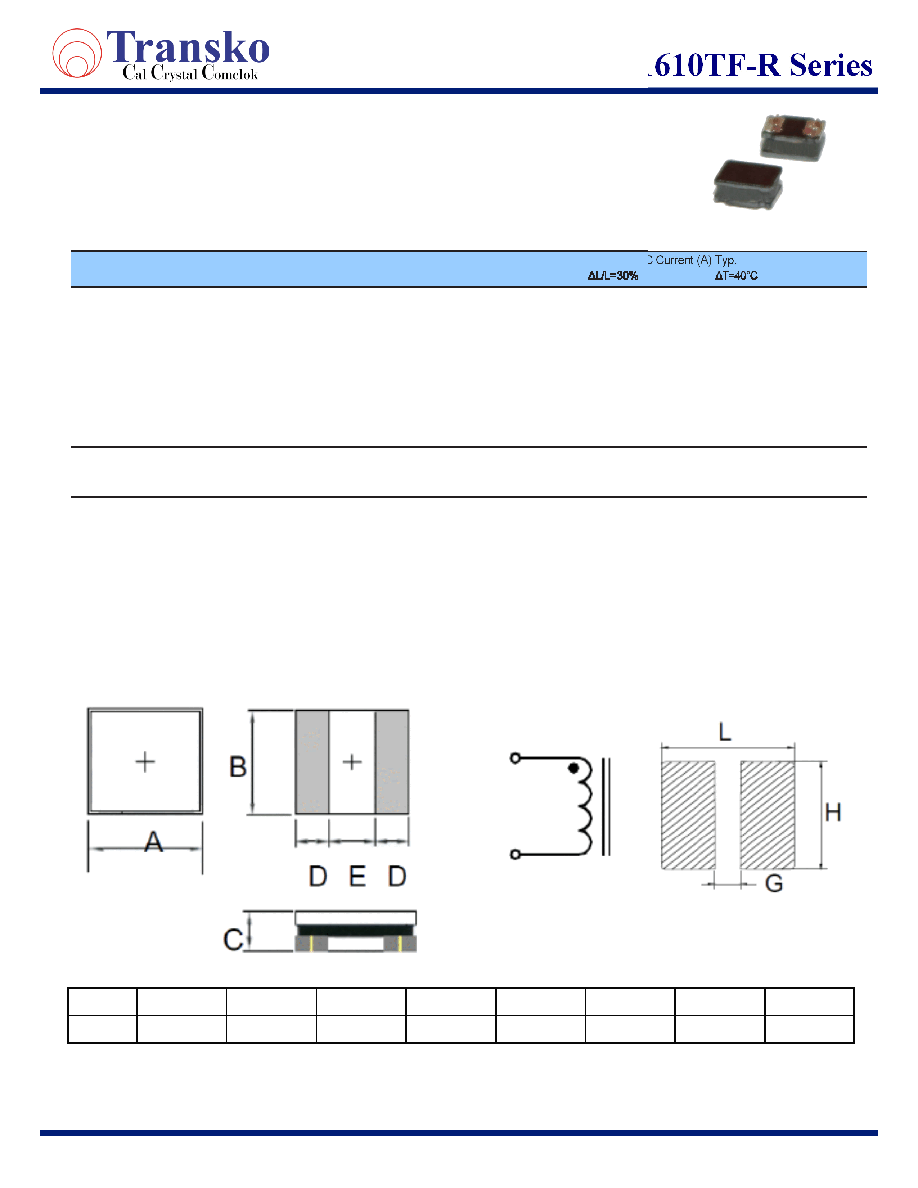

TPQH201610TF-R Series

3981 E. Miraloma Ave. Anaheim, CA 92806 USA

Tel: 714-528-8000

www.transko.com

sales@transko.com

Rev 1: 09-18-2018

Power Inductor SMD (2.0 X 1.6 X 1.0 mm)

FEATURES

•

Miniature Package

•

Low DCR

•

Low Profile

•

Halogen Free RoHS compliant

SPECIFICATION

TPQH201610TF-R24M-R

0.24 ±20%

0.030

4.10

3.90

TPQH201610TF-R47M-R

0.47 ±20%

0.042

3.10

3.00

TPQH201610TF-1R0M-R

1.0 ±20%

0.079

2.10

2.00

TPQH201610TF-1R5M-R

1.5 ±20%

0.140

1.90

1.65

TPQH201610TF-2R2M-R

2.2 ±20%

0.180

1.45

1.50

TPQH201610TF-4R7M-R

4.7 ±20%

0.400

0.90

TPQH201610TF-100M-R

10 ±20%

0.600

0.70

DC Resistance

Rated DC Current (A) Typ.

Part No.

Inductance (µH)

(Ω ±20%)

•

Measurement frequency of Inductance value : 1MHz, 1V

•

Test Equipment: CH1062A; CH1320

A

B

C

D

E

G

H

L

2.00 ±0.30

1.60 ±0.30

1.00 Max

0.60 Ref

0.80 Ref

0.70 Ref

2.00 Ref

2.30 Ref

mm

DIMENSION

SOLDER PATTERN

SCHEMATIC
