TL062
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
6 of 8
www.unisonic.com.tw
QW-R105-003,,B
■

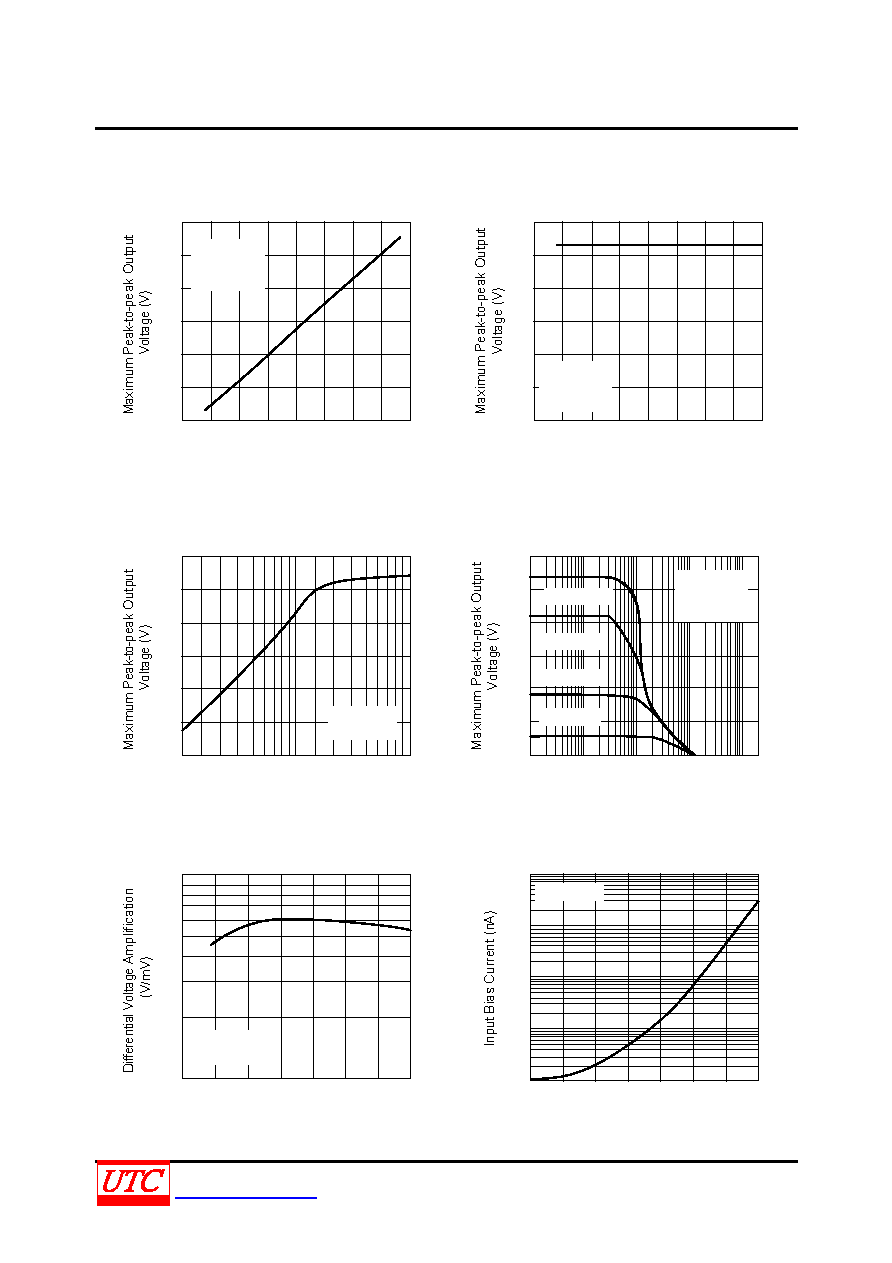

TYPICAL CHARACTERISTICS
Maximum Peak-to-Peak Output
Voltage vs. Supply Voltage
Supply Voltage(V)
RL = 10kΩ
Ta = +25℃
See figure 2
30
2
20
10
5
15
25
4
6
8
1012 1416
0
Maximum Peak-to-Peak Output
Voltage vs. Free Air Temp.
Free Air Temperature (℃)
VCC = ±15V
RL = 10kΩ
See figure 2
30
-50
20
10
5
15
25
-25 0
25 50 75 100 125
0
-75
Maximum Peak-to-Peak Output
Voltage vs. Load Resistance
Load Resistance(kΩ)
30
200
20
10
5
15
25
400 700 1k 2k
4k
7k 10k
0
Maximum Peak-to-Peak Output
Voltage vs. Frequency
Frequency (Hz)
30
20
10
5
15
25
10k
100k
1M
10M
0
1k
VCC = ±15V
Ta = +25℃
100
VCC = ±15V
RL = 10kΩ
Ta = +25℃
See figure 2
VCC = ±12V
VCC = ±2V
VCC = ±5V
Differential Voltage Amplification
vs. Free Air Temperature
Free Air Temperature (℃)
10
4
2
7
1
VCC = ±15V
RL = 10kΩ
-50 -25 0
25 50 75 100 125
-75
Input Bias Current vs. Free Air
Temperature
Free Air Temperature (℃)
100
10
0.1
25
50
100 125
0.01
0
-25
-50
75
VCC = ±15V
1
